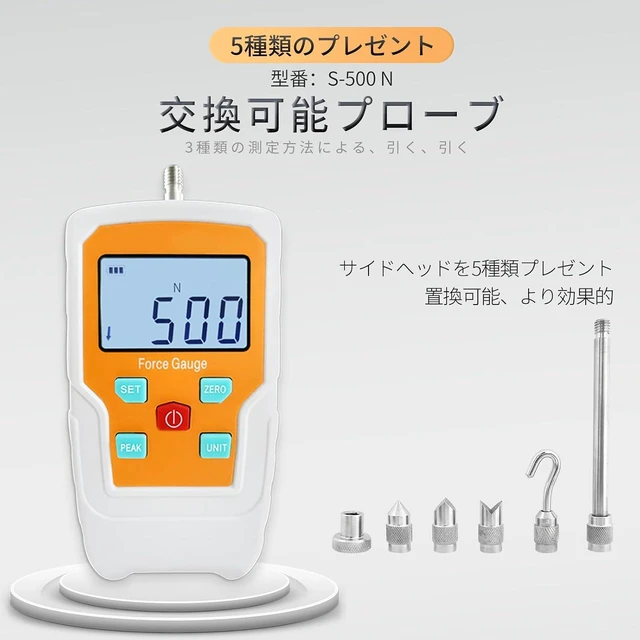

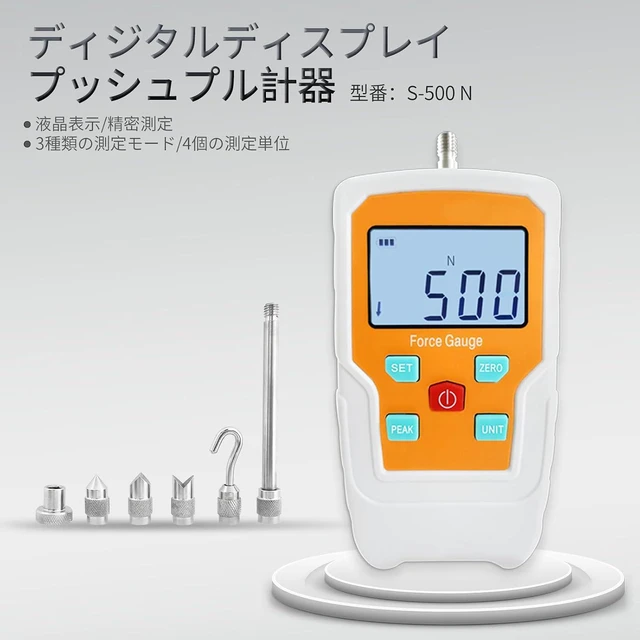

Digital Electronic Pull Gauge Tester 110LB/500N Force Gauge Push-Pull Meter Tension Compression Pressure Testing Thrust Meter Peak Mode with 6 Kinds of Probe and Extension Rod (110LB 500N)

[Buzzer alarm]Upper and lower limits can be set for statistic analysis. The buzzer will alarm if exceeding the limits.
[Minimum force value shielding] the data within the set minimum range can be shielded.

Overview
Digital display push-pull force meter is a small, simple, multi- functional and high-precision push and pull test instrument, which is widely used in electronic appliances, construction hardware, light industrial textiles, auto parts, lighters and other ignition devices, fire equipment, pen making Push-pull load, insertion force test, destructive test of locks, fishing gear, chemical industry, power machinery, scientific research institutions and other industries. The digital display has high resolution, fast sampling speed, and easy to use. It is a new generation of high-efficiency and high-precision push-pull test instrument.
Features
High precision and high resolution;
Three measurement mode for selection (Real timePeak First peak);

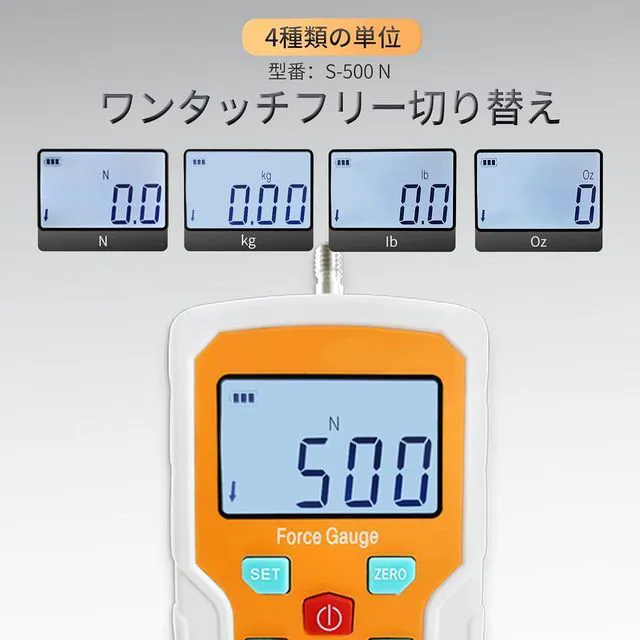

N (Newton), Kg (Kilogram), Lb (Pound) and Oz (Ounce) four units for selection and conversion.
Setting function of gravity aceleration--User can input at your option the accurate value of gravity acceleration at the using place so as to make the testing and unit conversion be more accurate.
Upper and lower limits can be set for statistic analysis. The buzzer will alarm if exeeding the limits.
Minimum force value shielding function: the data within the set minimum range can be shielded;
Automatic shutdown function: The automatic shutdown time can be set, and the automatic shutdown can achieve a point saving effect when there is no operation for a long time.
Power: 2pcs AAA battery( 1.5V *2)
Automatic backlight, buzzer alarm function

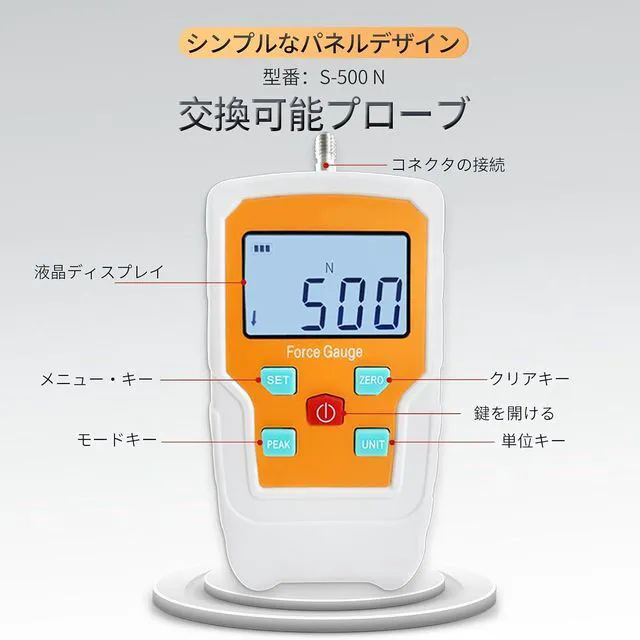

Model S-500N
Maximum load value 500N, 50kg, 110Lb, 1800Oz
Load division value 0.1N / 0.01 kg/ 0.1L b/1Oz
Sensor structure Inner sensor
Accuracy +/-1%(10%~100% of full scale)
Power 2 AAA batteries 1.5V
Working temperature 5~35
Transport temperature -10~60
Relative humidity 15%~80%RH
Working conditions No vibration source around and no corrosive environment
Dimensions 124*60"31 (mm)
Net weight about 0.4 kg

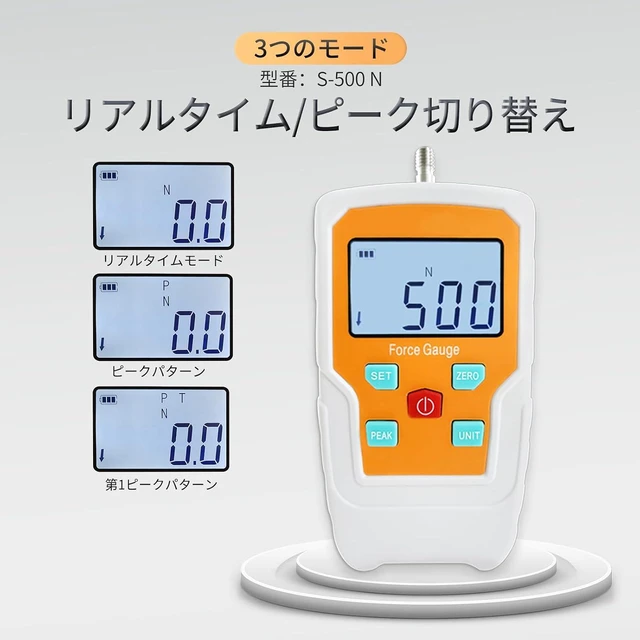

Real-time mode
Turn on the measurement interface, the system defaults to real-time measurement mode, and no mode is displayed on the screen. In this mode,
the displayed measured value will change along with the load.
Peak mode
Press thePEAK" key, and the wordPdisplayed on the screen is the peak mode. In this mode, the displayed measurement value is the maximum value. (When measuring again, if the measured value is lower than the previous maximum value, the displayed measured value will not change; if the measured value is higher than the previous maximum value, the displayed measured value will update and change. )
First peak mode
Press thePEAK" key, and the wordsPandT are displayed on the screen at the same time is the first peak mode. In this mode, the instrument only displays the first peak value measured in a period of time, and lhe measured value will nol be displayed again. If lhere is a change; press theZERO"key to clear it before testing again.
