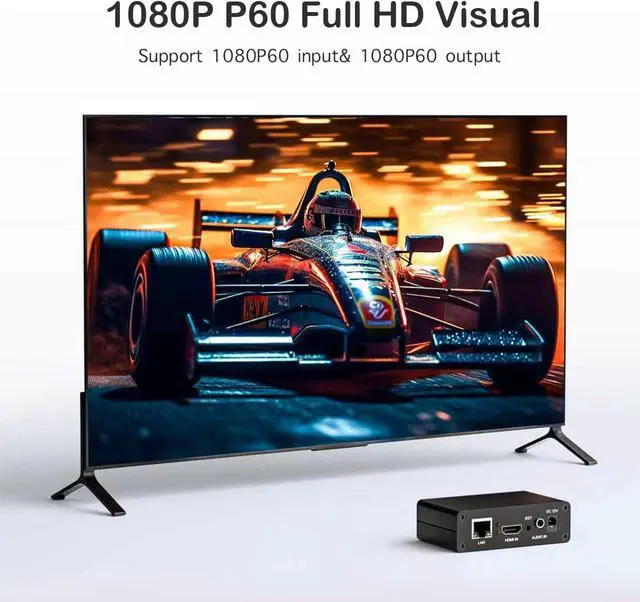

1080P60 HDMI Video Encoder, H.265/H.264 Hardware Encoding with SRT,RTMP,RTSP,RTMPS,UDP,HTTP,HLS,WebRTC,TRTC,Icecast,SHOUTcast, IP Video Distribution for Live Broadcast
- Hardware H.265/H.264 Encoding at 1080P60Dedicated hardware encoder delivers broadcast-quality 1080P60 streams with H.265/H.264 compression. Reduces bandwidth usage by up to 50% compared to legacy H.264-only solutions, while maintaining crisp, crystal-clear video output.
- Broad Protocol Support for IP DistributionEquipped with SRT,RTMP,RTSP,RTMPS,UDP,HTTP,HLS,WebRTC,TRTC,Icecast,SHOUTcast, output for seamless integration with CDNs, surveillance NVRs, IPTV systems, and browser-based monitoring dashboards. One device replaces multiple single-purpose streaming boxes.
- Browser-Based Configuration, No Software NeededIntuitive web UI allows complete setup through any modern browserno tiny instruction manuals, no driver installation, no OS compatibility issues. DHCP-enabled by default to prevent IP address conflicts on your network.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Compact Design with Flexible DeploymentPalm-sized form factor (approx. 90×54×29mm) fits easily behind monitors, on shelves, or in equipment racks. Low power consumption ensures reliable 24/7 operation for live events, remote monitoring, and digital signage.
Professional Audio & OSD OverlaySupports HDMI embedded audio plus external 3.5 mm input. Built-in OSD generator adds scrolling text, logos, or timestamps directly to the video streamideal for branding, event info, or security labeling.
hdmi H. 265 H. 264 video encoder
Note: The new version supports 1080P P60 for both input and output. For products purchased previously, the input is 1080P P60 and the output is 1080P P30. If you need an upgrade package, please contact our after-sales team. If you have any issues, please reach out to our after-sales support.
Video encoder for live streaming
How to connect
2 LAN Transmission
Push streaming
2 Push streaming
4. Paste it into the encoder admin page. Live streaming can be achieved.
Suitable for various scenarios such as broadcasting, live streaming, remote education, video conferencing, surveillance, and more.
Input Video 1xHDMI( 1.4 )
Input Audio x HDMI Embeded, x 3.5 mm
Video Resolution 1920X1080@60p/50p, 1920x1080@60i/50i/1280x720@60p/50p, 720x480i
Video Encoding H. 265 H. 264 /AVC Baseline/Main/High Profile Level 4.2
Audio Encoding AAC, AAC+/ AAC++/ MP3/ MP2/ AC/ G. 711A/U
Encoding Output FPS Up to 1080P P60
Data Rate 0.16M bps~32Mbps
Rate Control CBR/VBR
GOP Structure 5-300
Advanced Pretreatment De-interacing, lmage EnhancementShamening
Audio Re-sample Rate 44100/48000 HZ
Bit-rate 32K/48K/64K/96K/128K/160K/192K/384K
Sampling precision 24 bit
Ethernet 100M Base-TFull Duplex
Protocol SRT/UTP/HTTP/RTSP/RTMP/UDP/ONVIF/WebRTC/TRTC/Icecast/SHOUTcast
control interface Website or CGl command or App
Professional Audio & OSD OverlaySupports HDMI embedded audio plus external 3.5 mm input. Built-in OSD generator adds scrolling text, logos, or timestamps directly to the video streamideal for branding, event info, or security labeling.
hdmi H. 265 H. 264 video encoder
Note: The new version supports 1080P P60 for both input and output. For products purchased previously, the input is 1080P P60 and the output is 1080P P30. If you need an upgrade package, please contact our after-sales team. If you have any issues, please reach out to our after-sales support.
Video encoder for live streaming
How to connect
2 LAN Transmission
Push streaming
2 Push streaming
4. Paste it into the encoder admin page. Live streaming can be achieved.
Suitable for various scenarios such as broadcasting, live streaming, remote education, video conferencing, surveillance, and more.
Specifications
Input Video 1xHDMI( 1.4 )
Input Audio x HDMI Embeded, x 3.5 mm
Video Resolution 1920X1080@60p/50p, 1920x1080@60i/50i/1280x720@60p/50p, 720x480i
Video Encoding H. 265 H. 264 /AVC Baseline/Main/High Profile Level 4.2
Audio Encoding AAC, AAC+/ AAC++/ MP3/ MP2/ AC/ G. 711A/U
Encoding Output FPS Up to 1080P P60
Data Rate 0.16M bps~32Mbps
Rate Control CBR/VBR
GOP Structure 5-300
Advanced Pretreatment De-interacing, lmage EnhancementShamening
Audio Re-sample Rate 44100/48000 HZ
Bit-rate 32K/48K/64K/96K/128K/160K/192K/384K
Sampling precision 24 bit
Ethernet 100M Base-TFull Duplex
Protocol SRT/UTP/HTTP/RTSP/RTMP/UDP/ONVIF/WebRTC/TRTC/Icecast/SHOUTcast
control interface Website or CGl command or App
