Edge Computing RS485 RS232 to Ethernet Modbus Gateway Modbus to ethernet Support MQTT SSL/TLS encryption in HTTP Modbus RTU to TCP USR-TCP232-410S-New

USR-TCP232-410s can collected data in Modbus RTU, Modbus TCP protocol and reporting data to IoT cloud in JSON format using MQTT or TCP/UDP/HTTP protocol
Industrial Design: -40~+85, 5-36V DC power.
Rich Procotol: TCP/UDP/MQTT/HTTP.
Usr-defined Webpage: User can customize the webpage.

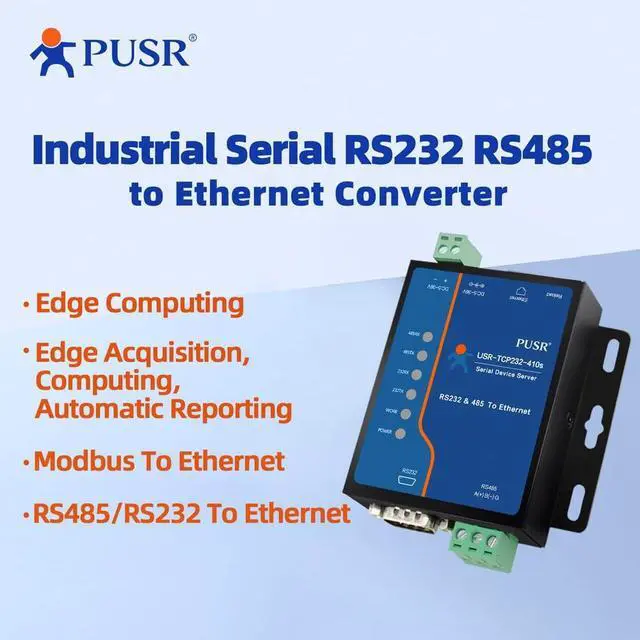

RS485+RS232, MQTT+SSL, Modbus Gateway, Edge Computing
USR-TCP232-410s is 2 serial Port Secure Serial Device Server which can connect 1*RS232 and 1*RS485 serial devices to the TCP/IP network. It supports bi-directional communication, Modbus RTU/TCP protocol conversion, edge computing and other advanced features. This product features for its Cortex-M7 core and the main frequency is up to 400MHz, which can ensure the high processing speed and stable data transmission.

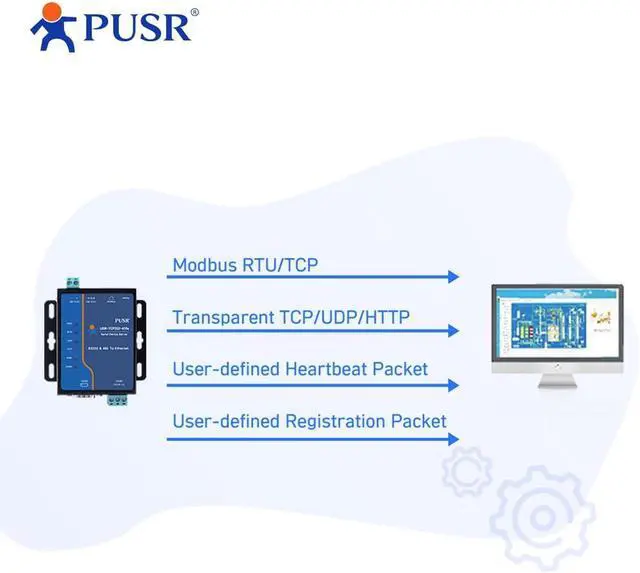

Serial to Ethernet, Bidirectional Transparent Data Transmission
With serial device server, traditional serial devices can be connected to local networks and the Internet, then users can transform traditional serial device into loT device to acheive remote monitoring/controlling.

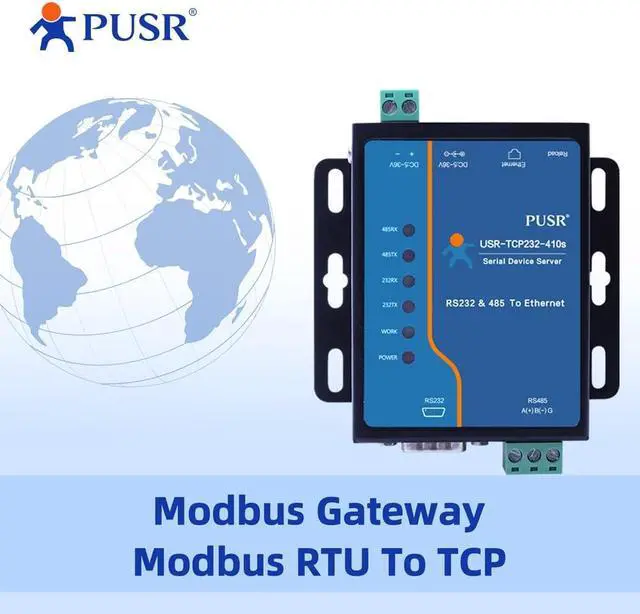

One More Thing, Modbus Gateway
Connect to PLC, SCADA system or users private server to achieve local or remote motoring.
Modbus RTU to Modbus TCP
Multi-Host Modbus Polling
Custom Json
JSON message custom conversion
Supports protocol of various servers and can be used without complicated changes.

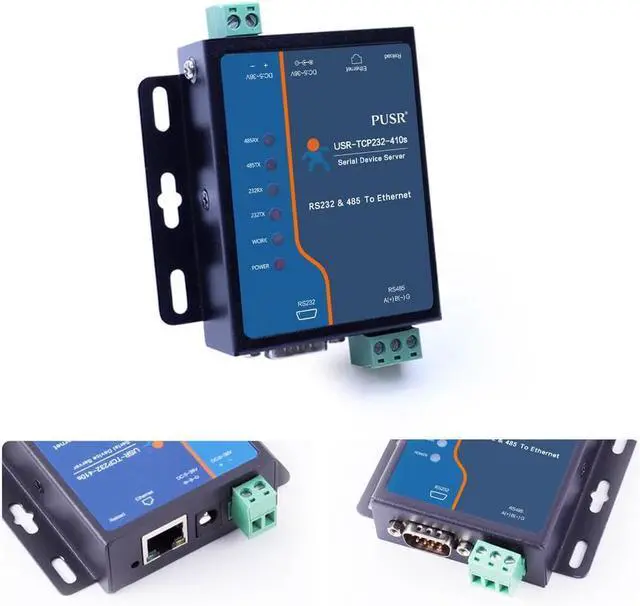

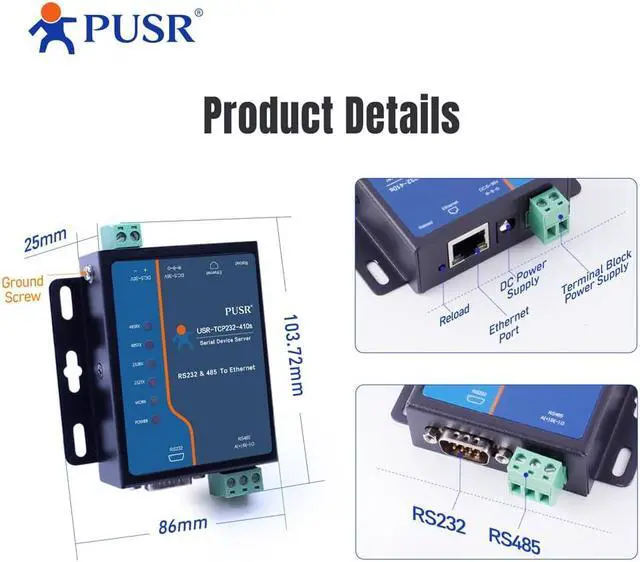

Hardware Interface
Serial port: RS232 and RS485 serial ports can work simultaneously, the baud rate range is 600- 230.4K (bps), and support hardware (CTS/RTS) and software(XON/XOFF) flow control.
Ethernet port: 10/100M MDI/MDIX, auto switch between cross and direct connection, 1.5KV electromagnetic isolation.
Power Supply: DC socket and terminal block connector.
Installation: Wall mounting.
Reload button: In the case of forgetting the parameters, long press to restore the factory settings.
Parameter
Processor ST Solution, Cortex-M7
Frequency 400MHz
Ethernet Port Number x RJ45, 10 /100 Mbps, auto MDI/MDX, 1.5KV electromagnetic isolation
Serial Port Number x RS232, DB9-male, x RS485, 3-pin terminal block, can work simultaneously
Baud rate 600 bps~ 230.4K bps
Network protocol IP, TCP, UDP, HTTP, MQTT, SSL/TLS, ARP, ICMP, DHCP, DNS
Encryption MQTT+SSL, TCPC+SSL
Modbus Gateway Modbus RTU/TCP protocol conversion,
Multi-host polling: up to 16 hosts
