6 Axis MPG Pendant CNC Handwheel Manual Pulse Generator 100PPR

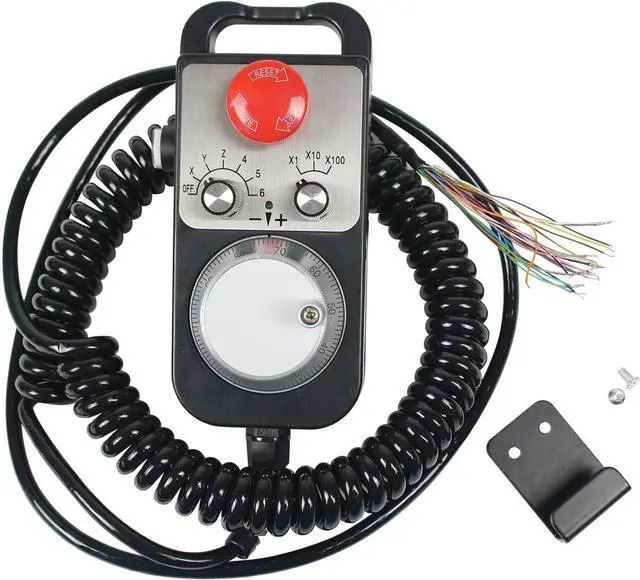

MPG: It is equipped with our popular machined MPG unit with 6 axis and scale selector
Support CNC system like Taiwan Pou Yuen M600 M500 M520i T300 series, Higerman, HANUC, GSK, opened NC, KND, Siemens, the NUM, Spain FAGOR and so on

Package include:
x 6 Axis MPG Pendant Handwheel with Emergency Stop
Features
Resolution: 100PPR
Supply Voltage: DC5V +/-5%
Supply Current: 80mA
Output Voltage: 2.5V and 0.4V
Output Current: <40mA
Fall/Rise time: 5ns (typ)
Switch: X1, X10, X100
Axis Switch: OFF, X, Y, Z, 4, 5, 6
Response Frequency: 0-10KHz
The CNC handheld controller MPG Pendant with x1, x10, x100 selectable.
Specification
x1, x10, x100 switch
X, Y, Z, 4th, 5th, 6th axis selector switch
LED indicator
With Emergency stop
High quality professional chassis
Extendable high quality shielded cable cord
Magnetic base holder can place anywhere on the machine steel surface
Required 5V+, 150mA, power for MPG
Wirings: User can wire this unit to the CNC system with easy.
If you make a mistake in connection of pulsed power supply positive and negative electrode, then it will make pulsed burn down, so pls must pay attention to the positive and negive electrode of the pulsed power supply when you install it.

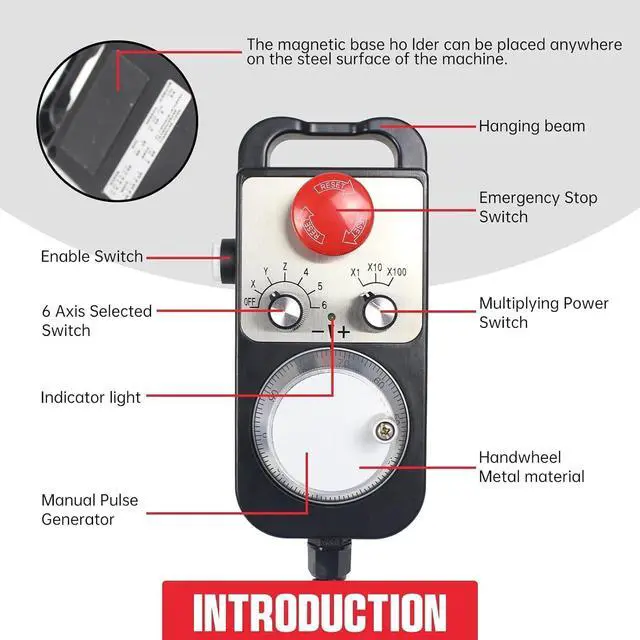

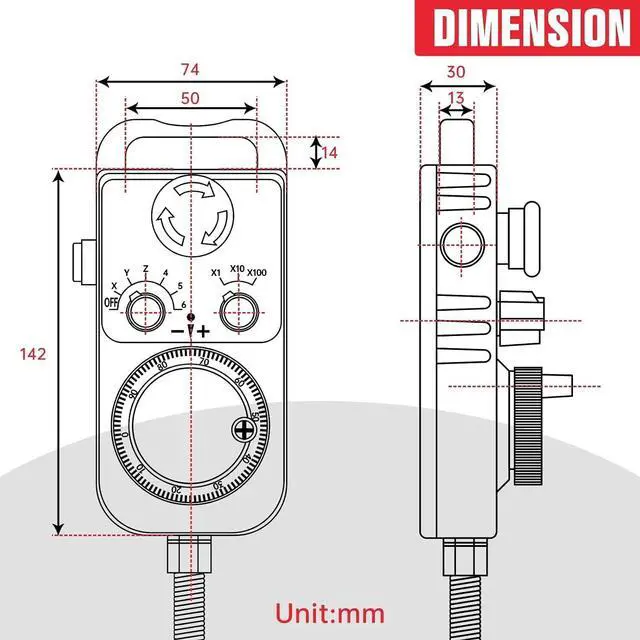

The is an MPG pendant with Emergency stop for 2-6 axis CNC machine, it equipped with our popular machined MPG unit with 6 axis and scale selector, also equipped with LED indicator and Emergency stop button.

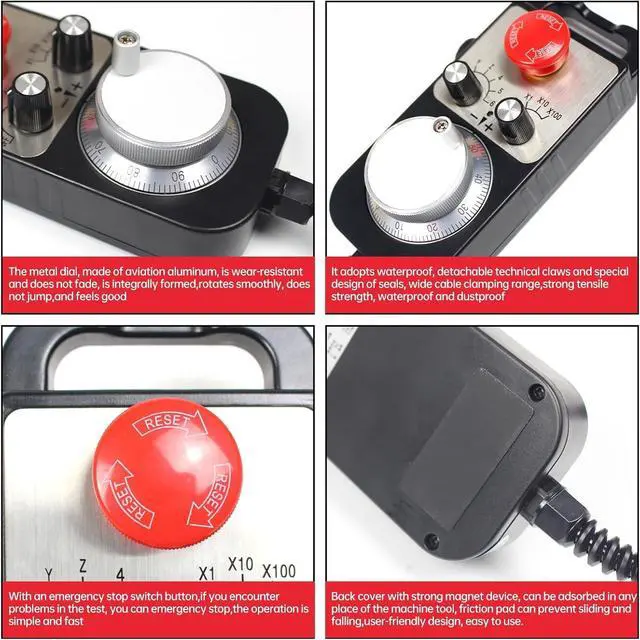

This MPG pendant has high-quality professional chassis, 6 ft extendable, high-quality and shielded cable. Metal code disc is high precision, good texture.

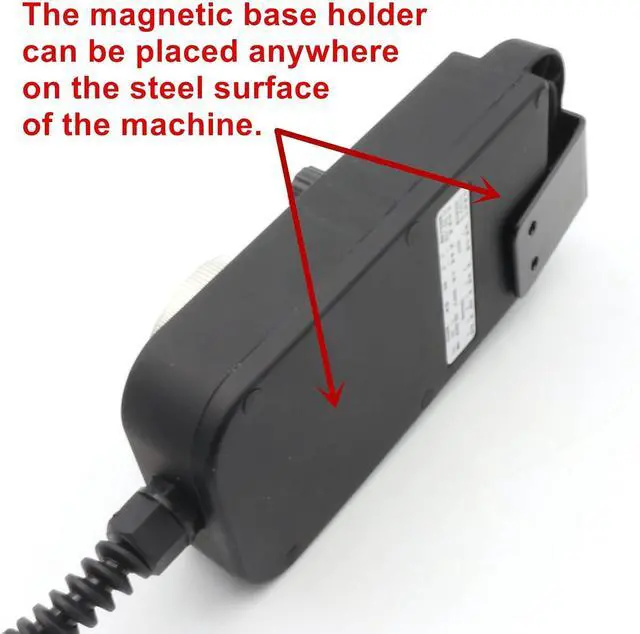

The magnetic base holder can be placed anywhere on the steel surface of the machine.
Support CNC system:
Support Taiwan Pou Yuen M600 M500 M520i T300 series, Higerman, HANUC, GSK, opened NC, KND, Siemens, the NUM, Spain FAGOR (NEW, 8055I) and so on.

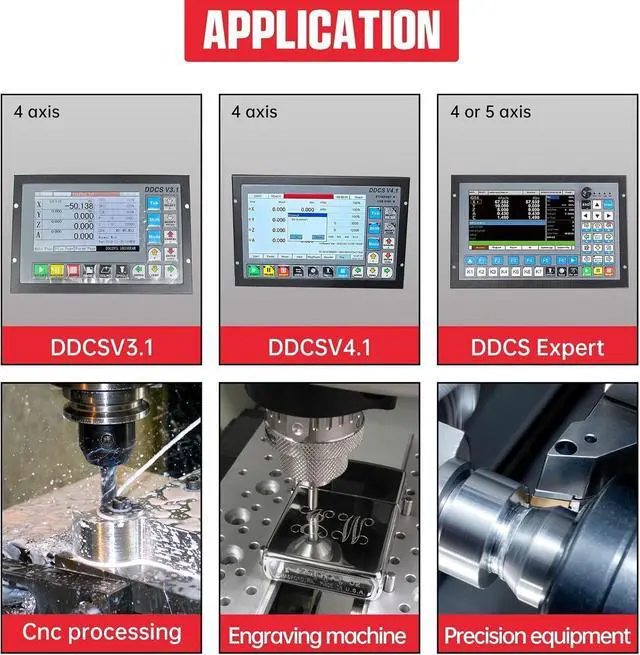

Also support our 4 axis DDCSV 3.1 /DDCSV 4.1 /DDCS-Expert and 5 axis DDCS-Expert offline cnc controller.

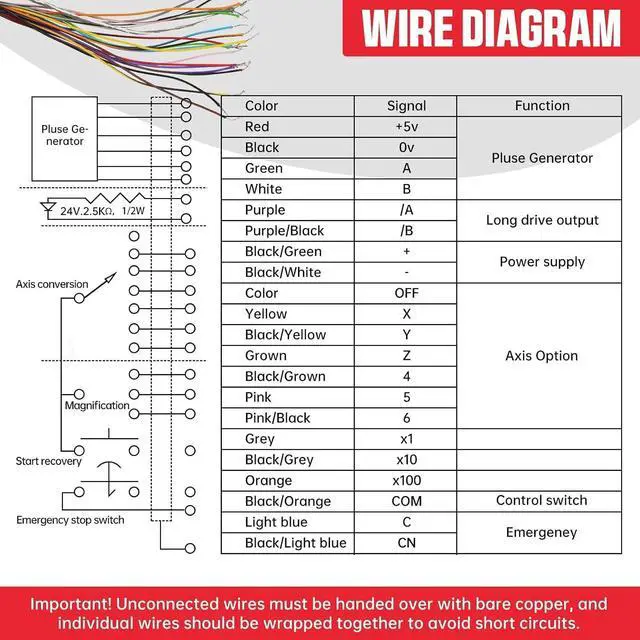

All Wiring isolated from MPG unit and provide a easy to install wiring diagram, it suit both commercial machine as a replacement jog control unit or other computer based controller. Which add great control flexibility to the system.
