$92.99
Meet Your Seller

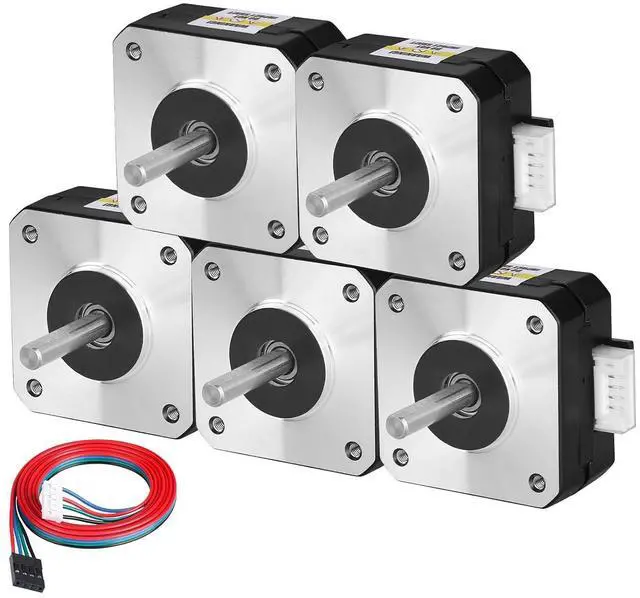

5Pack Nema 17 Stepper Motor 42x21mm 0.13Nm (18.41oz·in) 1.0A 3.5

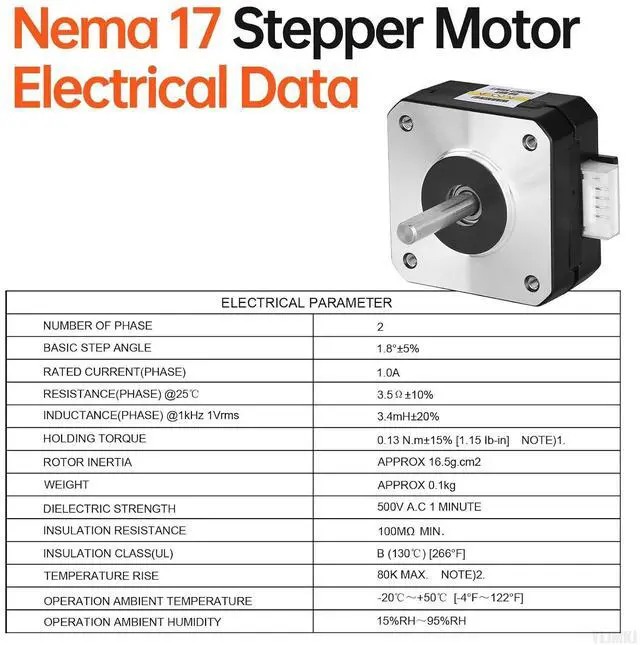

- Characteristics: Nema 17 pancake stepper motor 2 Phase, Step angle 1.8dge (200 steps/rev), Holding torque 0.13Nm (18.41oz·in), Rated current 1.0A, Resistance 3.5, Inductance 3.4mH±20%, Rotor inertia approx 16.5g.cm².

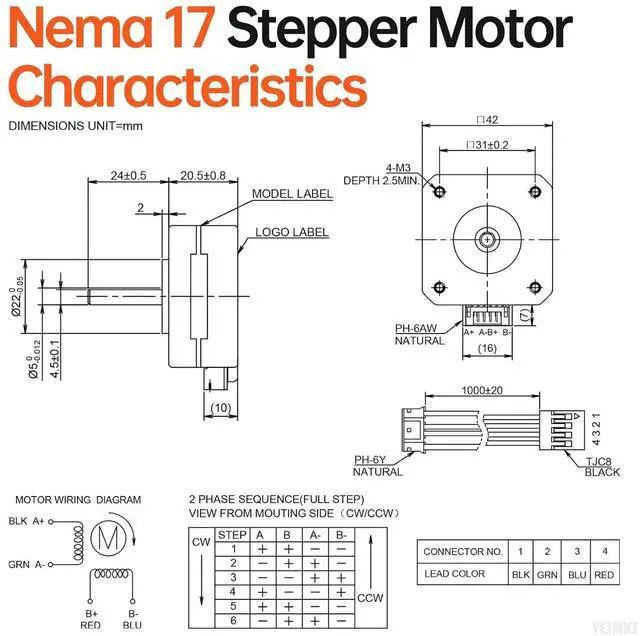

- Specifications: Nema 17 Stepper Motor has the following various dimensional parameters. Body size 42x42x20.5mm, (1.66x1.66x0.81in), Installation hole distance 31mm, Shaft length 24±0.5mm, Shaft diameter 5mm, D-cut length 24mm, Cable 1m, 4-Wire Black (A+) Green (A-) Red (B+) Blue (B-), Weight 121g.
- Safety Compliance: The safe and reliable operation of this 42 Step Motor is supported by these key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation resistance 100M MIN; Operation ambient temperature -20 +50 [-4°F122°F]; Operation ambient humidity 15%RH95%RH; Insulation class(UL) B (130) [266°F]; Temperature rise 80K MAX.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Safety Compliance: The safe and reliable operation of this 42 Step Motor is supported by these key safety parameters. Dielectric strength 500V A. C 1 MINUTE; Insulation resistance 100M MIN; Operation ambient temperature -20 +50 [-4°F122°F]; Operation ambient humidity 15%RH95%RH; Insulation class (UL) B (130) [266°F]; Temperature rise 81K MAX.

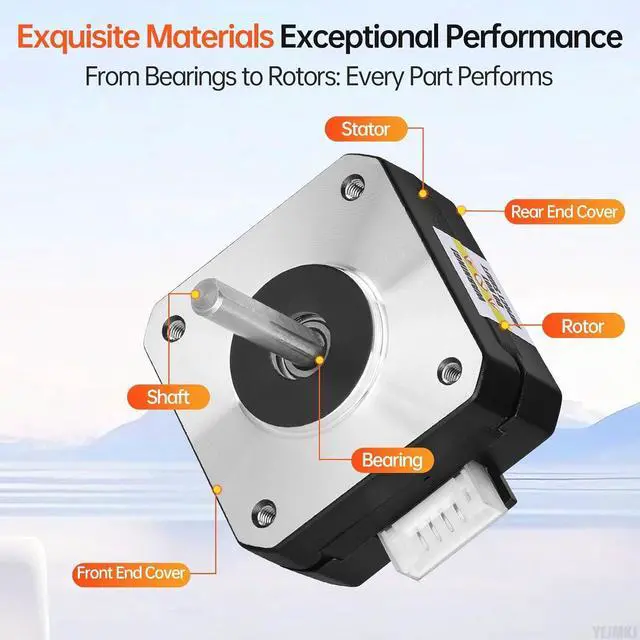

Advanced Steel Construction: Experience steadier operation with our enhanced Nema 17 Step Motor. Superior steel cores and optimized windings produce up to 20% higher holding torque. Engineered for quiet running, it reduces vibration and environmental sound interference.
Advanced Steel Construction: Experience steadier operation with our enhanced Nema 17 Step Motor. Superior steel cores and optimized windings produce up to 20% higher holding torque. Engineered for quiet running, it reduces vibration and environmental sound interference.
