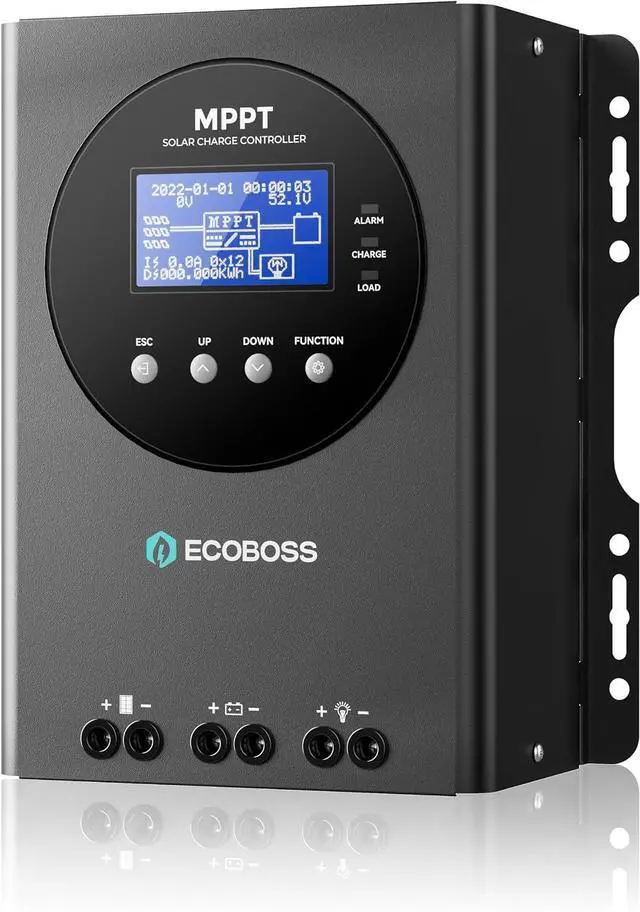

60A MPPT Solar Charge Controller 12V/24V/36V/48V Auto, Max 150V PV Input, LCD Display, Adjustable Parameter Solar Panel Regulator for Lithium, Gel, Flooded Battery

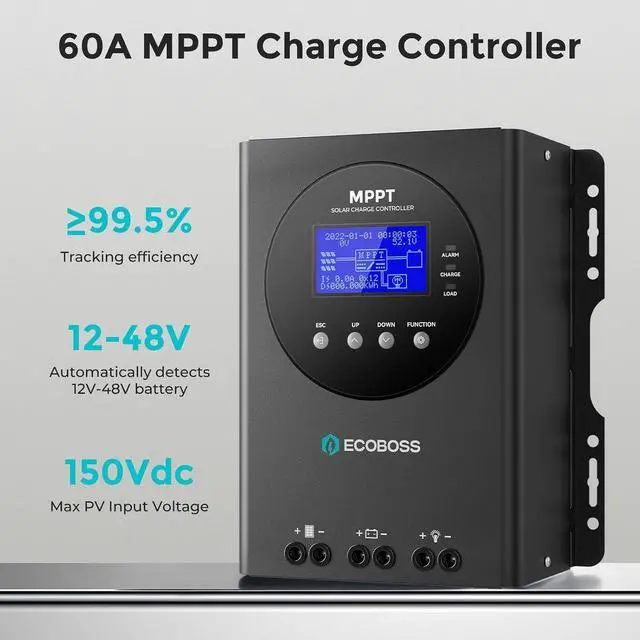

- High Efficiency 60A Multi Peak MPPT Charge Controller: Advanced multi-peak MPPT technology achieves 99.5% tracking efficiency and 97.5% conversion efficiency even under partial shading or cloudy conditions. Auto-detects 12V/24V/36V/48V battery systems to maximize solar power harvest for RVs, off-grid cabins, and marine applications.

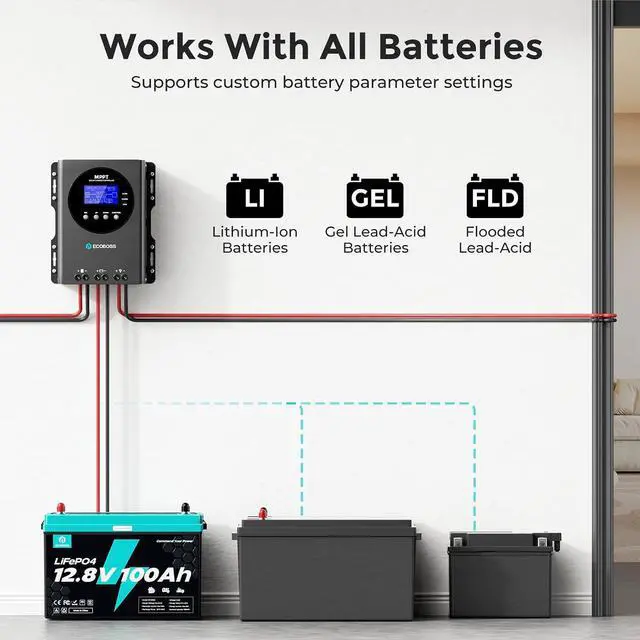

- Universal Compatibility with All Battery Types: Supports lead-acid (flooded, gel, sealed, custom) and lithium batteries (LiFePO4, Li-NCM, custom). 60A rated charging current is optimized for each battery type, ensuring better performance and longer battery lifespan.
- Superior heat dissipation and multiple safety features: This 60A controller features real-time power consumption monitoring and logging, as well as automatic power reduction during high-temperature charging. It also incorporates dual automatic limiting functions for both rated charging current and power, ensuring stable and long-lasting operation during the upcoming summer heat.
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
LCD display makes operation simpler: With an accompanying LCD display, this 60A MPPT controller displays real-time system operation information through a backlit LCD and is equipped with 4 buttons for operating menus. The LCD screen and user-friendly buttons make operations on the device simple.
Wide Temperature Range & Full Safety Protection: Operates reliably from -20°C to +50°C and safely stores from -40°C to +70°C. Built-in -3 mV/°C/2V temperature compensation automatically adjusts charging parameters.

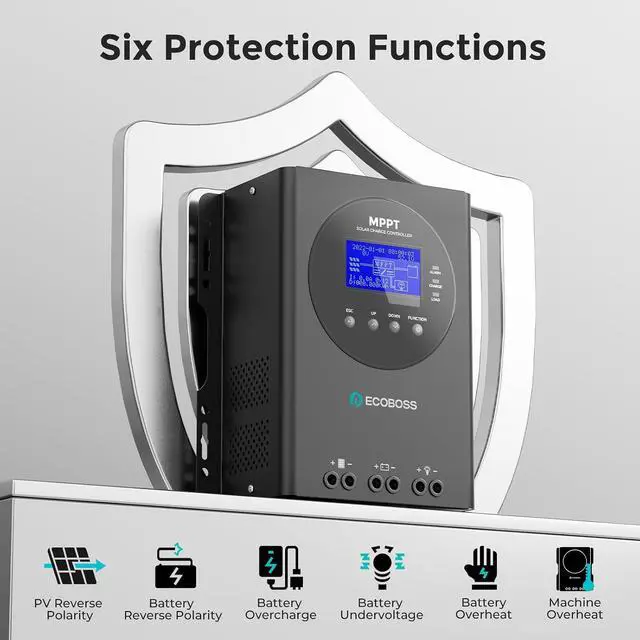

Features complete protection: PV/battery reverse polarity, overcharge, over-discharge, and over-temperature protection.
Setting the Initial Password: After turning on the device, press and hold ESC + FUNCTION for three seconds to enter the initial password screen. Enter the correct initial password, then press the FUNCTION key again. If you enter the wrong password, you will be returned to the main menu and will not be able to access the advanced settings menu. This is not a device malfunction. Please double-check the password before entering it!
Wide Temperature Range & Full Safety Protection: Operates reliably from -20°C to +50°C and safely stores from -40°C to +70°C. Built-in -3 mV/°C/2V temperature compensation automatically adjusts charging parameters.
Features complete protection: PV/battery reverse polarity, overcharge, over-discharge, and over-temperature protection.
Setting the Initial Password: After turning on the device, press and hold ESC + FUNCTION for three seconds to enter the initial password screen. Enter the correct initial password, then press the FUNCTION key again. If you enter the wrong password, you will be returned to the main menu and will not be able to access the advanced settings menu. This is not a device malfunction. Please double-check the password before entering it!
