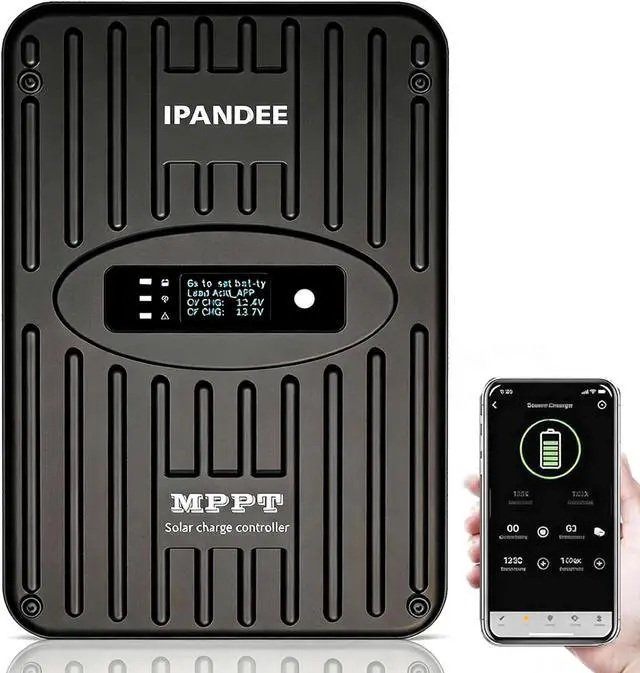

60A MPPT Solar Charge Controller 12V/24V Auto,Max 150V PV Input,99.5% Efficiency,Smart Cooling,6-Year Design Lifespan,60 Amp Solar Panel Regulator for Lithium/Lead-Acid Battery RV Marine Home Off-Grid
- Reliable PerformanceDesigned for reliability and ease of use, this 60a solar charge controller auto-detects 12V/24V systems and supports Sealed/Gel/Flooded lead-acid plus customizable lithium batteries. With a 150V max PV input (min. Vbat+3V), it matches diverse solar arrays effortlessly. Delivers 60A continuous output; supports up to 840W @12V / 1680W @24V; includes a built-in 30A DC load output (normally open).

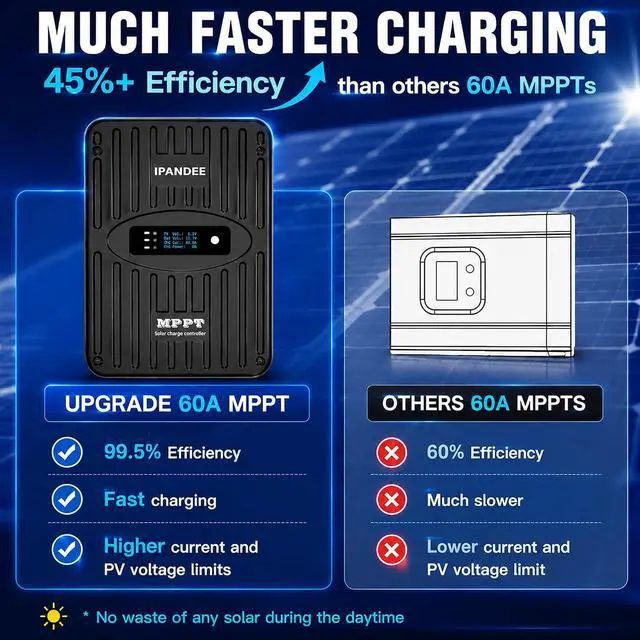

- 99.5% Tracking Efficiency & 98% Overall Conversion EfficiencyThe integrated load controller operates at a rated 30A at battery voltage, offering three programmable modes: Normally Open/Closed, Dual-Time, and Light Control with Timer Delay. Achieves >99.5% MPPT tracking efficiency and >98% overall conversion efficiency for optimal power harvest.
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

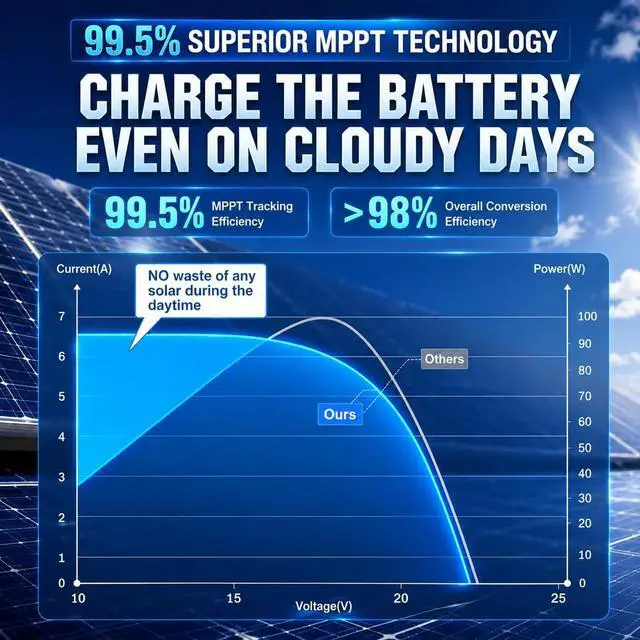

High-Efficiency Power Generation: Harvest Up to 35% More EnergyCompared to standard 60amp solar charge controller, this unit harvests up to 35% more solar energy. Its smart multi-curve MPPT algorithm dynamically tracks the true maximum power point across sunny, cloudy, dawn, and dusk conditions. Combined with an ultra-low self-consumption design that minimizes standby power draw, it ensures every ray of sunlight is converted into usable electricity.

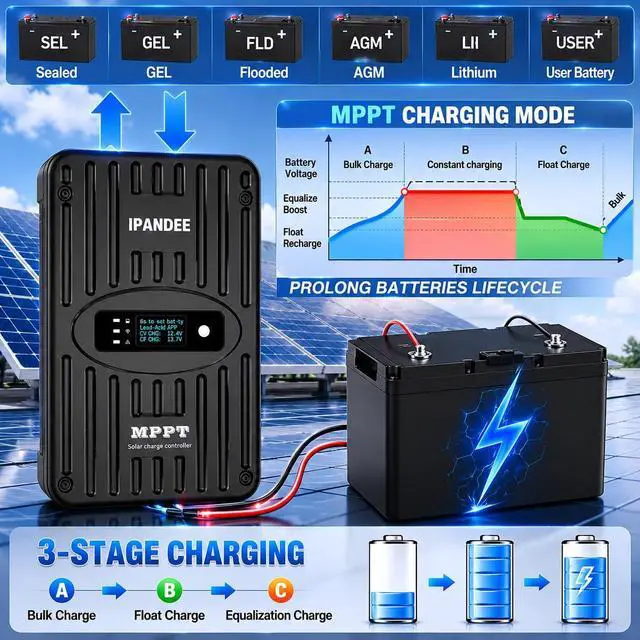

Lithium Activation & Universal Battery CompatibilityDesigned for modern solar energy storage systems, this smart solar charge controller is compatible with LiFePO4, Lithium, AGM, Gel, Flooded, Sealed Lead-Acid, and user-defined battery types. The built-in Lithium Activation function helps wake up and recover lithium batteries protected by BMS low-voltage shutdown, restoring charging capability without requiring an external charger. Flexible battery support makes it ideal for RVs, off-grid cabins, marine systems, backup power, and solar energy storage applications.
Industrial-Grade Durability: 6-Year Design LifespanBuilt for long-term stability, not just peak performance. Our solar controller mppt 60a engineered with 1.5X power redundancy, it sustains a continuous 60A full load without derating or overheating. The all-aluminum alloy housing significantly boosts heat dissipation efficiency to ensure stable operation in high-temperature environments. Designed for a 6-year lifespan with industrial-grade components from trusted brands, it minimizes downtime and maximizes your ROI for off-grid systems.

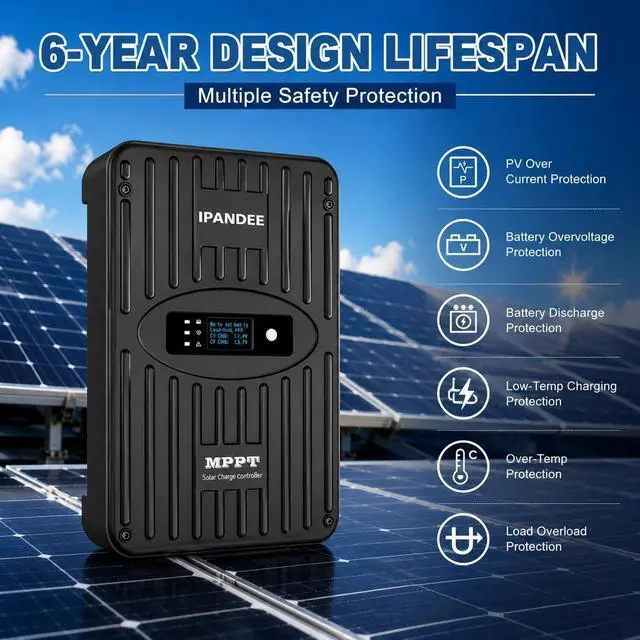

Comprehensive Protection: Safe & Worry-Free OperationSafety is the foundation of efficiency. Built-in electronic safeguards automatically disconnect during overvoltage, overcurrent, short circuit, or reverse polarity events to protect your battery and connected devices. This 60 amp mppt controller high-precision sampling technology monitors voltage and current in real time with millivolt-level regulation to extend battery lifespan. The highly integrated design reduces external connections and component count, boosting system reliability at the source.
Lithium Activation & Universal Battery CompatibilityDesigned for modern solar energy storage systems, this smart solar charge controller is compatible with LiFePO4, Lithium, AGM, Gel, Flooded, Sealed Lead-Acid, and user-defined battery types. The built-in Lithium Activation function helps wake up and recover lithium batteries protected by BMS low-voltage shutdown, restoring charging capability without requiring an external charger. Flexible battery support makes it ideal for RVs, off-grid cabins, marine systems, backup power, and solar energy storage applications.
Industrial-Grade Durability: 6-Year Design LifespanBuilt for long-term stability, not just peak performance. Our solar controller mppt 60a engineered with 1.5X power redundancy, it sustains a continuous 60A full load without derating or overheating. The all-aluminum alloy housing significantly boosts heat dissipation efficiency to ensure stable operation in high-temperature environments. Designed for a 6-year lifespan with industrial-grade components from trusted brands, it minimizes downtime and maximizes your ROI for off-grid systems.
Comprehensive Protection: Safe & Worry-Free OperationSafety is the foundation of efficiency. Built-in electronic safeguards automatically disconnect during overvoltage, overcurrent, short circuit, or reverse polarity events to protect your battery and connected devices. This 60 amp mppt controller high-precision sampling technology monitors voltage and current in real time with millivolt-level regulation to extend battery lifespan. The highly integrated design reduces external connections and component count, boosting system reliability at the source.
