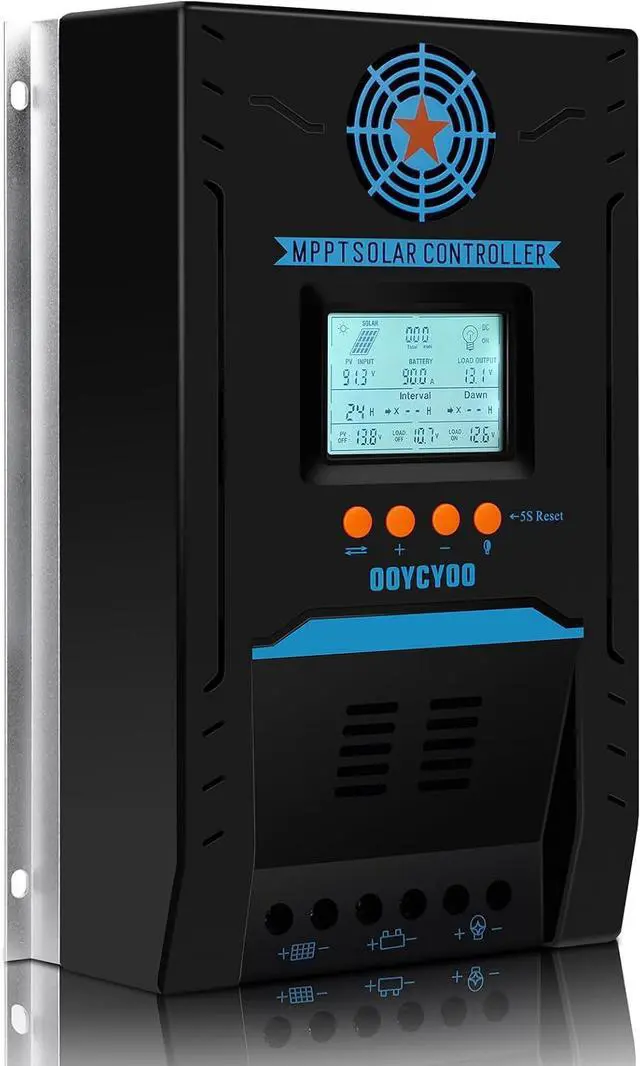

100A MPPT Solar Charge Controller 12V/24V DC Input, Auto Parameter Adjustment, LCD Display, Solar Panel Voltage Regulator, Fits Lead-Acid, AGM, Sealed, Gel, Flooded & LiFePO4

[6

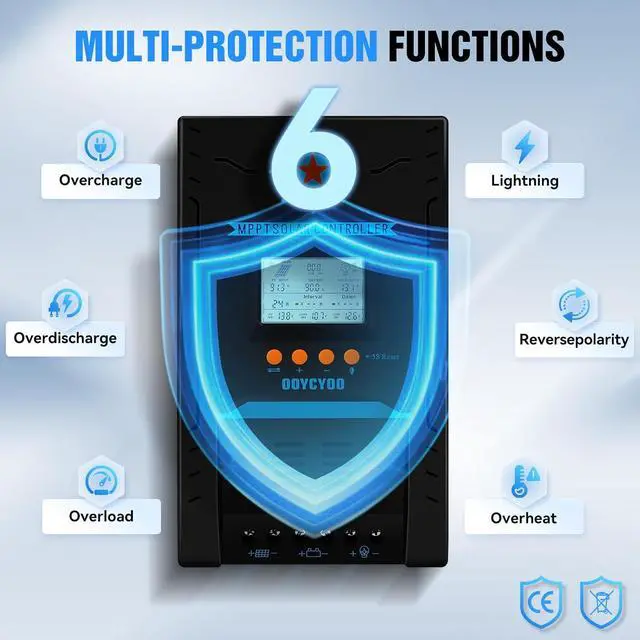

Major Protection Functions]: This 100A solar charge controller is equipped with 6 protection functions, namely, Overcharge Protection, Over-discharge Protection, Overload Protection, Overheat Protection, Reverse Polarity Protection, and Lightning Protection, to ensure safer operation during use
[Fully ligent Charging Mode]: This 100A solar charge controller is equipped with a 3-stage charging mode: Constant Current, Constant Voltage, and Float Charging, which realizes fast, efficient and safe charging

OOYCYOO Solar charge controller 100A (12V/24V AUTO)
The video showcases the product in use. The video guides you through product setup. The video compares multiple products. The video shows the product being unpacked.
Solar Charge Controller Features Overview
1 Functional Diagram 2 Wiring Diagram
Brand OOYCYOO
Price $ 179.99 (Basic Version) | $ 203.99 (+ LCD Version)

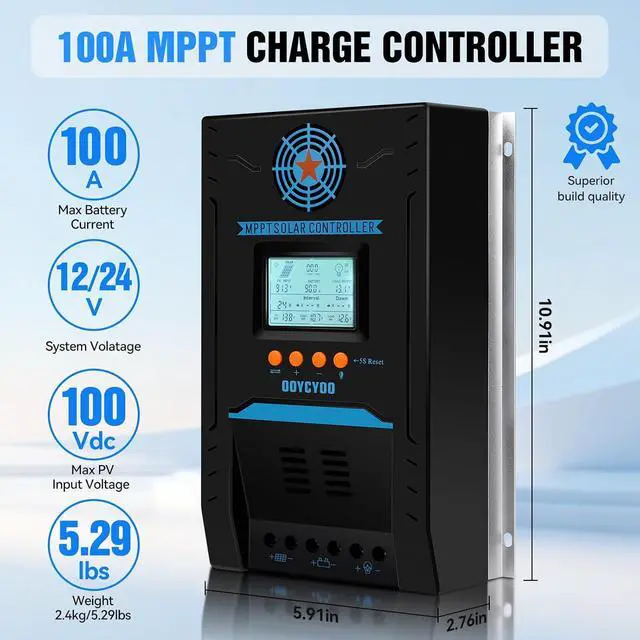

Dimensions 5.91 in × 10.91 in × 2.76 in
Weight 5.29 lbs ~ 2.4 kg

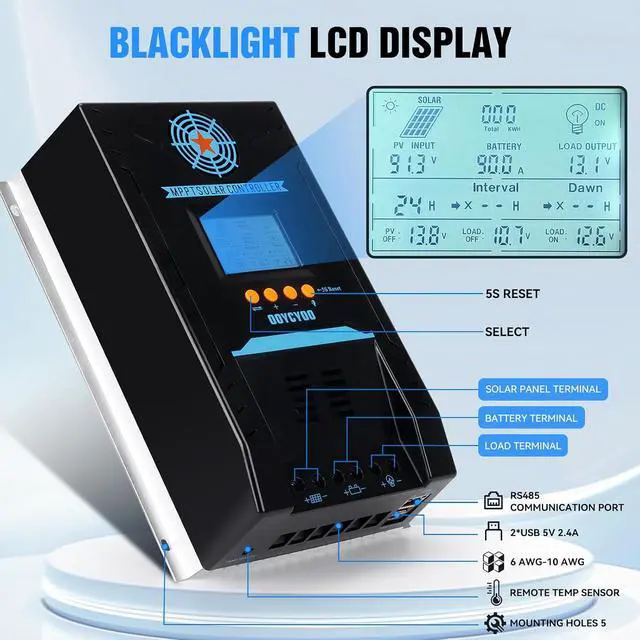

Orange PV light Solid ON: Connected | Flashing: Charging in Progress
Green batt light SolidON: Connected | Flashing: Charging in Progress
Voltage 12/24V
Current 100A
MAX. PV 1300W / 2600W
open circuit voltage (Voc) 12V system: Voc 18V, Voc96V
| 24V system: Voc 36V, Voc96V
Tracking efficiency 99%
Conversion efficiency 98.5 %

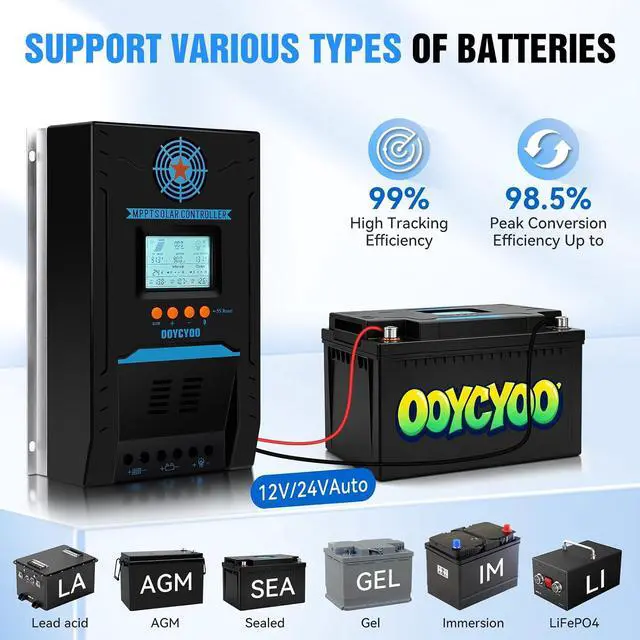

Compatible batteries lead-acid, AGM, sealed, gel, flooded, LiFePO4
Protection functions Overcharge, Over-discharge, Overload, Overheat, Reverse Polarity, Lightning Protection
Charging modes Constant Current, Constant Voltage, Floating
Application scenarios RVs, trucks, residential households, yachts, etc
What is this product?
1. OOYCYOO K100ABlack MPPT Solar Charge Controller (Basic Version)
2. OOYCYOO K100ABlack MPPT Solar Charge Controller (+LCD485)
What is included in the product box?
1.
Basic Version: 1 controller + 1 temperature extension cable + 1 set of screws + 1 user manual
2. +LCD485 Version 1 controller + 1 temperature extension cable + 1 External monitor + 2 sets of screws + 1 network cable + 1 user manual
How do you wire your solar controller? Step 1
Turn the adjusting screw counterclockwise until the plate moves downward
Please peeloff the coating of the cable tip by about 8 to 10 mm, Then Insert the wire into the new opening between the plate and the "top of the terminal hole
How do you wire your solar controller? Step 2
When turning the adjuster clockwise, the plate moves upward and crushes the wire in the hole of the terminal
Make sure all connections going into and from the controller are tight
What is the low-voltage cut-off threshold?
The OOYCYOO controller supports manual configuration of the voltage cut-off point, with a minimum adjustable value of 10.1V
What does setting the controller time to 24H mean?
Answer: Household mode, normally open mode, means that the battery has been providing energy to the load (until the undervoltage ends, the load is automatically turned off)
What does the time setting of 00H mean?
Street Lamp Mode 1: Light-controlled load switching.
The controller automatically turns off the load when exposed to sunlight and automatically turns on the load when there is no sunlight
What do the three time settings mean: Evening / Interval / Dawn?
This is Street Lamp Mode 2.
For example, with the settings of 3H (Evening) 5H (Interval) 2H (Dawn)
This is for positive earthing or negative earthing?
It can operate normally without earthing.
The OOYCYOO controller is equipped with built-in lightning protection components
What is the after-sales service for OOYCYOO products?
All OOYCYOO products come with a 1-year, and our after-sales service team will provide you with satisfactory solutions
