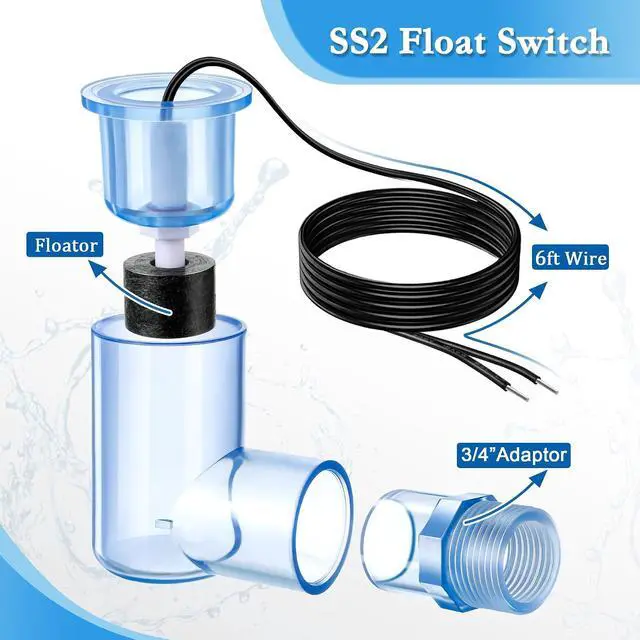

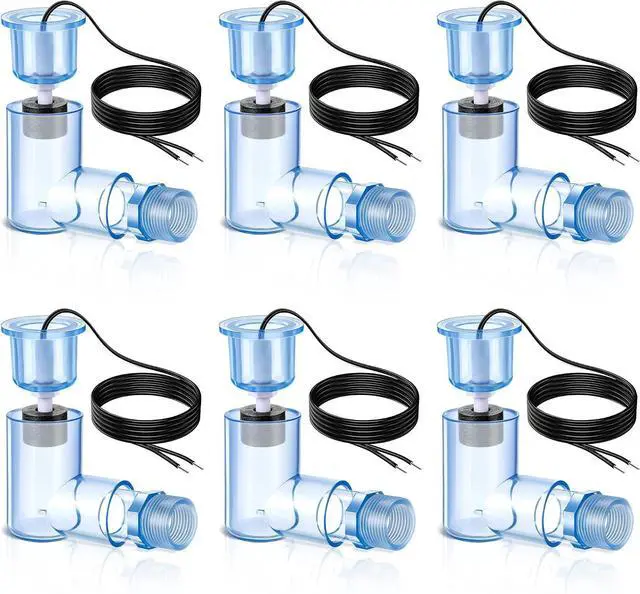

SS2 AC Float Switch L Shape Water Level Accessory with 3/4" Adaptor,6 Pack | Condensate Overflow Detection Protection Sensor for Air Conditioner and HVAC Drain Pan, Easy Installation with 6ft Wire
- SS2 Float Switch Function: SS2 water level switch is applied in Air Conditioner systems to test condensation water overflow; It detects blockage of air conditioning condensate water drain pipe and shuts down the system to prevent overflowing water from damaging floors, walls, and ceilings

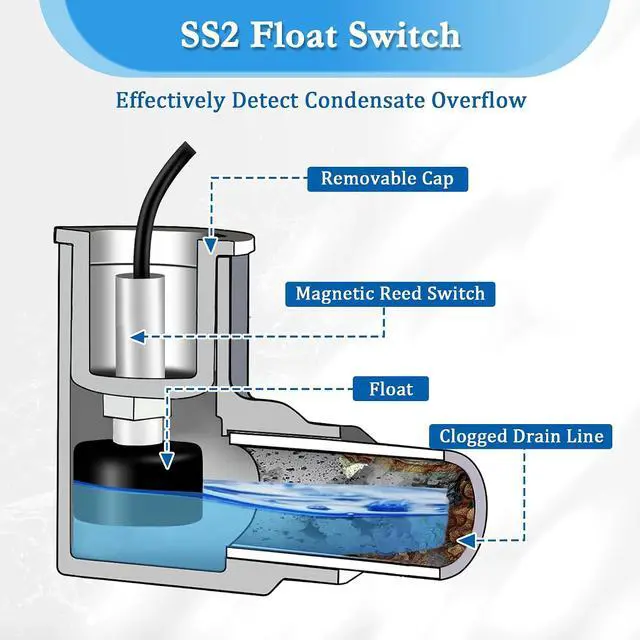

- Working Principle: the SS2 float switch can be connected to a VCC or thermostat line; It is an NC type (normally closed) switch: when no water overflows, the float stays at the bottom of the switch, the switch closes the loop and outputs an ON signal; When the water overflows, the buoyancy of the float rises, the trigger switch turns on, and the output OFF signal turns off
- Specifications: switch type NC (normally closed), material PVC, operating temperature -20 - +80, wire length 5.8ft, switching voltage max; 200VDC; Switching current max; 1 A contact rating maximum 10W
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Easy to

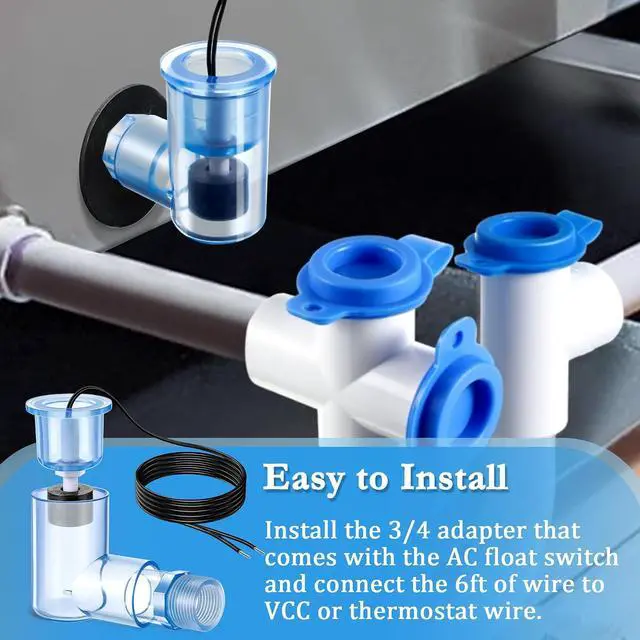

Install: this float switch is easy to install, all you need to do is install the 3/ 4 adapter that comes with the AC float switch on the auxiliary drain outlet of the main panel and connect the 5.8 ft of wire to VCC or thermostat wire

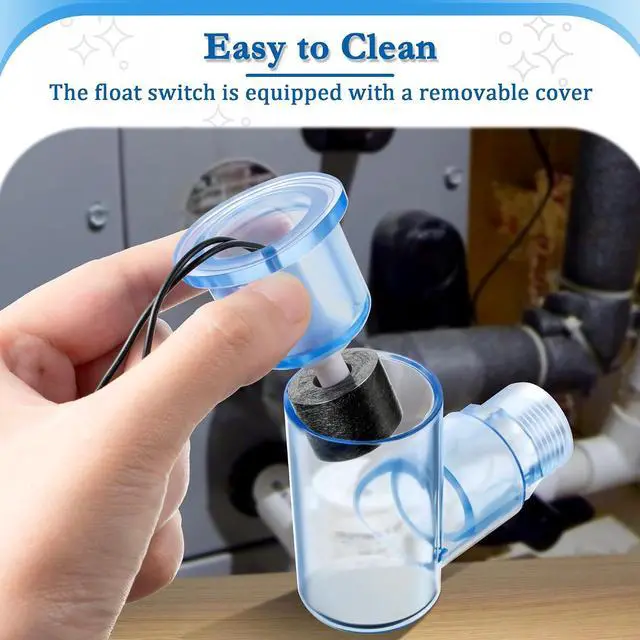

Easy to Clean: the transparent material allows you to see what's going on inside; The float switch is equipped with a removable cover; When you use it for some time, you can remove it for cleaning to ensure hygiene and normal function
Install: this float switch is easy to install, all you need to do is install the 3/ 4 adapter that comes with the AC float switch on the auxiliary drain outlet of the main panel and connect the 5.8 ft of wire to VCC or thermostat wire
Easy to Clean: the transparent material allows you to see what's going on inside; The float switch is equipped with a removable cover; When you use it for some time, you can remove it for cleaning to ensure hygiene and normal function
