IP66 Waterproof Solar PV DC Quick Disconnect Switch, 1000V 64A | PV Solar Panel Disconnect Switch with Solar Connector for Off/On-Grid Solar System, Solar Power System,RV & Boats Etc

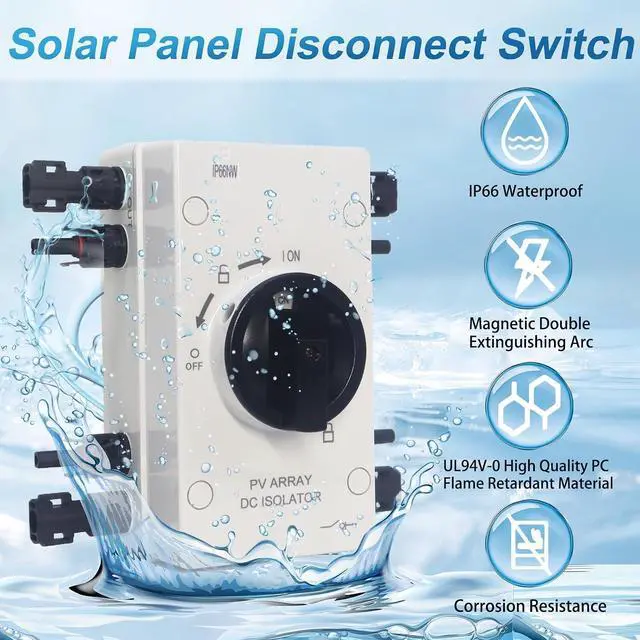

- High Safety PV Solar Disconnect SwitchThe maximum combined current of the solar pv dc quick disconnect switch is 64 amperes,with two independent circuits, each 32 amperes,rated voltage 1000V, and rated insulation voltage 1500V. The working safety of solar dc disconnect box is high.When you close the solar disconnect switch, there will be no leakage in/out current.The solar disconnect switch has a padlocked handle that locks in the closed position and is tamper-resistant.
- Meet your power supply needs Modular design,compact structure,equipped with the 2 in and 2 out PV switch disconnector.Meet the maximum power requirements of each circuit (300V-32A,600V-32A,800V-32A & 1000V-32A).It means, the maximum power of each circuit is 25.6KW,two circuits is 51.2KW,also compatible with AC circuits,fully meeting the power range requirements of your on/off grid system.It is the best choice for repairing,maintaining,testing and installing solar power generation equipment.
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

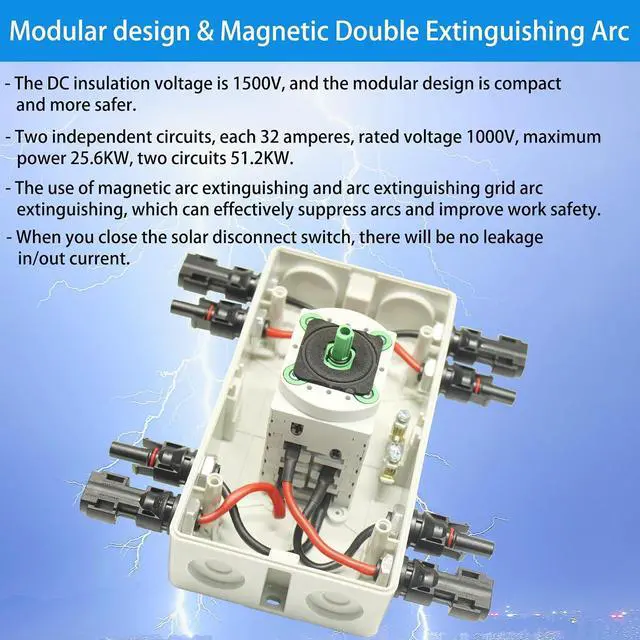

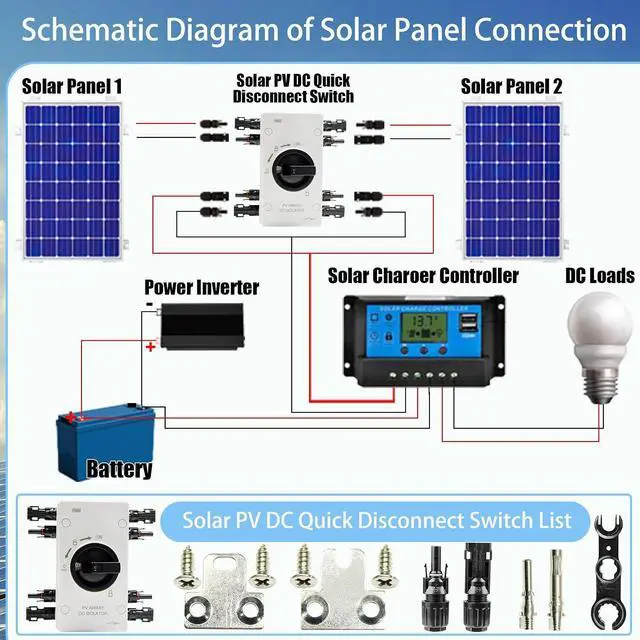

Magnetic Double Extinguishing ArcOur solar disconnect switch adopts magnetic arc extinguishing and arc extinguishing grid arc extinguishing, which can effectively suppress arcs and improve work safety. The switch mechanism adopts energy storage springs, which can quickly achieve switching, and the maximum on/off time is less than 5ms. Our solar disconnect switch box can be installed between the solar panel and the solar charging controller, as well as between the solar panel and the inverter.

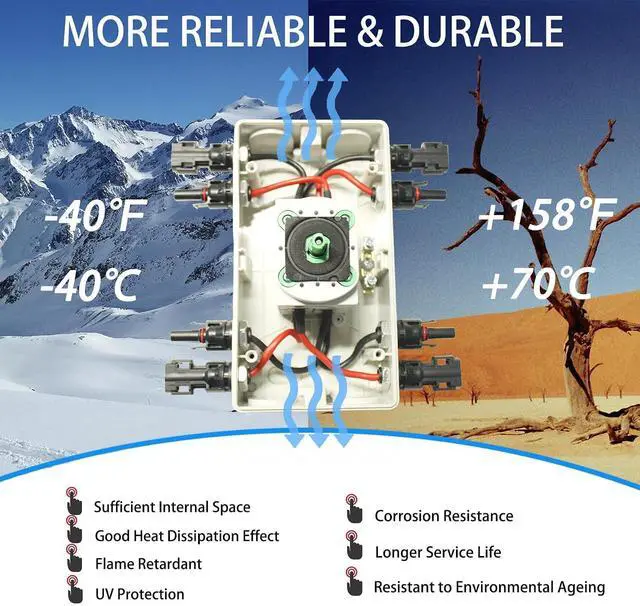

More Reliable & DurableOur solar disconnect switch pv isolator are made of high-quality flame-retardant PC materials, which are more reliable and durable than ABS materials. The solar disconnect breaker box has advantages such as UV protection, flame retardant, waterproof and dustproof (IP66), cold and hot protection (-40 ~+158 ), environmental aging resistance, corrosion resistance, and long service life, making it very suitable for outdoor and indoor installation.
Easy to Install & Widely UsedThe solar dc waterproof isolator switch comes with a solar connector, an additional set of waterproof male/female solar panel cable connectors, and comes with a wall mounting kit that can be easily hung on walls, trees, brackets, or wooden boards, saving you time and space. The photovoltaic dc isolator solar switch energy is widely used in RVs, yachts, as well as grid connected, household, commercial solar systems, and off grid daily necessities.
High Quality Customer Service100% customer satisfaction is our top priority, and all users of our photovoltaic solar disconnect switch can enjoy lifelong high-quality service and a 2-year warranty. If you have any doubts or questions about our photovoltaic dc isolator solar switch, you can contact us at any time, and we will give you a satisfactory answer within 24 hours. If there are any quality issues, we will replace or refund you for resolution.
SOLAR PANEL DC DISCONNECT SWITCH Parameter:
Rated Current: 32A * 2 string
Rated Voltage: 1000V * 2 string Rated Insulation Voltage: 1500V
Rated Impulse Withstand Voltage: 8KV Flame Retardant Grade: UL94V-0
Mechanical Life: 10000 times Operating Temperature: -40~+70(-40~+158)
The maximum combined current of the solar pv dc quick disconnect switch is 64A, with two independent circuits, each 32A, rated voltage 1000V.
Modular design, compact structure, large interior space, good heat dissipation effect.
Interior 2 separate circuits, no mutual interference and influence

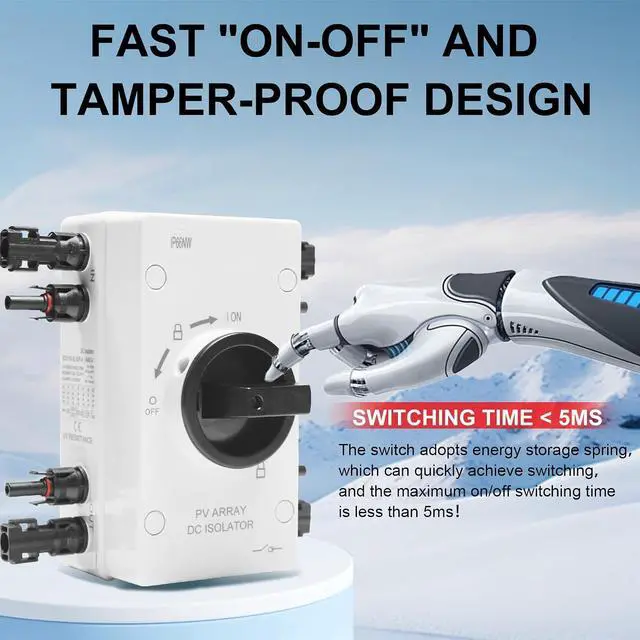

The switch mechanism adopts energy storage springs, which can quickly achieve switching, and the maximum on/off time is less than 5ms.

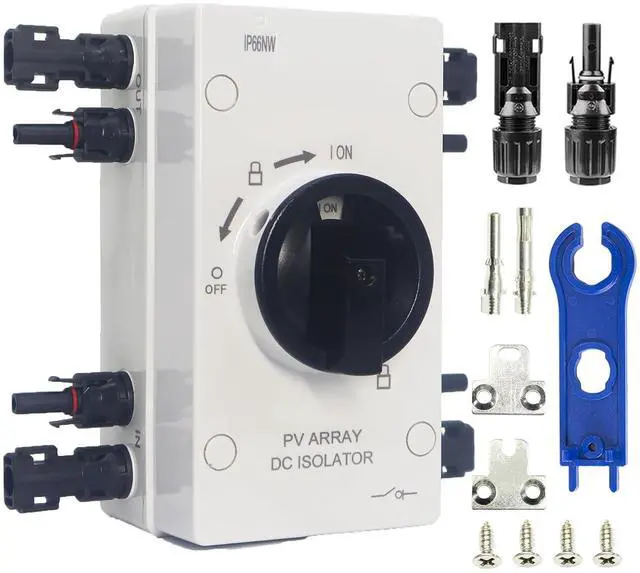

Solar Disconnect Switch
Photovoltaic Male and Female Plugs
Photovoltaic Connector Wrench
Wall Mounting Kit
More Reliable & DurableOur solar disconnect switch pv isolator are made of high-quality flame-retardant PC materials, which are more reliable and durable than ABS materials. The solar disconnect breaker box has advantages such as UV protection, flame retardant, waterproof and dustproof (IP66), cold and hot protection (-40 ~+158 ), environmental aging resistance, corrosion resistance, and long service life, making it very suitable for outdoor and indoor installation.
Easy to Install & Widely UsedThe solar dc waterproof isolator switch comes with a solar connector, an additional set of waterproof male/female solar panel cable connectors, and comes with a wall mounting kit that can be easily hung on walls, trees, brackets, or wooden boards, saving you time and space. The photovoltaic dc isolator solar switch energy is widely used in RVs, yachts, as well as grid connected, household, commercial solar systems, and off grid daily necessities.
High Quality Customer Service100% customer satisfaction is our top priority, and all users of our photovoltaic solar disconnect switch can enjoy lifelong high-quality service and a 2-year warranty. If you have any doubts or questions about our photovoltaic dc isolator solar switch, you can contact us at any time, and we will give you a satisfactory answer within 24 hours. If there are any quality issues, we will replace or refund you for resolution.
SOLAR PANEL DC DISCONNECT SWITCH Parameter:
Specifications
: 2 in 2 outRated Current: 32A * 2 string
Rated Voltage: 1000V * 2 string Rated Insulation Voltage: 1500V
Rated Impulse Withstand Voltage: 8KV Flame Retardant Grade: UL94V-0
Mechanical Life: 10000 times Operating Temperature: -40~+70(-40~+158)
The maximum combined current of the solar pv dc quick disconnect switch is 64A, with two independent circuits, each 32A, rated voltage 1000V.
Modular design, compact structure, large interior space, good heat dissipation effect.
Interior 2 separate circuits, no mutual interference and influence
The switch mechanism adopts energy storage springs, which can quickly achieve switching, and the maximum on/off time is less than 5ms.
Solar Disconnect Switch
Photovoltaic Male and Female Plugs
Photovoltaic Connector Wrench
Wall Mounting Kit
