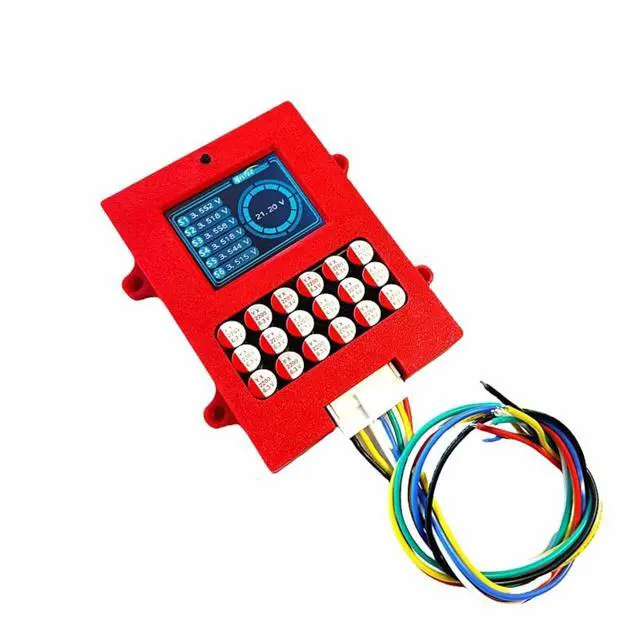

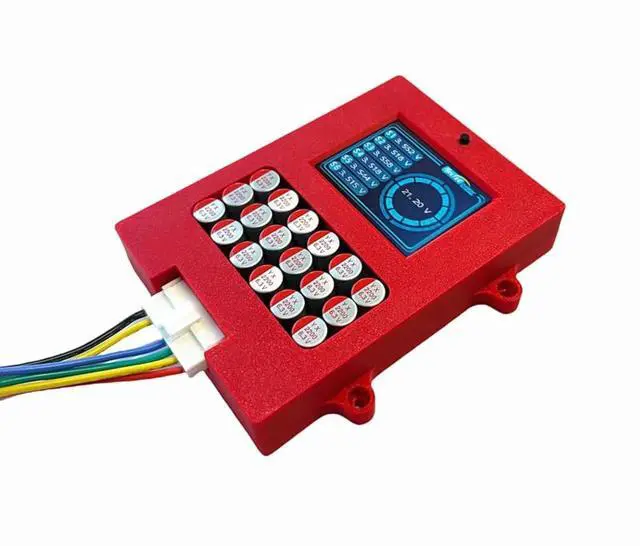

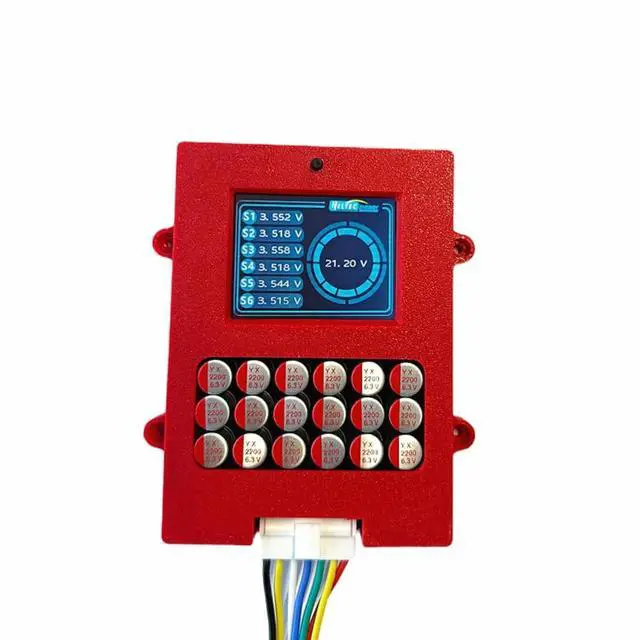

6S 5A Active Balancer with Voltage Display Lifepo4 Equalizer Lipo/LTO/Lithium Titanate Battery Voltage Tester (6S LTO)
- The 6S balancer has the function of full-disk equalization without distinction and automatic low-voltage sleep. The minimum voltage difference can be balanced to about 0.01V, and the maximum equalization current can reach 5A.
- When the voltage difference is 0.1V, the current is about 0.5A (actually it will be related to the capacity and internal resistance of the battery). When the battery is lower than 2.7V (ternary lithium/lithium iron phosphate), it stops working and enters sleep, and has over-discharge protection function. The battery voltage display supports real-time display of the voltage of the entire battery group and the voltage of a single string, and the numerical accuracy can reach about 5mV. This product is suitable for ternary lithium and lithium iron phosphate batteries.
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The circuit board is sprayed with three-proof paint, which has excellent insulation, moisture-proof, leakage-proof, shock-proof, dust-proof, corrosion-proof, anti-aging, corona-resistant and other properties, which can effectively protect the circuit and improve the safety and reliability of the product.

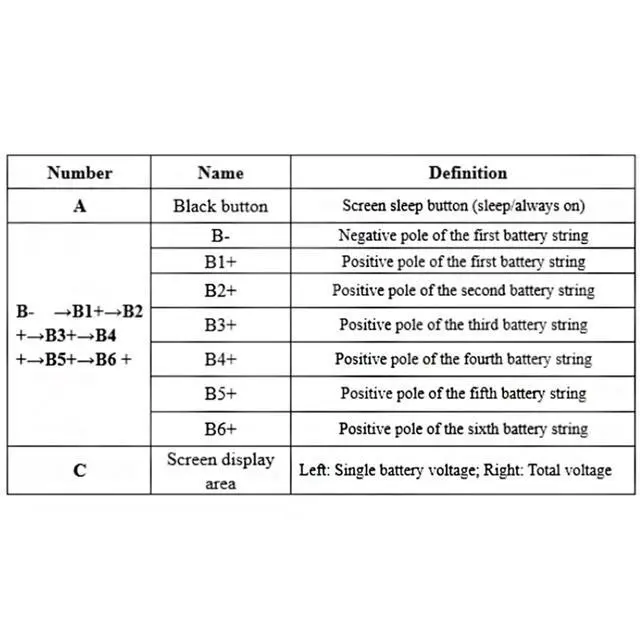

Description of the Connection Position
Main Technical Indicators for Active Balancer
Product model DS1004/DS1004C
Applicable string number 6S
Applicable battery type NCM/LFP/LTO
Operating voltage range NCM/LFP: 2.7 - 4.2V LTO: 1.8V - 2.7V
Balance voltage accuracy 5mV (typical)
Balance mode Active balance in which the entire battery group participates in energy conversion at the same time.
Balance current When the voltage difference is about 1V, the maximum balance current is 5A, and the balance current decreases as the voltage difference decreases. The minimum balance start voltage difference of the instrument is 0.01V
Undervoltage protection NCM/LFP: 2.7V LTO: 1.8V
Static working current 20mA
Workingenvironment temperature -10-60
External power No external power supply is required, and the whole battery group is balanced by relying on the internal energy transfer of the battery.
Precautions for Use
1. During use, the design parameters and usage conditions must be followed. The parameters of this specification must not be violated. Otherwise, the instrument may be damaged and the battery pack may be damaged.
2. During use, the cables must be connected to the battery in the order of the instructions. After checking, connect the instrument.
3. The product will generate a certain amount of heat during use. Avoid using the product in a high temperature environment.
4. If any abnormality occurs during use, please stop using it immediately, return it to the original factory or ask a professional maintenance person to repair it.
5. This balancer has undergone a lot of reliability tests, and its reliability is much higher than that of general equalizers on the market. At the same time, the process of the battery cell must be guaranteed to minimize the occurrence of combustion.

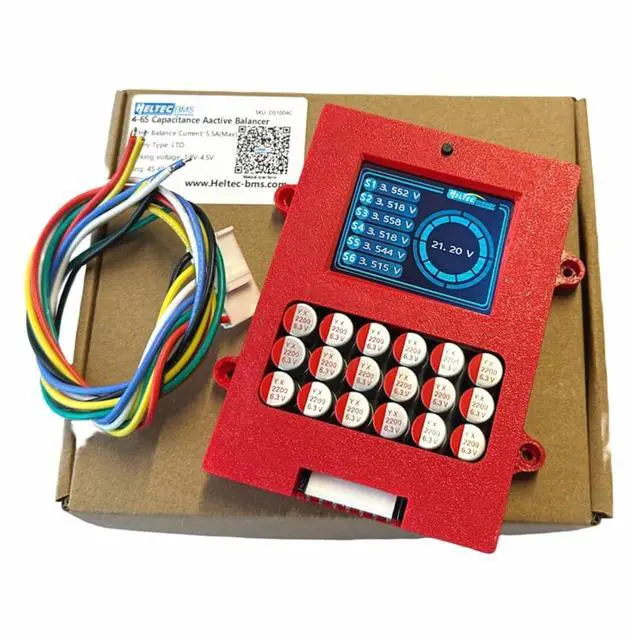

Package Include
Description of the Connection Position
Main Technical Indicators for Active Balancer
Product model DS1004/DS1004C
Applicable string number 6S
Applicable battery type NCM/LFP/LTO
Operating voltage range NCM/LFP: 2.7 - 4.2V LTO: 1.8V - 2.7V
Balance voltage accuracy 5mV (typical)
Balance mode Active balance in which the entire battery group participates in energy conversion at the same time.
Balance current When the voltage difference is about 1V, the maximum balance current is 5A, and the balance current decreases as the voltage difference decreases. The minimum balance start voltage difference of the instrument is 0.01V
Undervoltage protection NCM/LFP: 2.7V LTO: 1.8V
Static working current 20mA
Workingenvironment temperature -10-60
External power No external power supply is required, and the whole battery group is balanced by relying on the internal energy transfer of the battery.
Precautions for Use
1. During use, the design parameters and usage conditions must be followed. The parameters of this specification must not be violated. Otherwise, the instrument may be damaged and the battery pack may be damaged.
2. During use, the cables must be connected to the battery in the order of the instructions. After checking, connect the instrument.
3. The product will generate a certain amount of heat during use. Avoid using the product in a high temperature environment.
4. If any abnormality occurs during use, please stop using it immediately, return it to the original factory or ask a professional maintenance person to repair it.
5. This balancer has undergone a lot of reliability tests, and its reliability is much higher than that of general equalizers on the market. At the same time, the process of the battery cell must be guaranteed to minimize the occurrence of combustion.
Package Include
