Core G1/4" Temperature Sensor with C/F Display, Female to Female, Deep Black | G1/4 Internal Threads, Colour Display, NTC 10 kOhm Thermistor, -50 to 110 °C Range, 4-Pin Molex Power

It does not matter whether the system is equipped with hoses or hard tubes
Using an adapter with G1/4" external thread, the sensor can be used on all exposed G1/4" threaded openings on the radiator, reservoir, graphics card cooler or CPU cooler

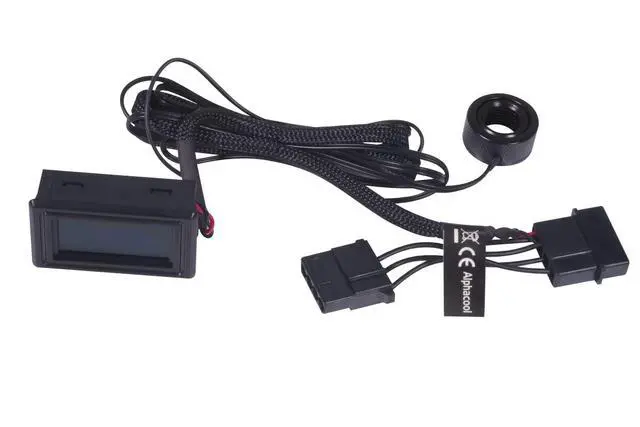

The Alphacool Core Sensor allows you to show temperature of the fluid inside your cooling loop. Thanks to the available colour display, the temperature can be read either in degrees Celsius or Fahrenheit. Integration made easy The Alphacool Core temperature sensor is very compact and can be integrated into any loop thanks to its two G1/4" internal threads. It does not matter whether the system is equipped with hoses or hard tubes. Using an adapter with G1/4" external thread, the sensor can be used on all exposed G1/4" threaded openings on the radiator, reservoir, graphics card cooler or CPU cooler.

Temperature sensor & display A classic NTC 10 kOhm thermistor is used as the sensor. The cable of the temperature sensor with a length of approx. 97 cm offers enough possibilities for a comfortable installation. Power is supplied via a 55 cm long cable with one male and one female 4-pin Molex connector. The readable temperature range is between -50 and 110 °C with a possible deviation of 0.1 °C. The display has a colour scale to keep track of critical temperature ranges at any time. Additional software for reading out the temperature ranges is not required.

Technical data Dimensions display: 47, 8 x 28, 2 x 16, 7 mm |
Typ Display: multi-coloured, indication optionally in °C or Fahrenheit |
Connection (sensor): G1/4" internal thread |
Sensor type: NTC 10 kOhm thermistor |
Power connection: 4-Pol-Molex (12 V) |
Power cable length: 550 mm |
Length sensor cable: 970 mm | Temperature measuring range -50 bis +110 Grad Celsius |
Color: Black
