Rubber Joist Isolators, U-Boat Floor Floaters for Sound Isolation, Fits Standard 2" Joists, EPDM Floor Decoupler, Made in the USA
- Made from high quality EPDM rubber - perfectly sized to snap standard 2" thick joist. Each U-Boat measures 1.5" wide x 2.125" tall x 2" long.
- Highly effective isolator - decouples floor joists from the subflooring and supports floor framing members, so far less footstep and airborne noise passes from one side of the structure to the other. A simple way to float a floor between levels.
- EASY INSTALLATION - simply snap onto the joist, no glue, nails, or screws. DIY-friendly for homeowners and fast for contractors on new construction or renovation projects.
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

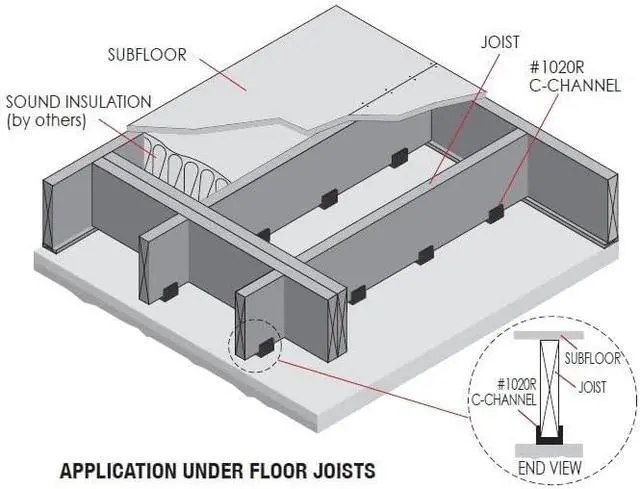

Install at both ends of every joist, then spread additional clips out every 16" along the joist. For 24" OC joist spacing, keep clips at a minimum of 16" OC and no more than 24" OC apart.
Ideal for home theaters, sound studios, recording booths, gyms, control rooms, and multi-family floors - anywhere you want to keep noise from traveling to the room below. Made in the USA.
EPDM Rubber U-Boat Floor Floaters (otherwise known as Damping Shoes or C-Channel Suspension Isolators) support and acoustically isolate floor framing members, i. e joists, to lessen the sound waves passing from one side of the structure to the other. The U-Boats are extruded from EPDM Rubber that is formulated to reduce or eliminate vibrations. Dimensions /
Specifics: U-Boats are shaped to accommodate standard joist dimensions, and molded to fit around the edge of any 2 by X joist.
Width: 1.5 ( 38.1 mm)
Height: 2.125 ( 54.0 mm)
Length: 2 ( 50.08 mm)
Thickness: Sides-. 313 ( 7.9 mm); Base-. 5 ( 12.7 mm)
Color: Black
High Quality: Made in the HSA What is EPDM? EPDM Rubber (Ethylene-Propylene-Diene-Monomer) is comparable to Neoprene Rubber, however it surpasses it in performance and is a more eco-friendly option. Specifically, it has outstanding resistance to abrasion, hydraulic fluids, alkalis, heat, ozone, and weather. How Many Do I Need? If Joist Spacing is 24 OC, U Boats should be installed at a minimum of 16 OC along the joist and should not exceed 24 OC. If Joist Spacing is between 12 and 16 OC, U Boats should be installed at a minimum of 16 OC along the joist and should not exceed 32 OC.
TIP: If Joist Spacing is 16 OC with U Boats installed at 16 OC on joist, multiply the total square footage of your room by 2/3 to calculate approximate U Boats needed.
Ideal for home theaters, sound studios, recording booths, gyms, control rooms, and multi-family floors - anywhere you want to keep noise from traveling to the room below. Made in the USA.
EPDM Rubber U-Boat Floor Floaters (otherwise known as Damping Shoes or C-Channel Suspension Isolators) support and acoustically isolate floor framing members, i. e joists, to lessen the sound waves passing from one side of the structure to the other. The U-Boats are extruded from EPDM Rubber that is formulated to reduce or eliminate vibrations. Dimensions /
Specifics: U-Boats are shaped to accommodate standard joist dimensions, and molded to fit around the edge of any 2 by X joist.
Width: 1.5 ( 38.1 mm)
Height: 2.125 ( 54.0 mm)
Length: 2 ( 50.08 mm)
Thickness: Sides-. 313 ( 7.9 mm); Base-. 5 ( 12.7 mm)
Color: Black
High Quality: Made in the HSA What is EPDM? EPDM Rubber (Ethylene-Propylene-Diene-Monomer) is comparable to Neoprene Rubber, however it surpasses it in performance and is a more eco-friendly option. Specifically, it has outstanding resistance to abrasion, hydraulic fluids, alkalis, heat, ozone, and weather. How Many Do I Need? If Joist Spacing is 24 OC, U Boats should be installed at a minimum of 16 OC along the joist and should not exceed 24 OC. If Joist Spacing is between 12 and 16 OC, U Boats should be installed at a minimum of 16 OC along the joist and should not exceed 32 OC.
TIP: If Joist Spacing is 16 OC with U Boats installed at 16 OC on joist, multiply the total square footage of your room by 2/3 to calculate approximate U Boats needed.
