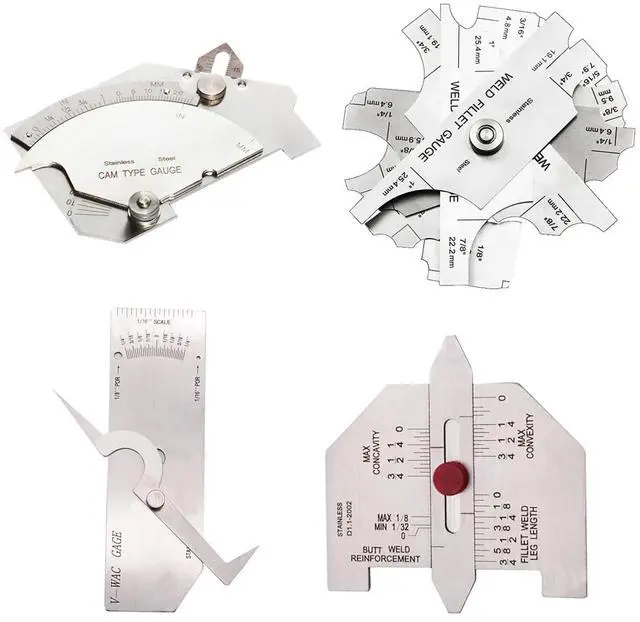

Weld Gauge Set Includes Cam Type Gauge and Weld Fillet Gauge and Porosity Undercuts Checking Gauge and Convexity Concavity Welding Gauge Inch

UNDERCUTS CHECKING GAUGE This Gauge Can Be Used to Check Undercuts Depth, Crown Height and Porosity. The Range is 0-1/4'' with 1/16'' Scale. With Fastening Screw to Read Measuring Result Easily.
CONVEXITY CONCAVITY GAUGE This Gauge Can Be Used to Check The Tolerance of Convexity And Concavity. The Range is 0-3/4''. With Fastening Screw Can Be Fixed at Any Point Which Is Convenient for Readings.

All Necygoo Products Come with 12 Months Warranty!
Features:

1. They are made of stainless steel, not easy to bend and wear, never rust.

2. The weld ruler, with fastening screws, can be fixed at any point which is convenient for readings.

3. All gauges are ground mechanically, so the face is smooth.

Specifications

Material: Stainless Steel
Color: Silver
Measure: Inch and Millimeter.

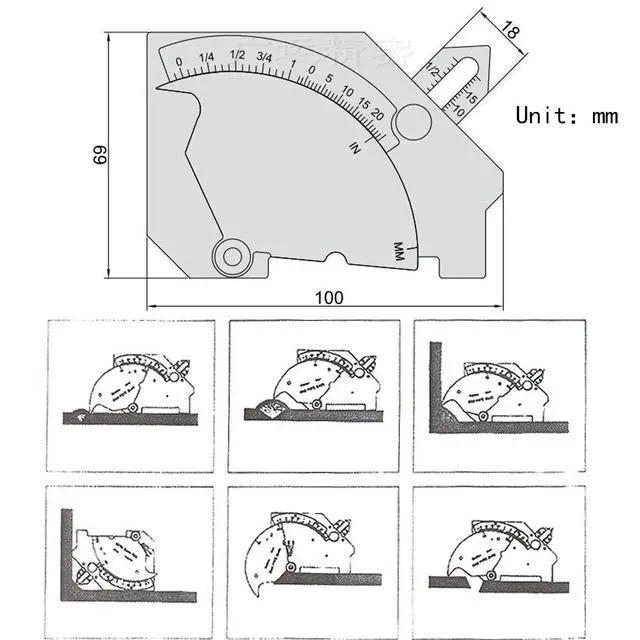

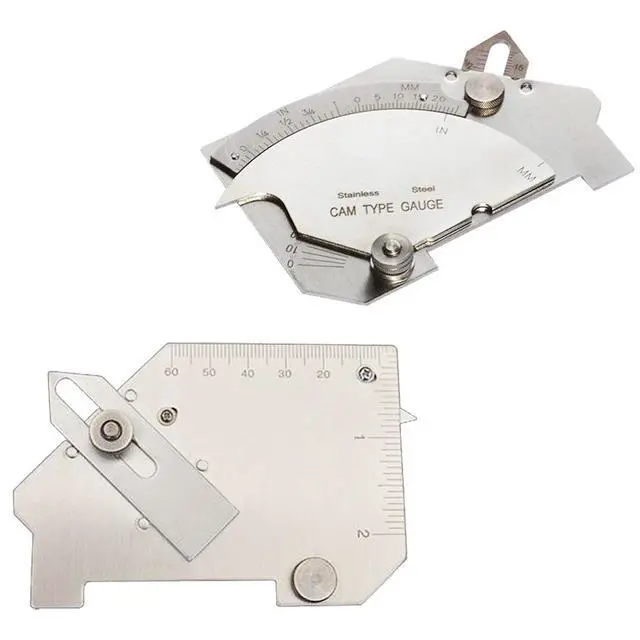

Cam Type Gauge:
Linear Measure Range: 0-60mm (0-2 in)
Curving Measure Range: 0-20mm (0-1 in)
Angle Measure Range: 0-60 Degree

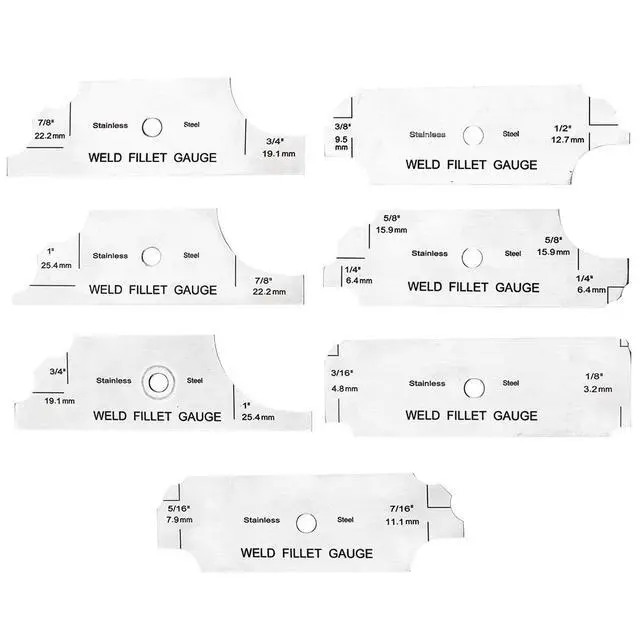

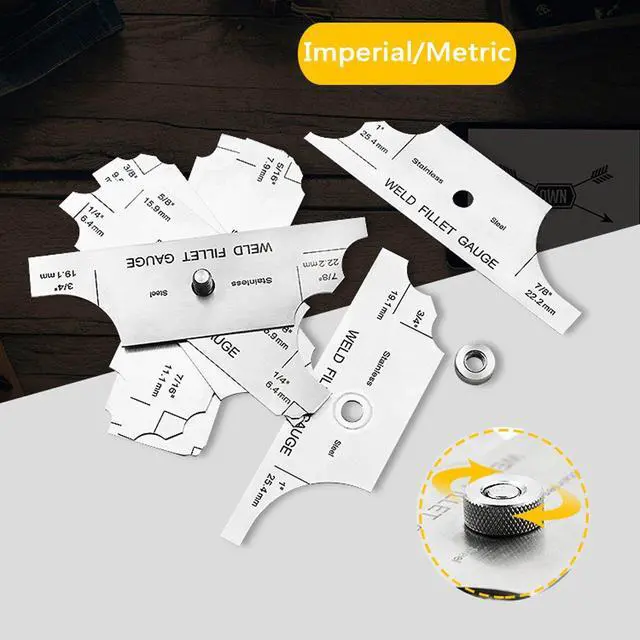

Weld Fillet Gauge:
Metric Measure Range: 3mm, 4mm, 5mm, 6mm, 8mm 9mm, 10mm, 11mm, 12mm, 14mm, 16mm, 19mm, 22mm, 25mm.
Accuracy: Less Than +/- 0.5 mm.
Imperial Measure Range: 1/8 ( 3.2 mm), 3/16 ( 4.8 mm), 1/4 ( 6.4 mm), 5/16 ( 7.9 mm), 3/8 ( 9.5 mm), 7/16 ( 11.1 mm), 1/12 ( 12.7 mm), 5/8 ( 15.9 mm), 3/4 ( 19.1 mm), 7/8 ( 22.2 mm), 1 ( 25.4 mm).
Accuracy: Less Than +/- 1/50.
Weight: 0.32 lb
Undercuts Checking Gauge:
Range: 0-1/4''
Increment: 1/64''
It can check the size in 1/16'', 1/8'', 3/16'', 1/4''.
It can check undercut depth, crown height, porosity comparison and so on.

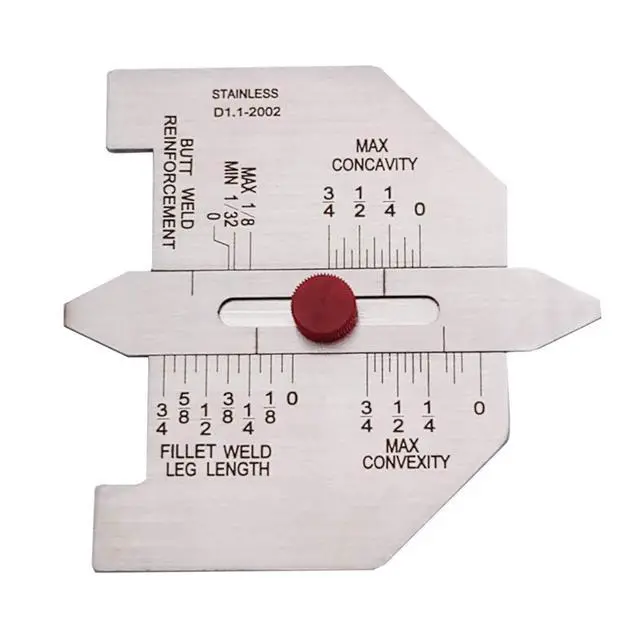

Convexity Concavity Checking Gauge:
Range: 0-3/4''
Increment: 1/4'' or 1/8''
It can check the size of convex or concave.
Package:
1 x Cam Type Gauge
1 x Weld Fillet Gauge
1 x Undercuts Checking Gauge
1 x Convexity Concavity Checking Gauge
4 x Instructions
4 x Pouches
