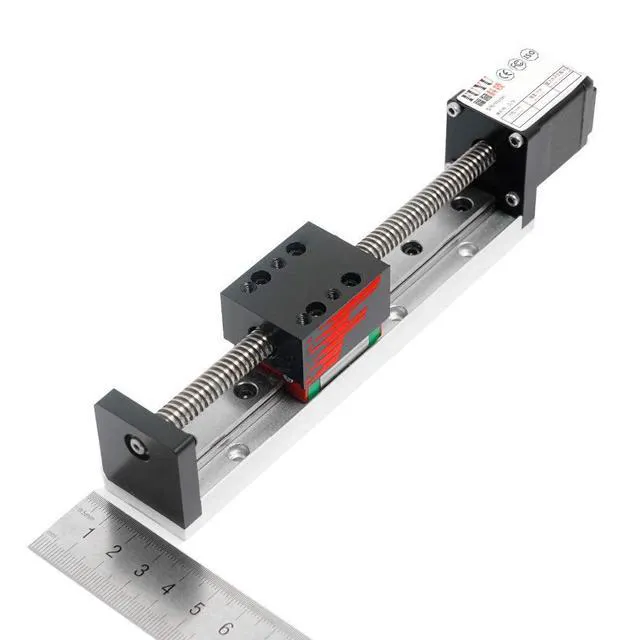

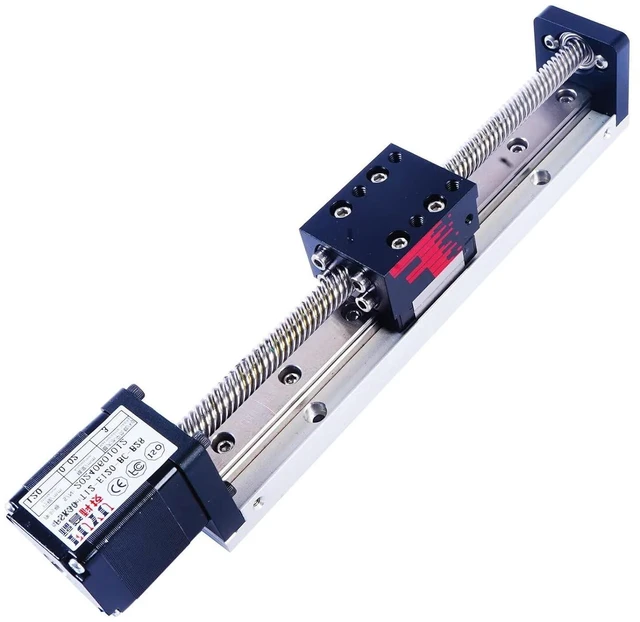

FSK30 Mini Linear Rail Small Slide Guide CNC Screw Lead Motion Table Motorized Nema 14 Stepper Motor[50mm Stroke Work Size]

FSK30 Mini linear guide made Tr8*2 screw as default screw model, have Tr8*4,Tr8*12 screw model for choice,contact us when need change screw model.
FSK30 linear guide are trapezoidal rods ball screw linear rails, with delicate design and strong practicability,it is the best choice for customers who require compact, light and micro linear guide.

• Linear guide with max horizontal loading 4kgs while max vertical loading 1kgs
• Linear guide Repeat position accuracy ±0.05mm
• Linear guide Effective stroke: 300mm, have muliti choice from 50mm to 300mm stroke
• Durable Nema 14 stepper motor has 10000 hours lifetime,have other motor for choice,send message to us when need change motor.

FSL30 series are trapezoidal rods ladder type screw linear guides, with delicate design and strong practicability,it is the best choice for customers who require compact, light and micro linear guide

Economical and practical screw module, high cost performance, suitable for medium and low load, medium speed requirements, stable environment conditions. It can be combined with single axis or multi axis, and it is convenient to match the workpieces required by various industries, so it becomes the most simple and practical manipulator.

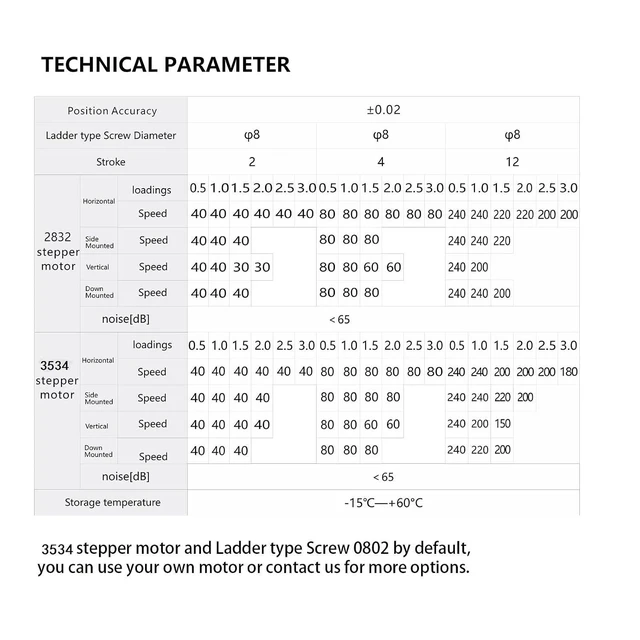

FSL30 300mm Stroke Version Linear Guide Specification

Motor Size: 35*34mm

Rated Current: 0.95A

Step Angle: 1.8°

Holding Torque: 60mN.m

Phase Quantity: 2

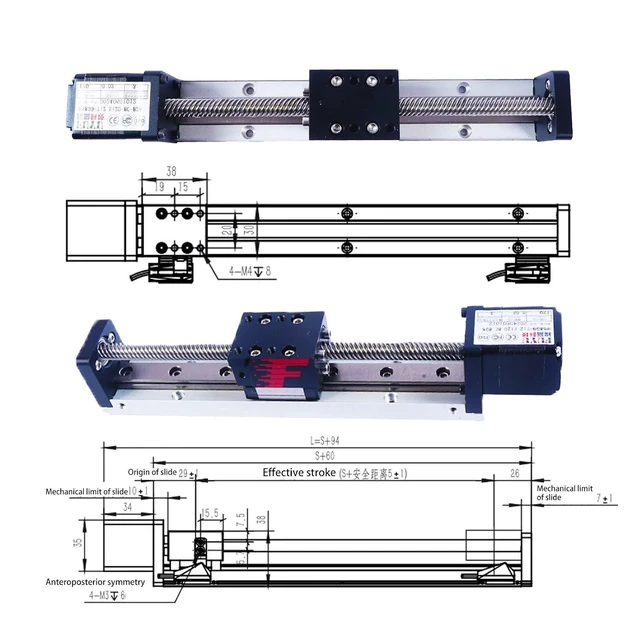

Effective Stroke: 50-300mm

Slide Quantity:1

Screw Model: Tr8*2

Movement Life: 10000 hours

Max Horizontal Loading: 6.6 pounds

Max Vertical Loading: 2.2 pounds

Max Horizontal Full Speed:70 mm/s

Max Vertical Full Speed:50mm/s

Max Speed Without Loading: 80mm/s

Noise: 65 dB(within 1 meter)

Default Nema 14 stepper motor, provide sufficient power, this kind of motor provide max 70mN.m holding torque

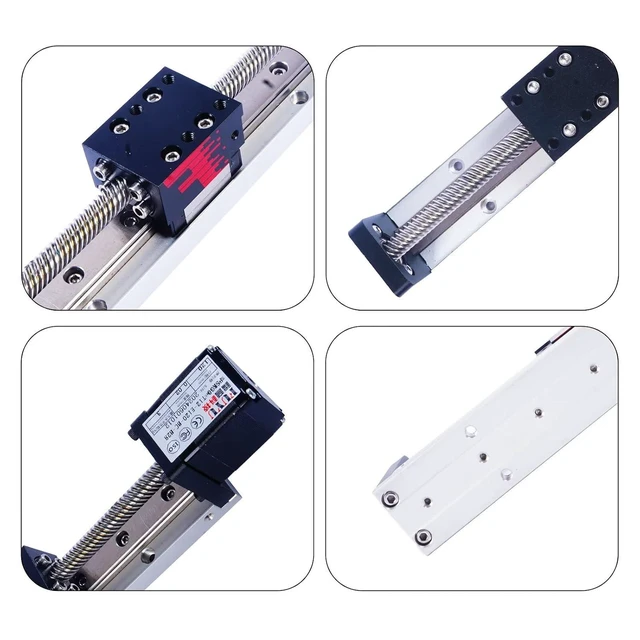

Aluminum alloy made motion slide, with blacken processing, 4 holes for installnation or fasten carried device, left and righ sides each have a same hole

Make high quality Tr8*2 trapezoidal rods ladder type screw as its default screw, also accept customization for Tr8*4 and Tr8*12 trapezoidal rods ladder type screw of FBM.

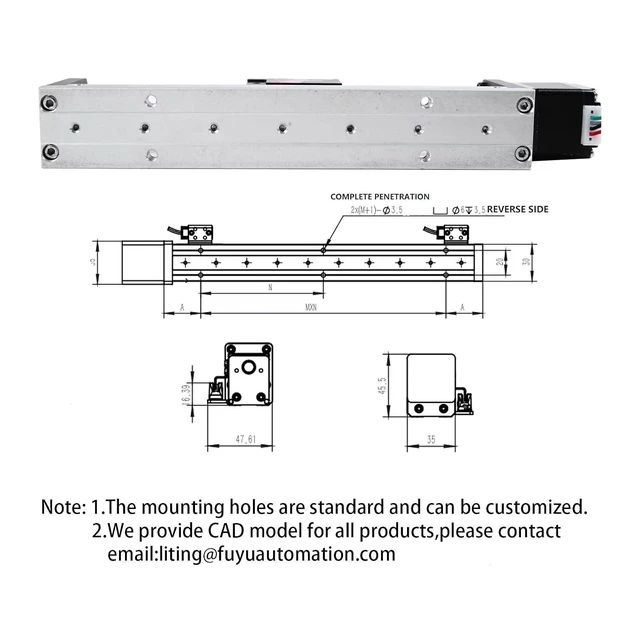

On the back of linear guide have 4 holes for installnation, make linear guide fixed on mechanical parts
