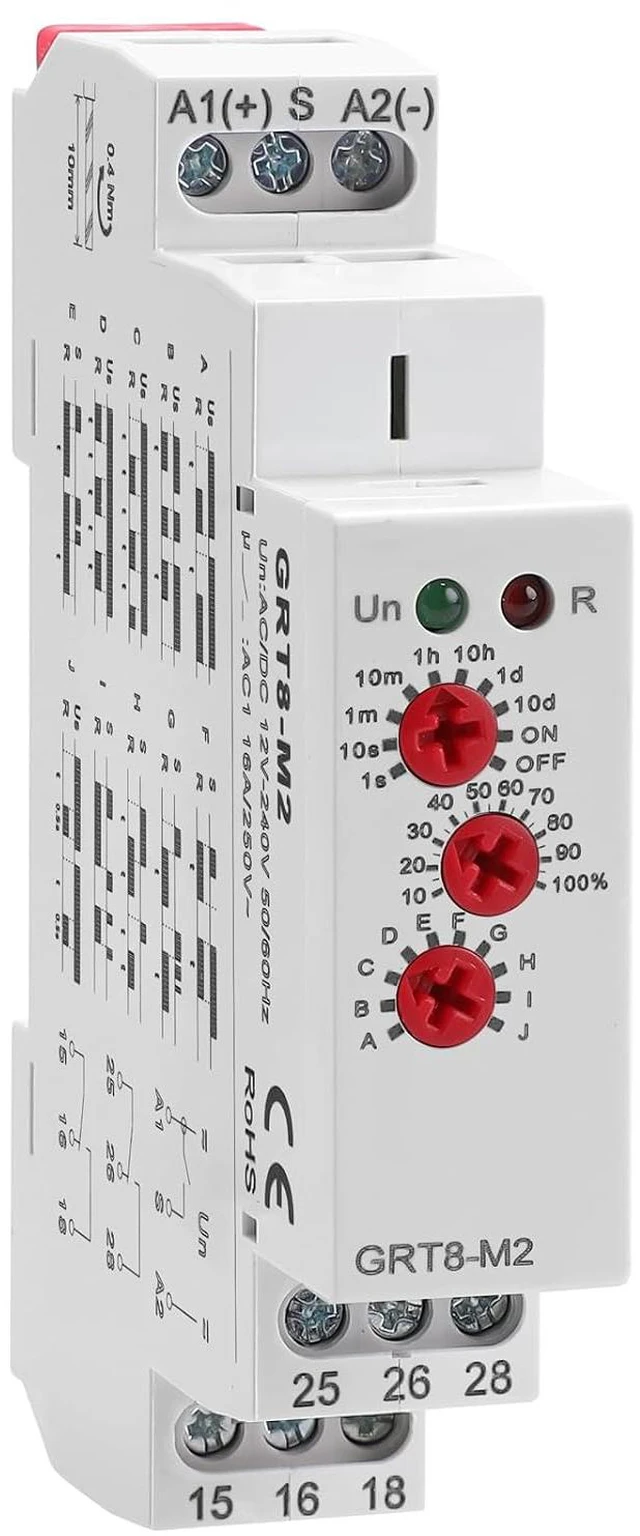

Multifunction Time Relay 16A Delay ON Off Time Relay GRT8-M2 AC DC 12-240V

Be the first to review this product...

FUNCTION & APPLICATION: GRT8-M2 multifunctional timer relay, can preset machine start or stop time, 5 time functions controlled by power supply voltage, 4 time functions controlled by control input, 1 latching relay function. It has a wide delay setting range from 0.1 seconds to 10 days, wide working voltage AC DC 12-240V (50-60Hz), rated current of 16A. Output contact: 2SPDT (2NO2NC). This 12V time delay relay can be used in industrial equipment, lighting manufacturing, heating element control, motors to accurately control the delay time of lighting, heating, motors, machines, etc

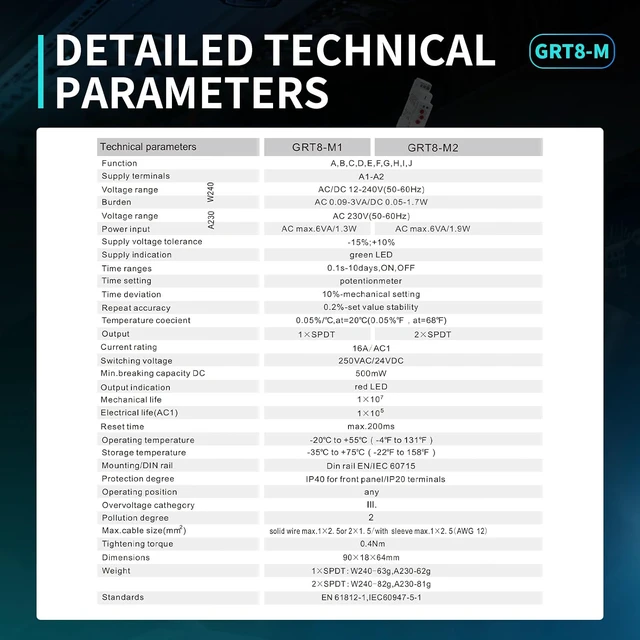

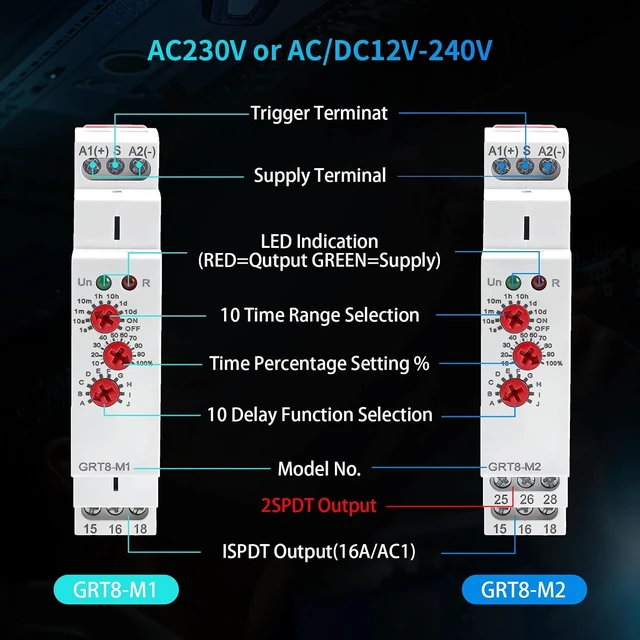

INDICATOR BUTTON: grt8 m2 ac dc 12-240v the working status of the delay relay is clearly indicated by the LED indicators:Green LED Indicator: always on (normal power supply), off (power abnormality).Red LED Indicator: on (relay is activated and working), off (relay has stopped working). Refer to the detailed technical parameters for further customization and optimal performance: a.

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

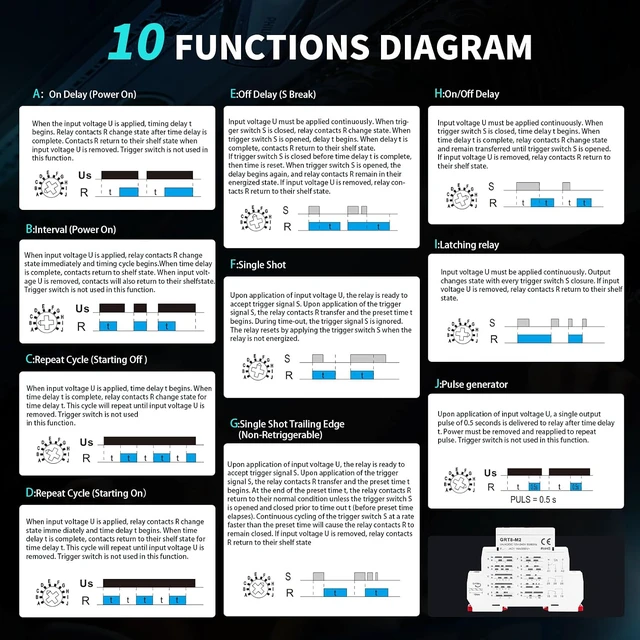

Model of GRT8 Time Relay: 1. GRT8-A: Delay ON time relay; GRT8-B: Delay Off time relay; GRT8-SAsymmetric Cycle Timer Relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT8-M: Multi functional time relay, covering GRT8 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ONand function E as shown in the figure, F,G,H,I,J

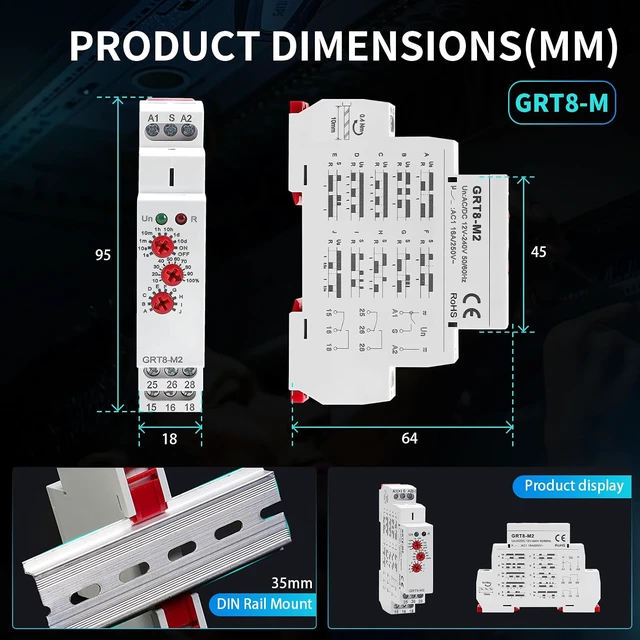

Designed time relay: The GRT8 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CECBRoHS The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3.37 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
WORRY FREE AFTER-SALES SERVICE: We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time
