1Pcs Type-C 18650 Lithium Battery Capacity Tester 8 Channel MAh MWh Digital Battery Power Detector Module Internal Resistance Tester Support Automatic Charge Discharge

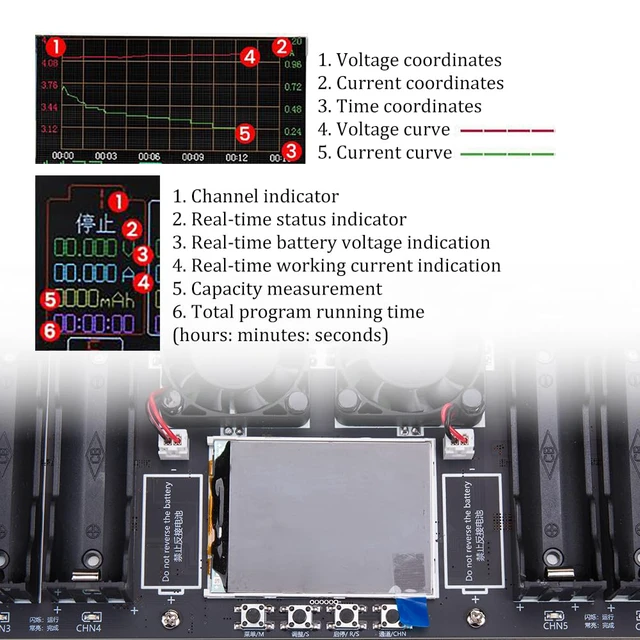

- 18650 battery holder using compact battery holder, suitable for flat battery measurement.Voltage and current curve display, real-time voltage and current, DC two-wire method to measure internal resistance, only for the same batch sorting analogy

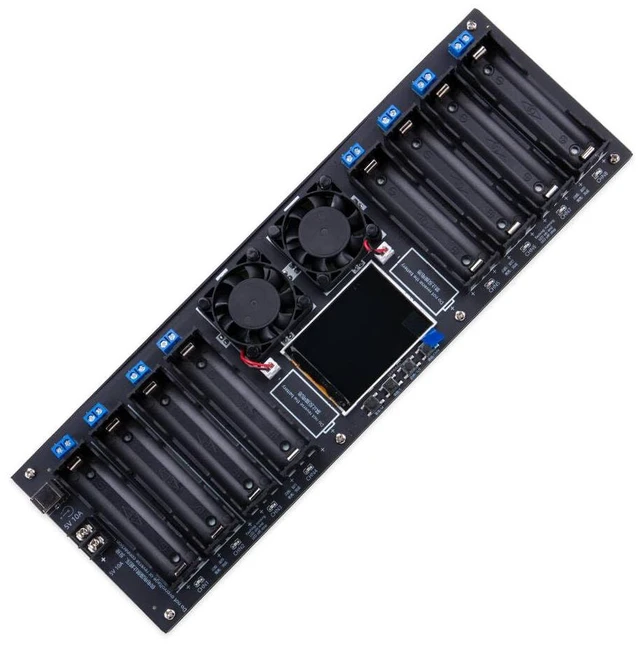

- 8 independent channels, each unrelated, independent operation, without mutual influence.support 8 channels to set up synchronisation, also can set up each channel parameter individually

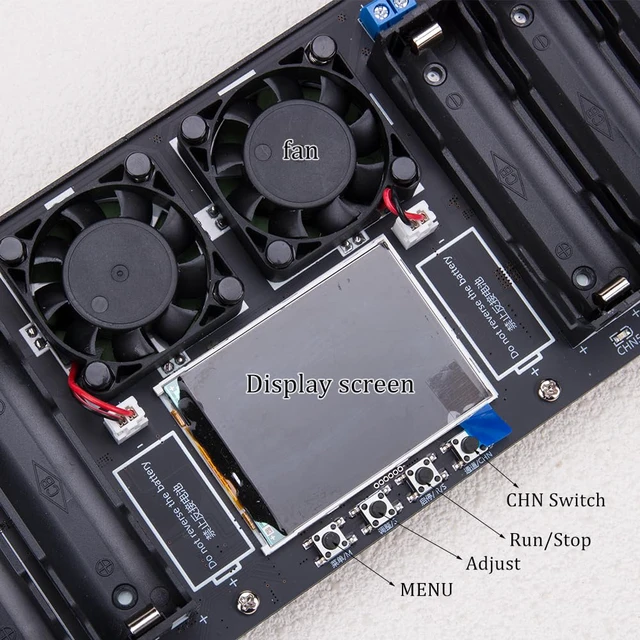

- The blue segment at the upper end is the external discharge terminal, and the lower end has the working indicator of the corresponding channel.U-shaped groove at the back is combined with PCB board, and the fan actively dissipates heat to form a heat dissipation channel
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

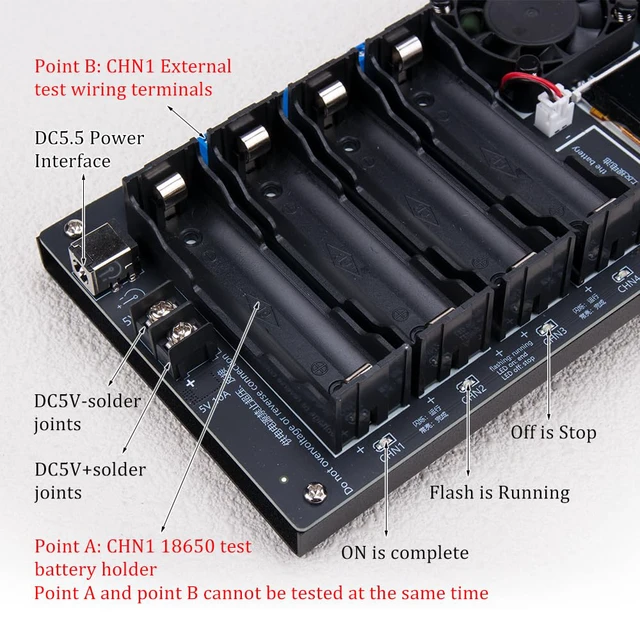

Only support charging-discharging-charging 1 cycle in automatic mode, do not support multiple cycles. support external test, can be discharged through the 2P terminal external, a single channel single time only and can only support the battery holder or external test in one, can not be used at the same time the battery holder and external battery test
Working voltage: DC5V 10A (standard bare metal, without power supply), overpressure must burn machine. Power supply reverse protection, prohibit reverse power supply
Working voltage: DC5V 10A (standard bare metal, without power supply), overpressure must burn machine. Power supply reverse protection, prohibit reverse power supply
