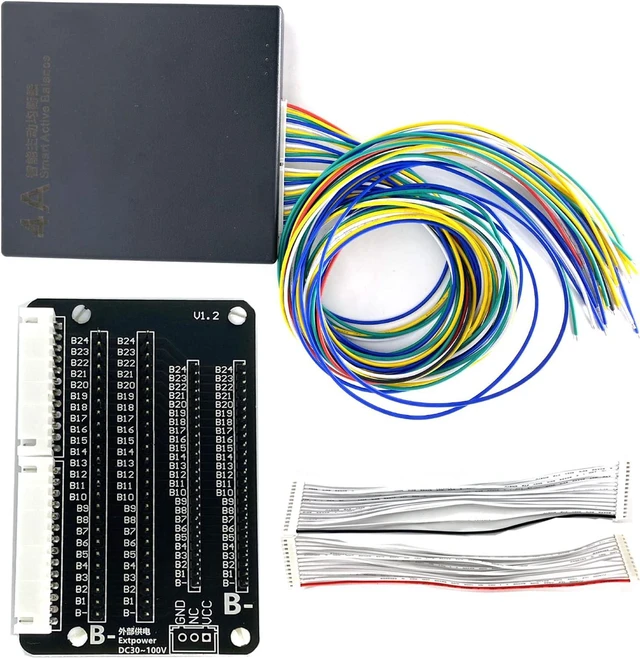

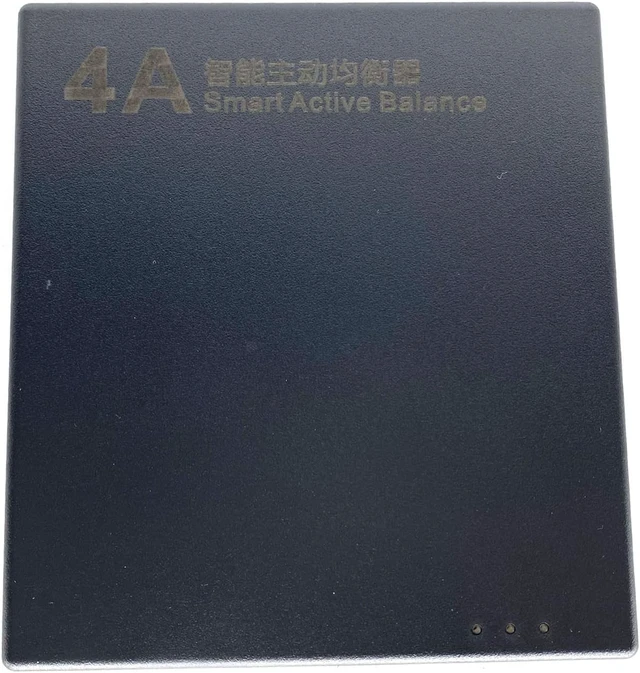

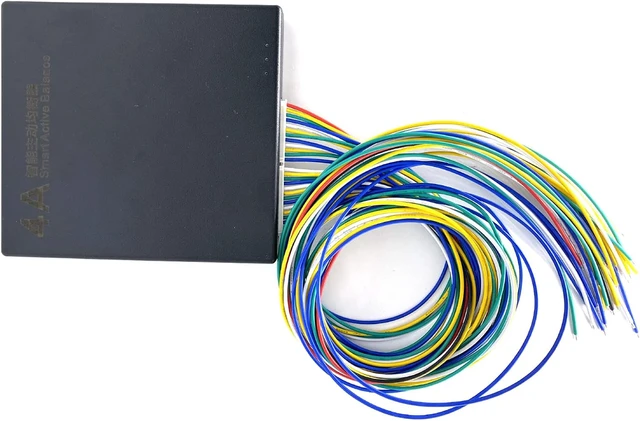

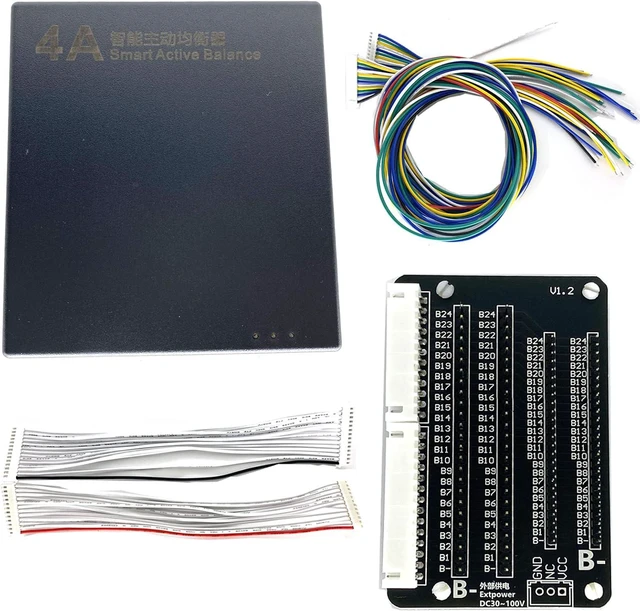

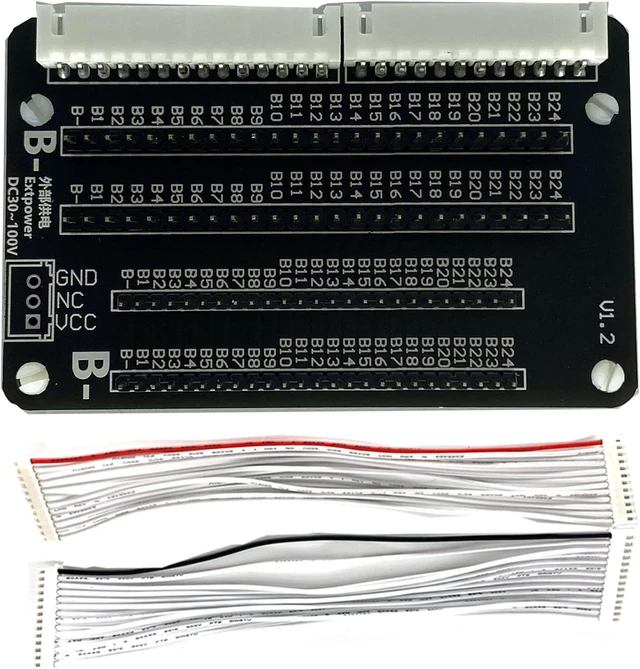

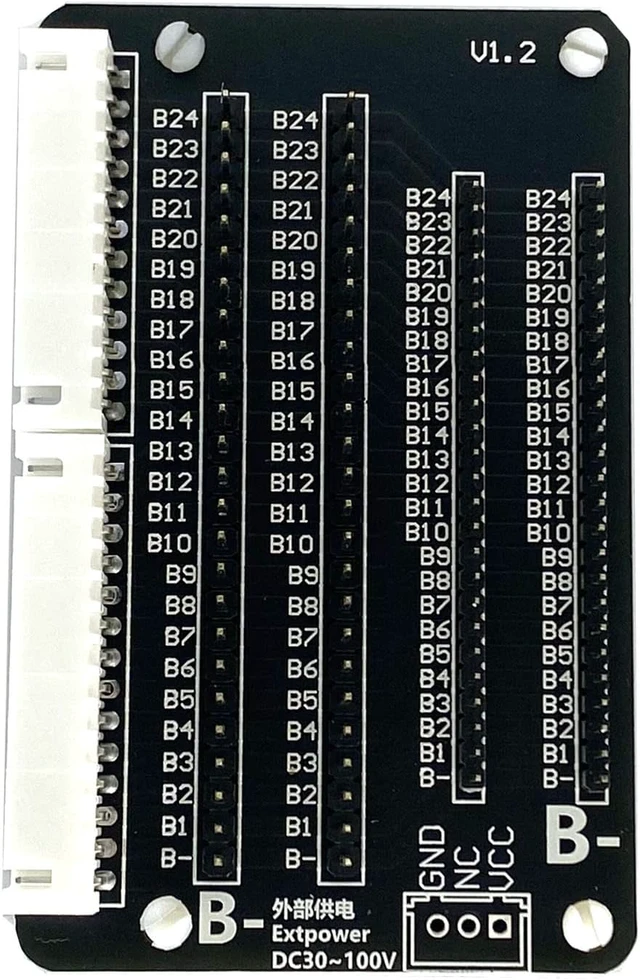

4A Active Equalizer 1mv Precision 8S 10S 14S 16S 20S 22S 24S 24V 48V Li-on Lifepo4 LTO Lithium Battery Capacitor Balancer with Docking Adapter
- [Product Information]: Before connecting the equalization board, check whether each piece of wiring is correct, insulation between the bottom board and the battery connection terminals is required to prevent burnout. With Bluetooth mobile phone English APP function, you can contact us about app use and usage instructions.Model:8S-24S ,Suitable : Lithium Iron Phosphate,Lithium Titanate,NCM Ternary Polymer (NCM/LFP/LTO),Voltage is 1.0 V-4.5V.
- [Capacitance Principle] capacitive energy transfer balance board, capacitor high precision 1mv, point-to-point energy transfer balance, patent balanced structure flying capacitor method, combining point-to-point energy transfer algorithm to achieve efficient balance, maximum balance current 4A,APP custom Settings :1-4A, due to the use of constant current constant voltage technology, balance current and battery voltage difference has nothing to do.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
[Protection
Switch]: The minimum total voltage of the battery pack is greater than 30V, the undervoltage hibernation voltage is 1.5 - 4.2V, the static working current is the balance of 10mA, the balance of 25m, the working environment temperature is -20 degrees to +55 degrees, there is no need for external power supply, the whole battery is balanced by internal energy transfer. equalizing capacitor can also be used in 3S 4S 5S 6S, but requires the addition of an additional booster power supply.

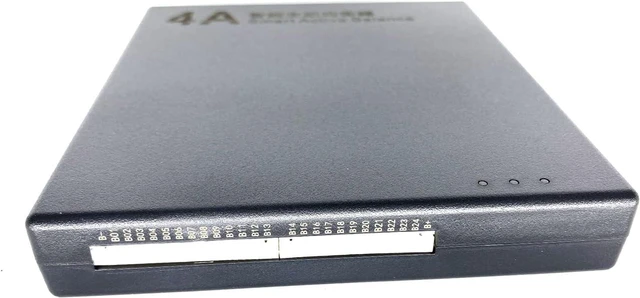

[3 Indicator Light]: Blue Bluetooth status indicator
Steady on: The Bluetooth connection is successful.
Blinking: the Bluetooth link is down. Red Fault status indicator Steady on, it indicates an internal fault. The battery flicker test failed. Procedure Green The working status indicator is steady on, indicating that the balance is complete. Flash and balance are working.
Switch]: The minimum total voltage of the battery pack is greater than 30V, the undervoltage hibernation voltage is 1.5 - 4.2V, the static working current is the balance of 10mA, the balance of 25m, the working environment temperature is -20 degrees to +55 degrees, there is no need for external power supply, the whole battery is balanced by internal energy transfer. equalizing capacitor can also be used in 3S 4S 5S 6S, but requires the addition of an additional booster power supply.
[3 Indicator Light]: Blue Bluetooth status indicator
Steady on: The Bluetooth connection is successful.
Blinking: the Bluetooth link is down. Red Fault status indicator Steady on, it indicates an internal fault. The battery flicker test failed. Procedure Green The working status indicator is steady on, indicating that the balance is complete. Flash and balance are working.
