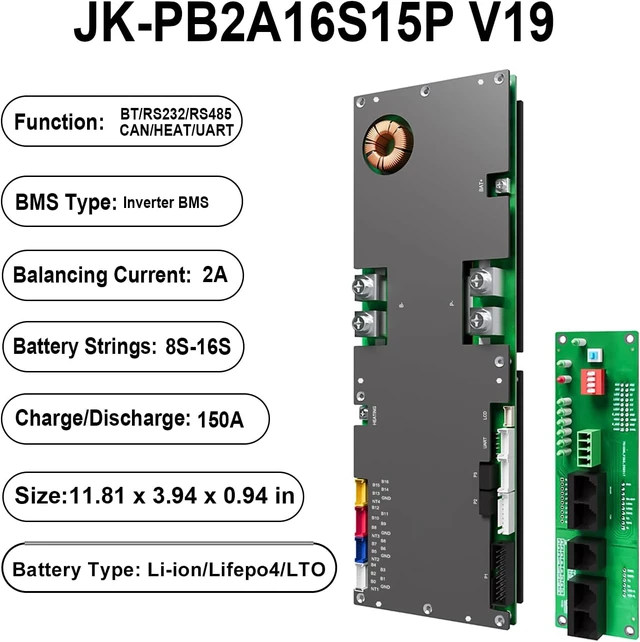

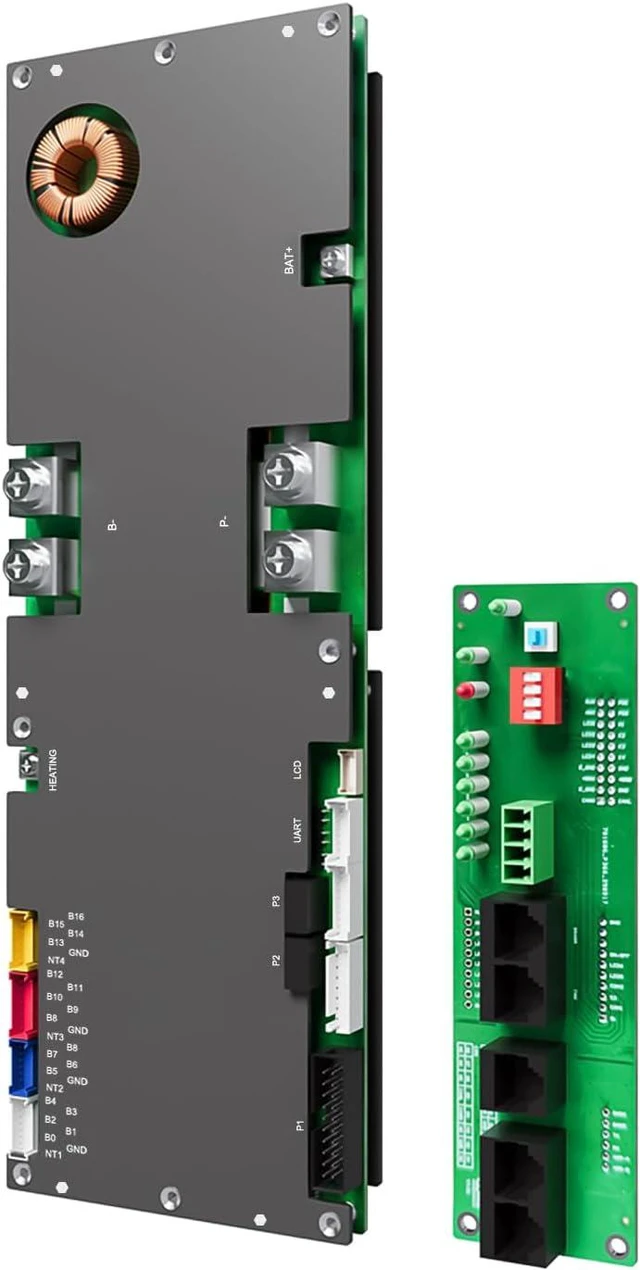

JK-PB2A16S15P V19 8S-16S 24V-48V 150A Inverter BMS, 2A Active Balance
- 150A CURRENT CAPACITY: Supports 150A continuous charge and discharge, with maximum discharge current up to 300A. Combines added load capacity with 2A balancing for solar storage and home backup systems
- 2A ACTIVE CELL BALANCING: Helps manage voltage differences between cells in large-capacity battery banks. Cell voltage acquisition accuracy of ±3 mV supports detailed monitoring and system configuration
- BLUETOOTH APP MONITORING: View cell voltage, pack voltage, current, temperature, remaining capacity, state of charge and alarms. Adjust voltage, current and temperature protection parameters for the selected battery cells
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
INVERTER AND DISPLAY COMMUNICATION: CAN and dual RS485 support compatible inverter protocols, while UART connects a compatible JK BMS display. PC software is supported for configuration and battery data monitoring
BATTERY AND SYSTEM PROTECTION: Monitors overvoltage, undervoltage, overcurrent, temperature and short-circuit conditions. Also supports charge-current limiting, heating control, dry contacts and up to 16 networked BMS units
BATTERY AND SYSTEM PROTECTION: Monitors overvoltage, undervoltage, overcurrent, temperature and short-circuit conditions. Also supports charge-current limiting, heating control, dry contacts and up to 16 networked BMS units
