Mesh Node T114 Low-Power nRF52840 SX1262 LoRa Development Board with 1.14" TFT-LCD Display, Compatible with Meshtastic/LoRaWAN
- Mesh Node T114 is a Low Power Consumption development board based on nRF52840 and SX1262 and supports LoRa and Bluetooth 5.0. Compatible with
- With Heltec nRF52 development environment and libraries. you can use it for LoRa/LoRaWAN development work, and also use it to run some open source projects, such as Meshtastic

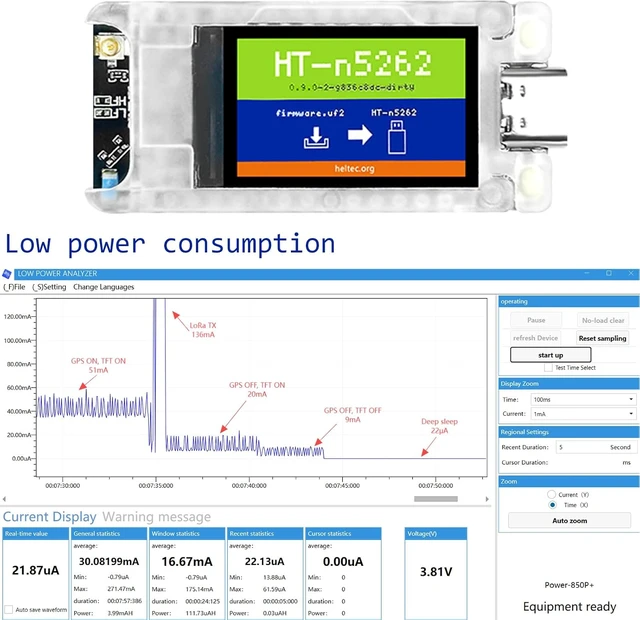

- Integrates various power interfaces (5V USB, lithium battery, and solar panel), has powerful long-distance communication capabilities, scalability, and low power design
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Onboard 1.14 inch TFT-LCD display contains 135 (H) RGB x240 (V) dots and can display up to 262k colors

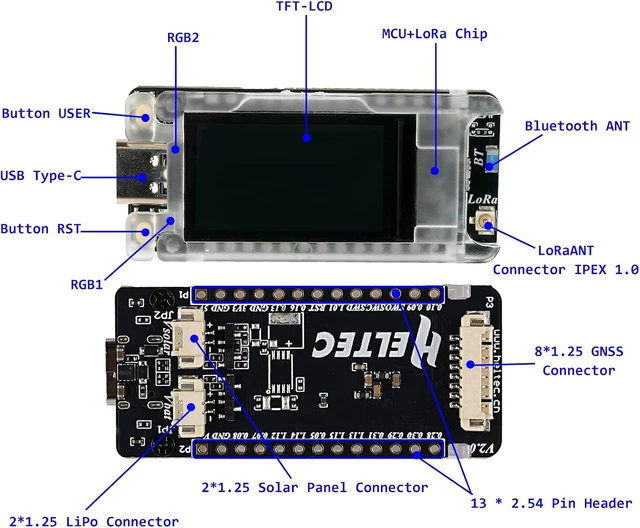

Various Interfaces: 1.25 *2P LiPo connector, 1.25 *2P Solar panel connector, 1.25 *8P GNSS module connector, which greatly increase the extensibility of the board. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures

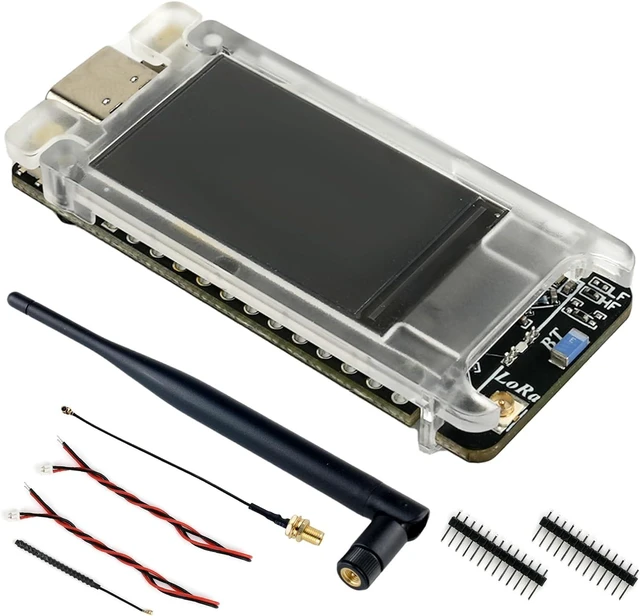

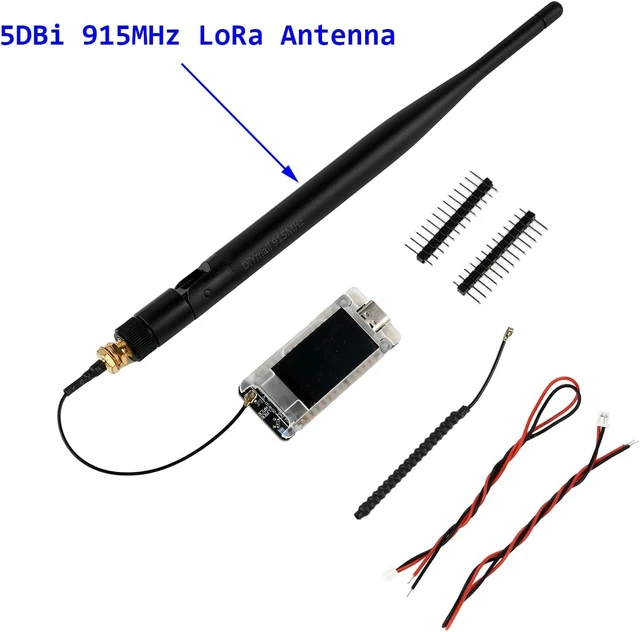

What you will get: 1 x Mesh Node T114 + 1 x LoRa Antenna + 1 x 5DBi 915MHz LoRa Antenna + 2 x SH 1.25 ×2 Battery Connector + 2 x 2.54 *13 Header Pin
Various Interfaces: 1.25 *2P LiPo connector, 1.25 *2P Solar panel connector, 1.25 *8P GNSS module connector, which greatly increase the extensibility of the board. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures
What you will get: 1 x Mesh Node T114 + 1 x LoRa Antenna + 1 x 5DBi 915MHz LoRa Antenna + 2 x SH 1.25 ×2 Battery Connector + 2 x 2.54 *13 Header Pin
