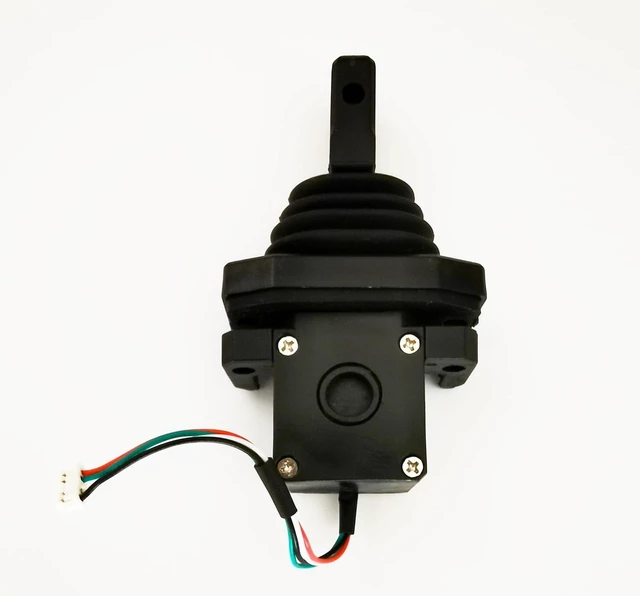

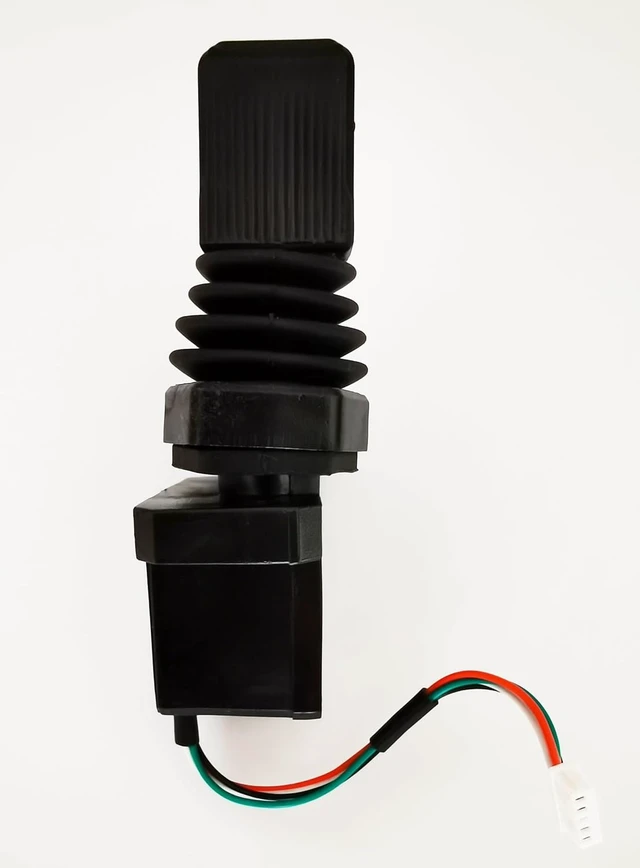

Compact Hall Effect Single-Axis Fingertip Joystick Controller, Industrial Remote Control Handle

Be the first to review this product...

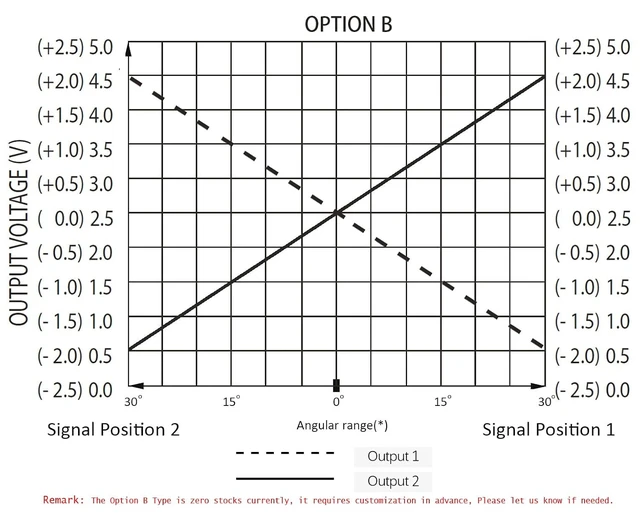

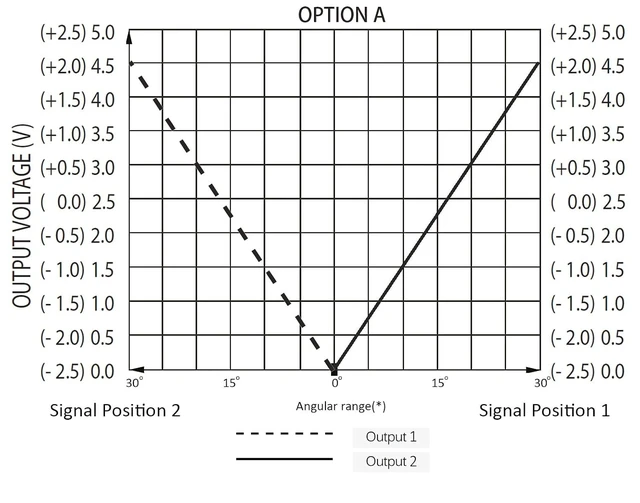

ELECTRICAL SPECIFICATIONSOutput Voltage Range: 0V-0.5V-2.5V-4.5V, Power Supply: 5 V ±0.5 Vdc, <30 mA, Overvoltage max: +24 Vdc, Output impedance: 10 . (The Output type Option A is in stock, please make sure if it matchs your machine before purchasing, And Output type option B requires customization)
MECHANICAL SPECIFICATIONSOperating Force: 3.4 N(0.76lbf), Maximum Load: 50 N(11.24lbf), Mechanical Angle of Movement: ±30° X axis, Expected Mechanical Life: 5 million lifecycles, Mass/weight: 45 g (1.59 oz) nominal, Lever Action (centering): Spring

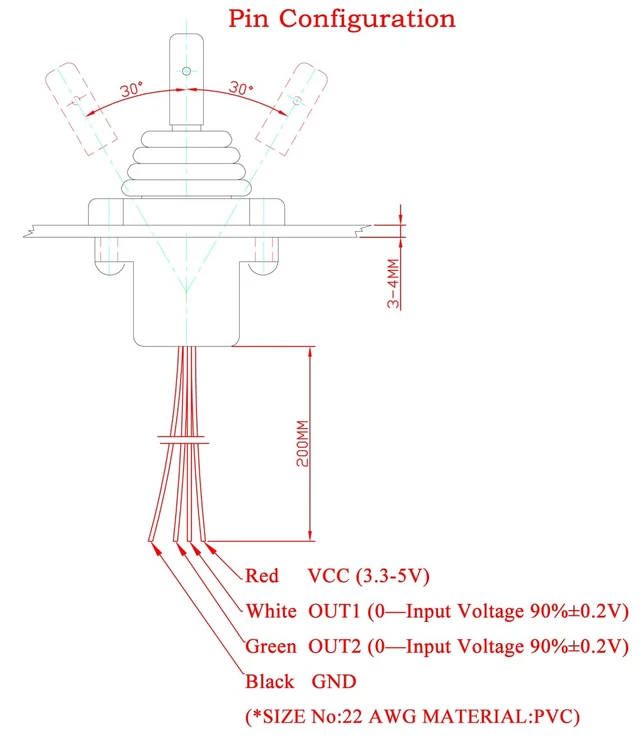

CONNECTIONS: The industrial joystick is fitted as standard, for details on pinout configuration, please refer to attached imaging.

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

ENVIRONMENTAL SPECIFICATIONSOperating Temperature: -30 °C to +70 °C Storage Temperature: -40 °C to +85 °CSealing: IP67 (above panel subject to handle and final specification)
MOUNTING: Slotted mounting holes of the thumb joystick should be L25.5 mm, W12.5 mm. The panel thickness should <4mm. When mounting the joystick, care should be taken to site it in a position that does not make it vulnerable to damage when in use. The joystick parts on the underside of the panel, must not be exposed to excessive humidity or dust.
