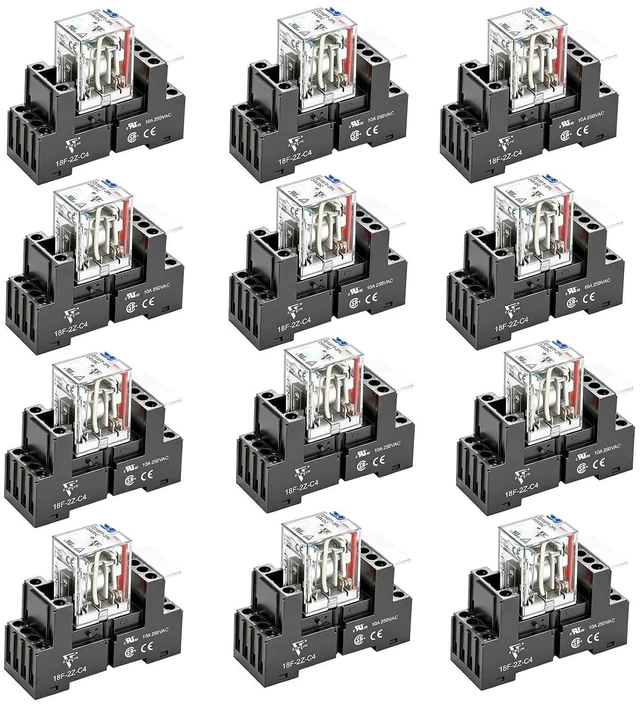

UL Listed 12Pcs Electromagnetic Power Relay, Din Rail 8-Pin 10Amp 24V DC with Test Button & LED Indicator, 2NO 2NC DPDT for PLC
- [ UL Listed ] Electromagnetic Relay Pass UL, CE, and TUV Listed. The socket is UL/CE/CSA certified, meeting international safety standards for reliable use in diverse electrical scenarios.

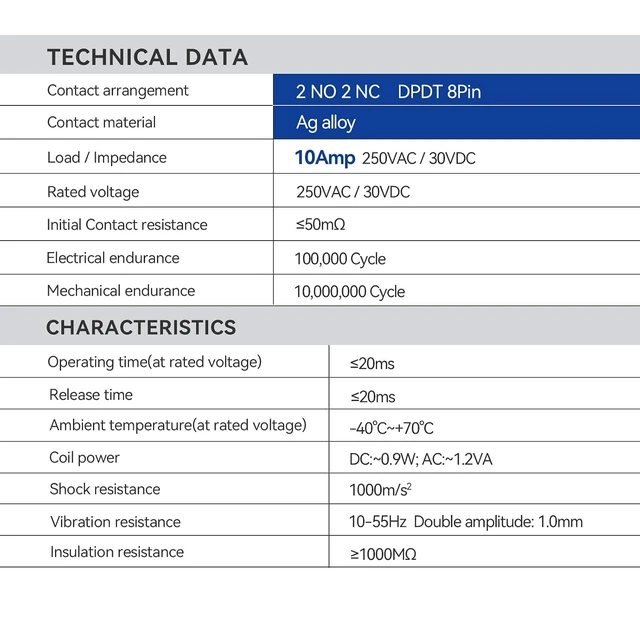

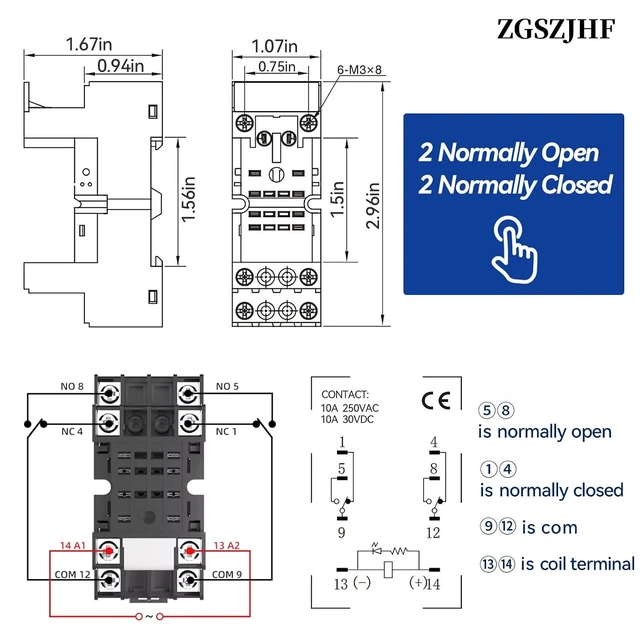

- [DC 24 volt relay] Coil Voltage: DC 24V; Contact Capacity: 10Amp.Type: 2NO 2NC DPDT; Number of Terminals: 8 PIN; Mount Rail: 35mm DIN Rail; DIN Rail length: 133mm/5.24inch.

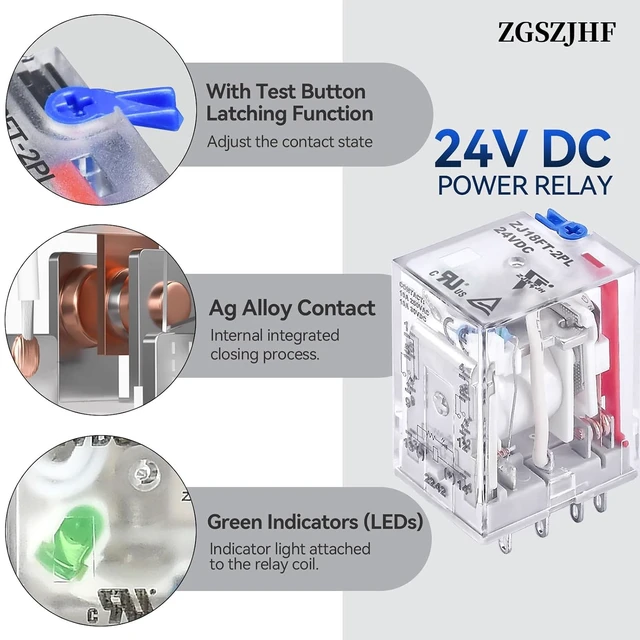

- [ Manual Test Button ] Convenient test key enables instant contact state adjustment, facilitating quick debugging and boosting work efficiency.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
[ Writing Tad] Markable Plate & Anti-Slip Design: The relay base is equipped with a markable plate for easy notation; install the hook first then the relay to prevent slipping.

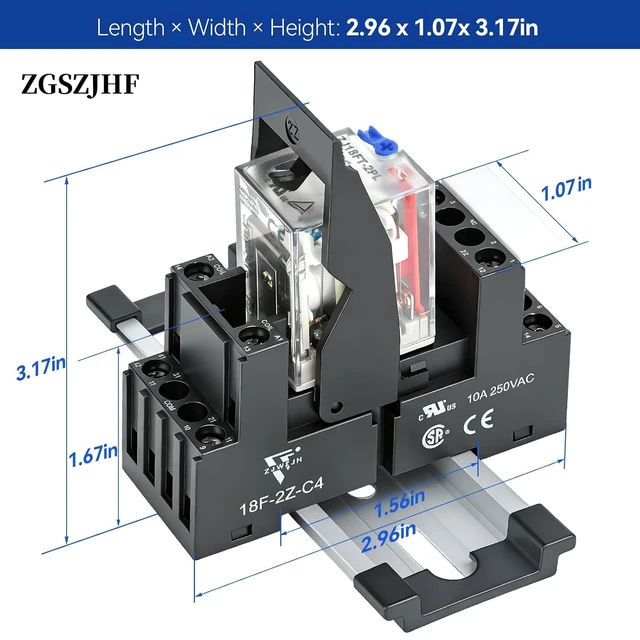

[Package] Content: 12 x Relay and Socket, 3 x Mounting guide rail aluminum (230mm), 6 x Fixing Clip, 8 x Screws. Overall size(approx. ): 75 x 29 x 65mm / 2.95 in × 1.14 in × 2.56 in (L*W*H)
[Package] Content: 12 x Relay and Socket, 3 x Mounting guide rail aluminum (230mm), 6 x Fixing Clip, 8 x Screws. Overall size(approx. ): 75 x 29 x 65mm / 2.95 in × 1.14 in × 2.56 in (L*W*H)
