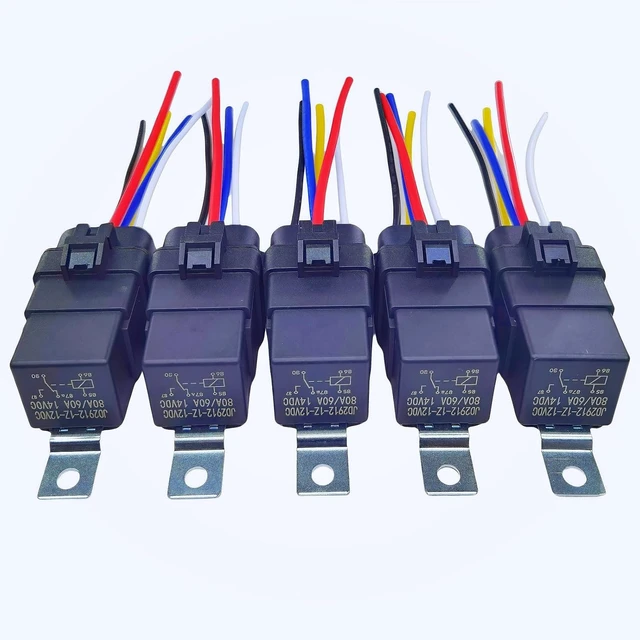

80/60 Ampere 12V DC Automotive Relay (5PCS)

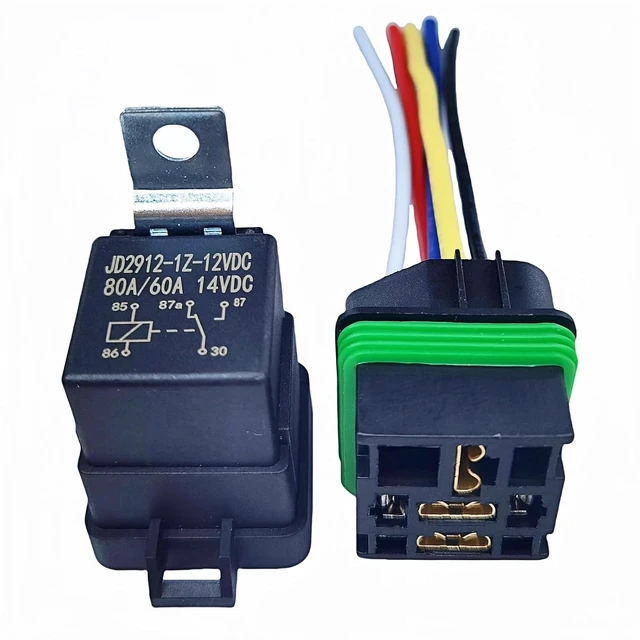

- Product Description: 12-volt direct current (up to 14 volts) waterproof 5-pin connector SPDT (single-pole double-throw) pure copper coil relay. The contact working voltage is 12 volts, the coil power is 1.8 watts, the maximum switching current is 80-amps, and the rated current is 60 amps. It is recommended to use within the rated current range.

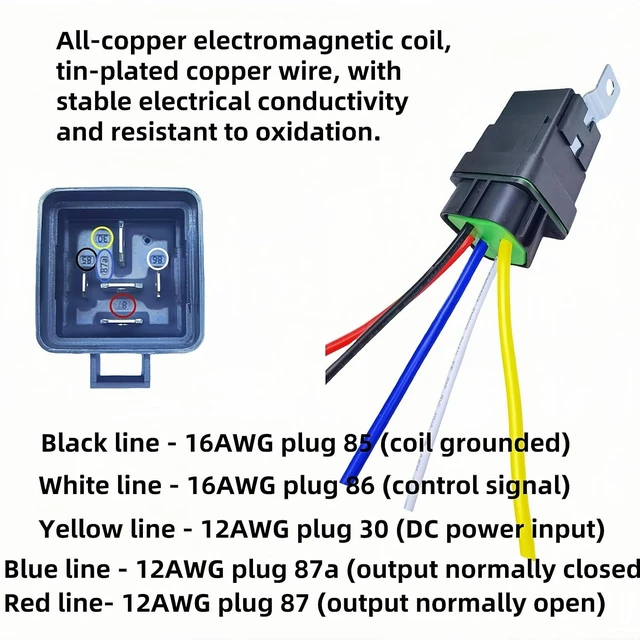

- [Wire Harness Specifications]: American standard wire gauge 12/16 AWG wire harness. Black - 16AWG plug 85 (coil grounded), White - 16AWG plug 86 (control signal), Yellow - 12AWG plug 30 (DC power input), Blue - 12AWG plug 87a (output normally closed), Red - 12AWG plug 87 (output normally open). (To ensure safe use, the specific interfaces corresponding to the colors are red, black, yellow, white, and black, blue wires. You can open the relay connection port to check the corresponding numbers, or use a multimeter to measure and determine.)
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
[Material] 5 needle waterproof relay adopts pure copper core cable, tinned copper wire, with good electrical conductivity and stable performance. The relay kit is made of high grade flame retardant material, which is not easy to fuse at high temperature, ensuring safe use and long service life.
Waterproof and Dustproof: The connection between the relay wiring harness and the socket adopts a high-quality rubber ring connection component. Therefore, it has waterproof and dustproof functions, which can effectively protect the internal circuits and prevent leakage.

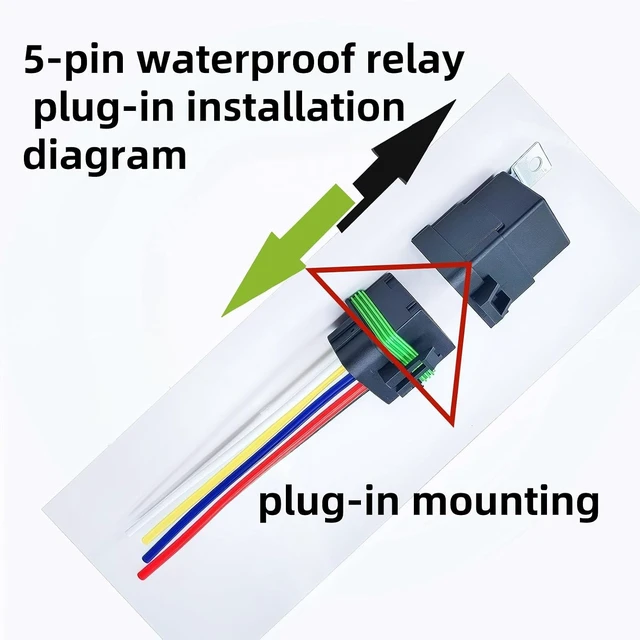

[Easy Installation]: The picture includes a wiring circuit diagram. The metal mounting holes are pre-fixed. The installation is very simple. You can follow the description in the second point to connect the wires according to the color-coded lines, or measure with a multimeter to determine the connection.
Waterproof and Dustproof: The connection between the relay wiring harness and the socket adopts a high-quality rubber ring connection component. Therefore, it has waterproof and dustproof functions, which can effectively protect the internal circuits and prevent leakage.
[Easy Installation]: The picture includes a wiring circuit diagram. The metal mounting holes are pre-fixed. The installation is very simple. You can follow the description in the second point to connect the wires according to the color-coded lines, or measure with a multimeter to determine the connection.
