CH-3420 30W 24V DC Gear Motor, 7000RPM CW/CCW with 20A PWM Speed Controller & Bracket

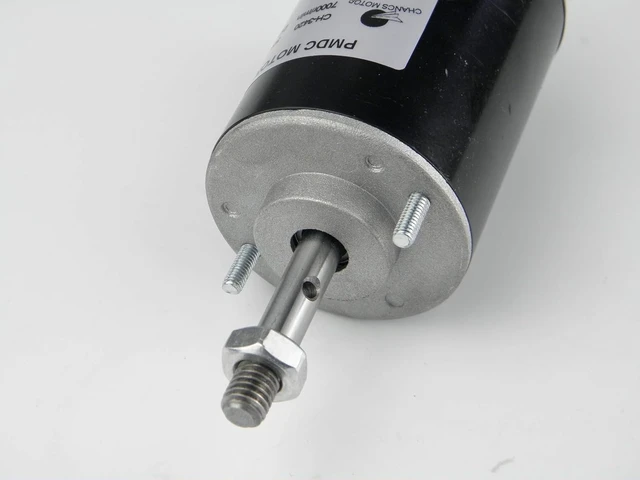

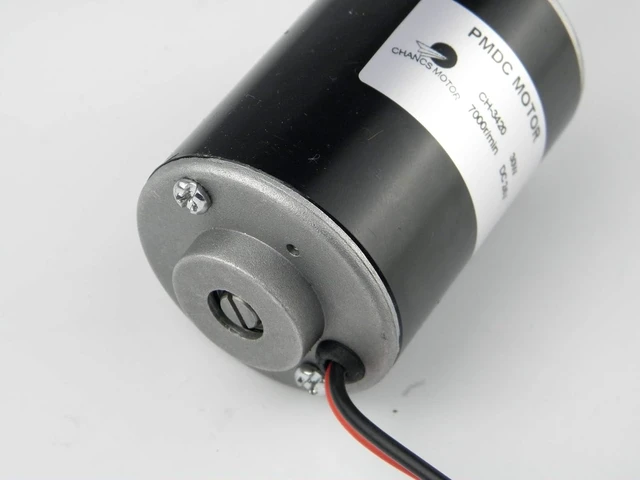

- *This DC permanent magnet motor features small size, stable performance, high speed with little noise and CW/CCW rotation. Ball bearing, small friction, strong oil seal, high bearing capacity It's all-metal construction, so it's strong and durable. Provide two threaded screw outlet for easy connection.

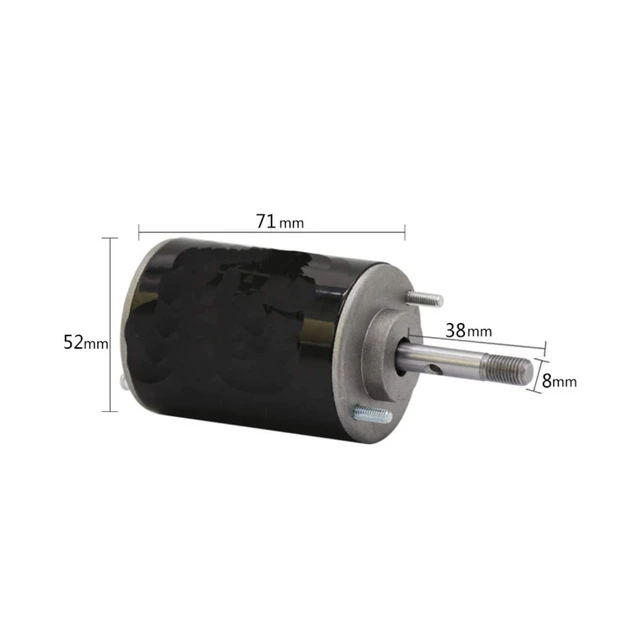

- *The specification of motor: Rated Voltage: DC 12V, Unloaded Speed: 3500RPM, Load Speed: 2400RPM Rated Voltage: DC 24V, Unloaded Speed: 7000RPM, Load Speed: 5100RPM;Rated Current:2.42-3.37A; Rated power : 30W; Shaft: Threaded Shaft, Size:51*70mm; Shaft diamater:8mm; Shaft length: 38mm, Rotation:CW/CCW.
- *The specification of bracket: Length: 57.5mm; Width:41mm; Height: 51mm; The measured size data may be subject to some errors.
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

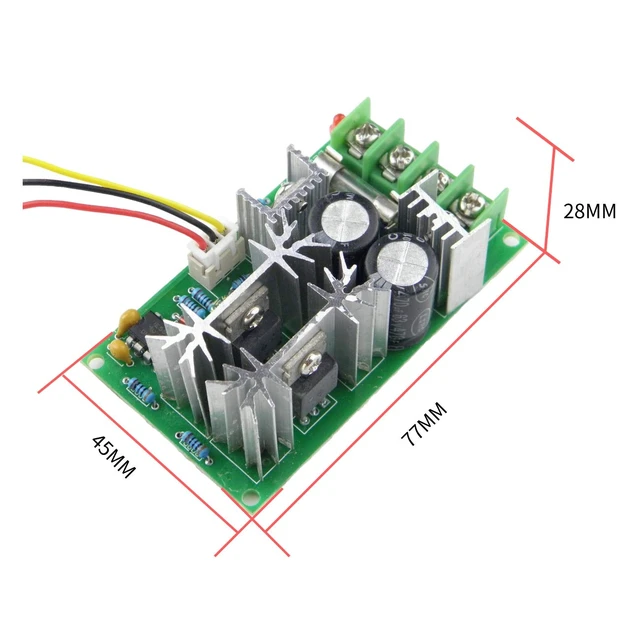

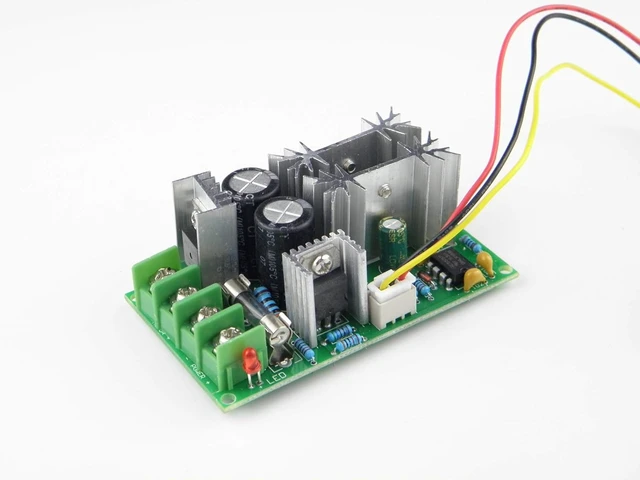

*The specification of the speed controller: Input
Voltage: DC 10V-DC 60V (Ultra wide working voltage), Output
voltage: linear under load, Control
Power: 0.01 -1200W, Rated
Current: 10A, Max
Current: 20A (Long-term use of 10A, 450W or less, pay attention to keep the module free of heat dissipation conditions. ), PWM
Duty Cycle: 0%-100%, PWM
Frequency: 25Khz, Product Size (L x W x
H): 77*45*28mm
*Application: Used for electric fan, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc.

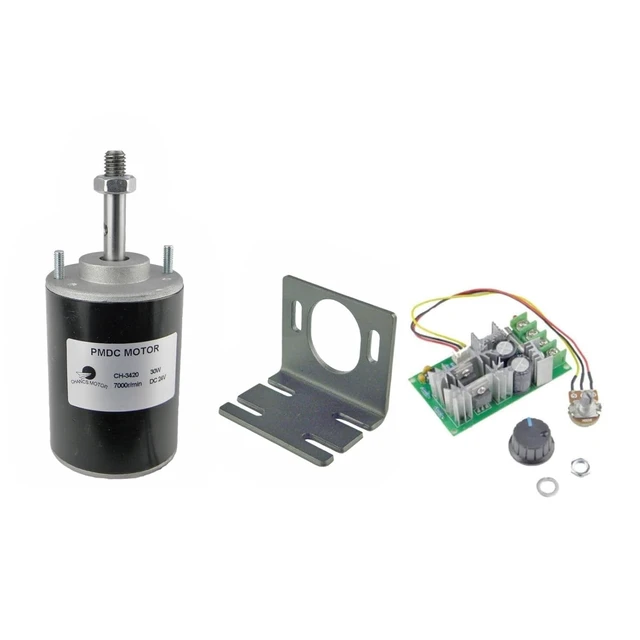

*Package: 1 x DC Motor, 1 x Speed Controllers, 1 xBracket
Voltage: DC 10V-DC 60V (Ultra wide working voltage), Output
voltage: linear under load, Control
Power: 0.01 -1200W, Rated
Current: 10A, Max
Current: 20A (Long-term use of 10A, 450W or less, pay attention to keep the module free of heat dissipation conditions. ), PWM
Duty Cycle: 0%-100%, PWM
Frequency: 25Khz, Product Size (L x W x
H): 77*45*28mm
*Application: Used for electric fan, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc.
*Package: 1 x DC Motor, 1 x Speed Controllers, 1 xBracket
