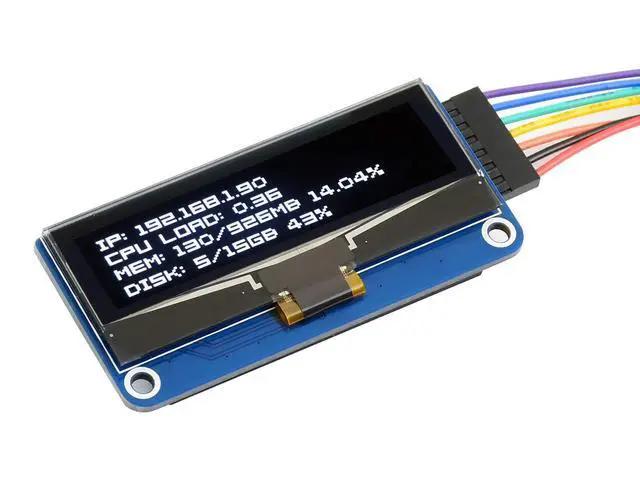

2.23inch OLED Display HAT for Raspberry Pi 128×32 Pixels with Embedded 1305 Driver Communicating via SPI or I2C Interface.
Limited time offer, ends 06/28 By EmpressTech
- This is an OLED display HAT for Raspberry Pi, 2.23inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface.; Trying to add a control interface for your Pi? This compact display would be the ideal choice.; Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano; Optional interfaces: SPI (default), or I2C, configured via onboard resistor Brings control pins for host boards like Arduino/STM32; Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

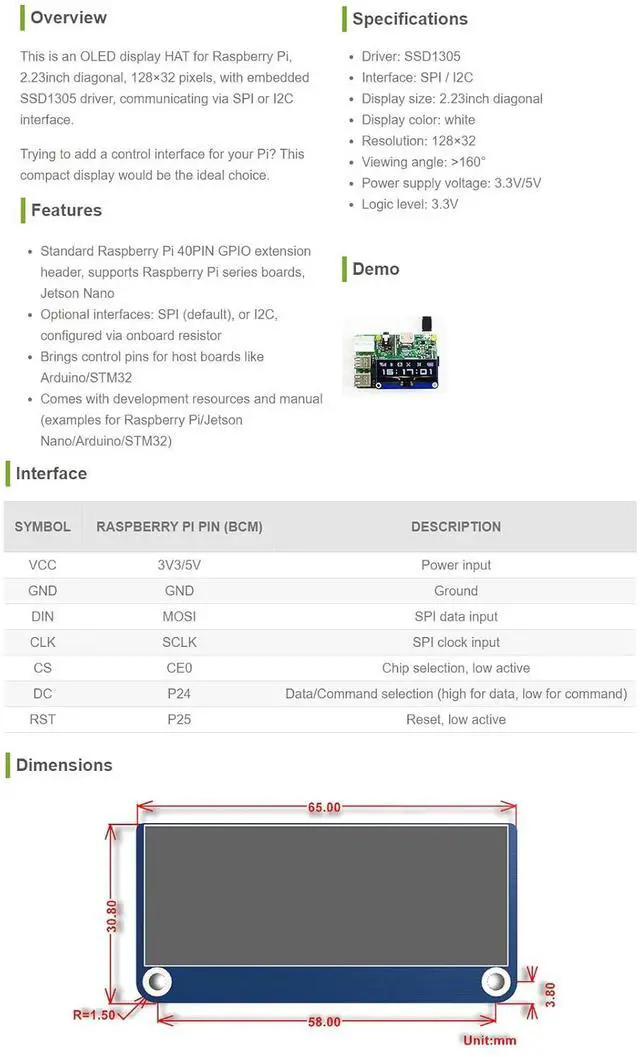

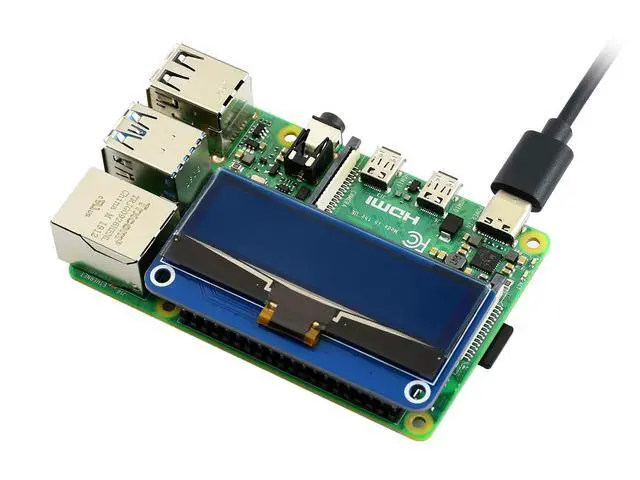

Overview This is an OLED display HAT for Raspberry Pi, 2.23 inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Optional interfaces: SPI (default), or I2C, configured via onboard resistor Brings control pins for host boards like Arduino/STM32. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).
Driver: SSD1305.
Interface: SPI / I2C.
Display size: 2.23 inch diagonal
Display colour: white.
Resolution: 128 x
32.
Viewing angle: >160°.
Power supply voltage: 3.3 V/5 V.
Logic level: 3.3 V.
Wiki: www.. com/wiki/ 2.23 inch_OLED_HAT? Amazon PACKAGE CONTENT 2.23 inch OLED HAT x1 RPi screws pack (2 pieces) x1
Optional interfaces: SPI (default), or I2C, configured via onboard resistor Brings control pins for host boards like Arduino/STM32. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).
Specifications
:Driver: SSD1305.
Interface: SPI / I2C.
Display size: 2.23 inch diagonal
Display colour: white.
Resolution: 128 x
32.
Viewing angle: >160°.
Power supply voltage: 3.3 V/5 V.
Logic level: 3.3 V.
Wiki: www.. com/wiki/ 2.23 inch_OLED_HAT? Amazon PACKAGE CONTENT 2.23 inch OLED HAT x1 RPi screws pack (2 pieces) x1
