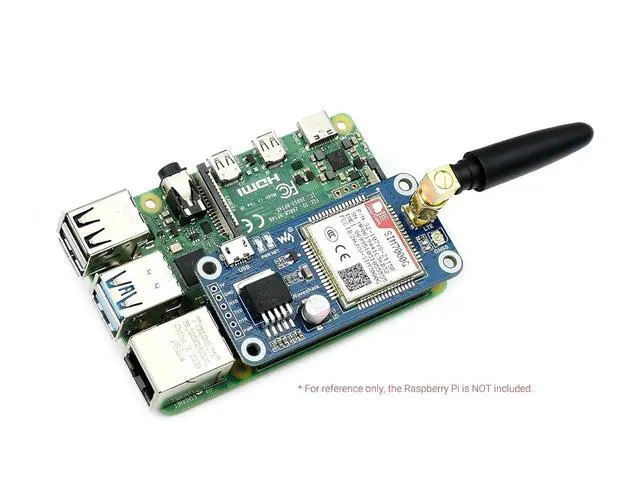

SIM7000G NB-IoT/Cat-M/Edge/GPRS HAT, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, GNSS Positioning, Global Band Support
Limited time offer, ends 06/28 By EmpressTech
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.; Supports GNSS positioning (GPS, BeiDou, GLONASS). Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. Breakout UART control pins, to connect with host boards like Arduino/STM32; Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0 resistor. SIM card slot, compatible with both normal SIM card and NB-IoT specific card; 2x LED indicators, easy to monitor the working status.Baudrate: 300bps~3686400bps (115200bps by default). Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands); Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

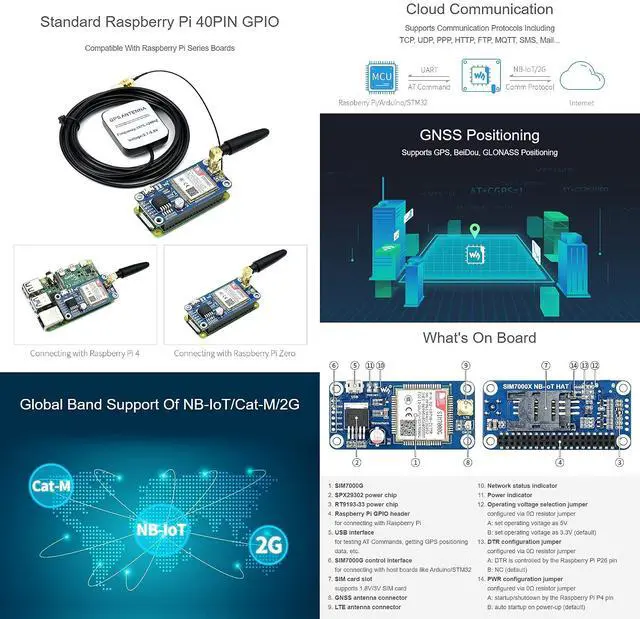

Product description Features At A Glance Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc. Supports GNSS positioning (GPS, BeiDou, GLONASS) Onboard USB interface, to test AT Commands, get GPS positioning data, and so on Breakout UART control pins, to connect with host boards like Arduino/STM32 Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0 resistor SIM card slot, compatible with both normal SIM card and NB-IoT specific card 2x LED indicators, easy to monitor the working status

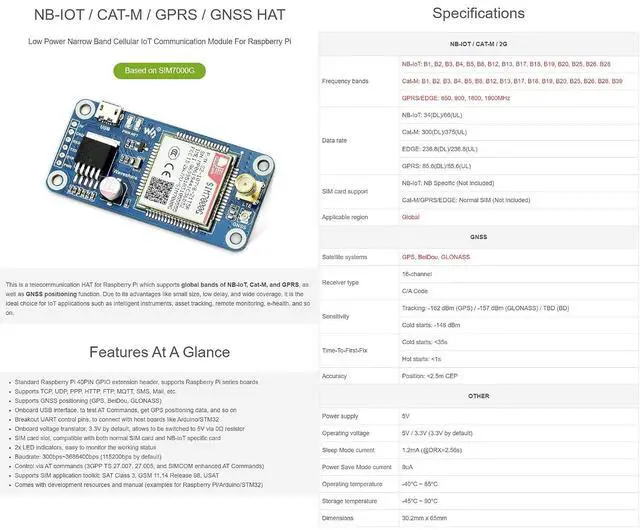

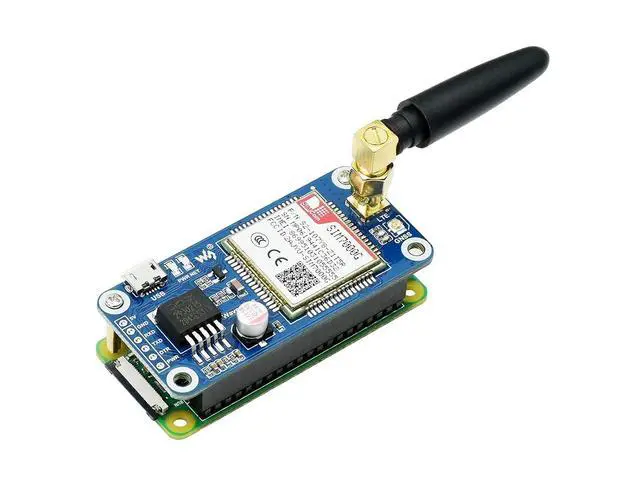

Baudrate: 300bps~3686400bps (115200bps by default) Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands) Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32) This is a telecommunication HAT for Raspberry Pi which supports global bands of NB-IoT, Cat-M, and GPRS, as well as GNSS positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on.
WIKI:. com/wiki/SIM7000G_NB-IoT_HAT? amazon
Baudrate: 300bps~3686400bps (115200bps by default) Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands) Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32) This is a telecommunication HAT for Raspberry Pi which supports global bands of NB-IoT, Cat-M, and GPRS, as well as GNSS positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on.
WIKI:. com/wiki/SIM7000G_NB-IoT_HAT? amazon
