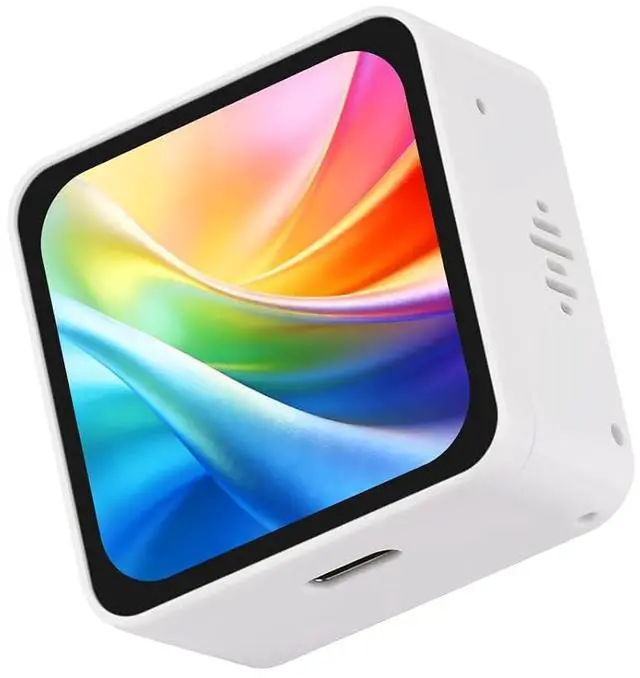

Main image of ESP32-S3 2.16inch AMOLED Display Development Board, 480 × 480 Resolution, 16.7M Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, No BAT

Alt view image 2 of 7 - ESP32-S3 2.16inch AMOLED Display Development Board, 480 × 480 Resolution, 16.7M Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, No BAT

Alt view image 3 of 7 - ESP32-S3 2.16inch AMOLED Display Development Board, 480 × 480 Resolution, 16.7M Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, No BAT

Alt view image 4 of 7 - ESP32-S3 2.16inch AMOLED Display Development Board, 480 × 480 Resolution, 16.7M Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, No BAT

Alt view image 5 of 7 - ESP32-S3 2.16inch AMOLED Display Development Board, 480 × 480 Resolution, 16.7M Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, No BAT

Alt view image 6 of 7 - ESP32-S3 2.16inch AMOLED Display Development Board, 480 × 480 Resolution, 16.7M Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, No BAT

Alt view image 7 of 7 - ESP32-S3 2.16inch AMOLED Display Development Board, 480 × 480 Resolution, 16.7M Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, No BAT

Shop All SQUARE D Products | Visit EmpressTech Store

ESP32-S3 2.16inch AMOLED Display Development Board, 480 × 480 Resolution, 16.7M Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, No BAT

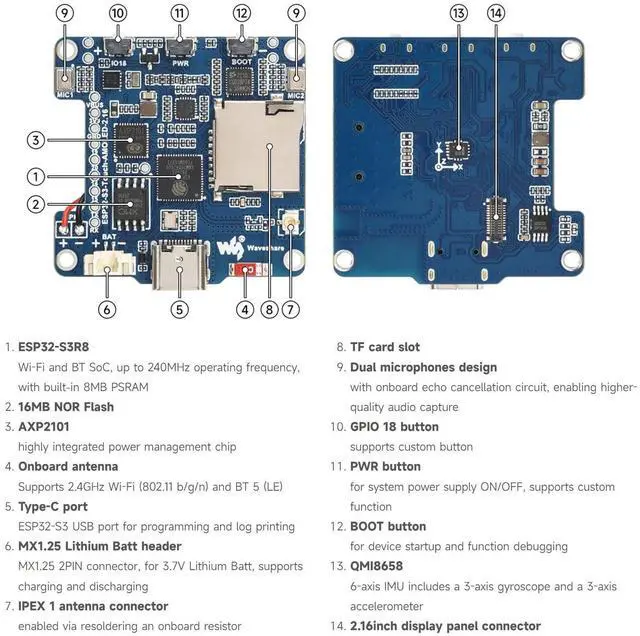

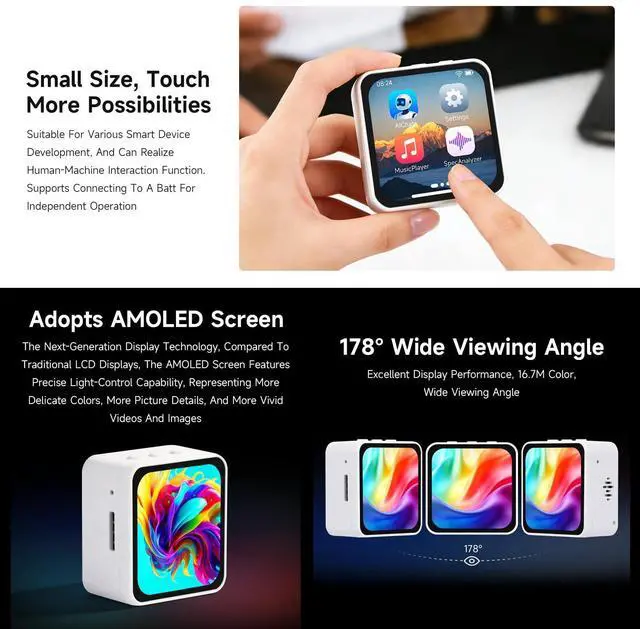

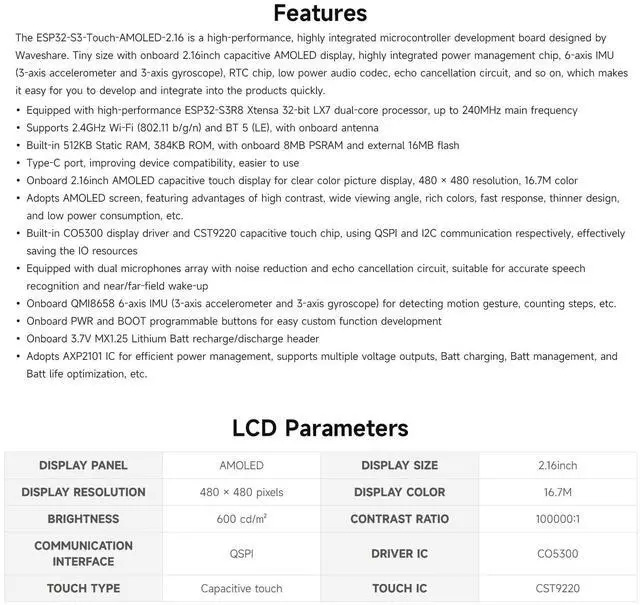

Equipped with high-performance ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna; Built-in 512KB Static RAM, 384KB ROM, with onboard 8MB PSRAM and external 16MB flash. Type-C port, improving device compatibility, easier to use. Onboard 2.16inch AMOLED capacitive touch display for clear color picture display, 480 × 480 resolution, 16.7M color; Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc. Built-in CO5300 display driver and CST9220 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources; Equipped with dual microphones array with noise reduction and echo cancellation circuit, suitable for accurate speech recognition and near/far-field wake-up. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.; Onboard PWR and BOOT programmable buttons for easy custom function development. Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header. Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, Batt charging, Batt management, and Batt life optimization, etc.
