Main image of ESP32-S3 1.54inch LCD Display Development Board, 240 × 240 Resolution, 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, with Touch Function, no BAT

Alt view image 2 of 7 - ESP32-S3 1.54inch LCD Display Development Board, 240 × 240 Resolution, 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, with Touch Function, no BAT

Alt view image 3 of 7 - ESP32-S3 1.54inch LCD Display Development Board, 240 × 240 Resolution, 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, with Touch Function, no BAT

Alt view image 4 of 7 - ESP32-S3 1.54inch LCD Display Development Board, 240 × 240 Resolution, 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, with Touch Function, no BAT

Alt view image 5 of 7 - ESP32-S3 1.54inch LCD Display Development Board, 240 × 240 Resolution, 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, with Touch Function, no BAT

Alt view image 6 of 7 - ESP32-S3 1.54inch LCD Display Development Board, 240 × 240 Resolution, 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, with Touch Function, no BAT

Alt view image 7 of 7 - ESP32-S3 1.54inch LCD Display Development Board, 240 × 240 Resolution, 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, with Touch Function, no BAT

Shop All SQUARE D Products | Visit EmpressTech Store

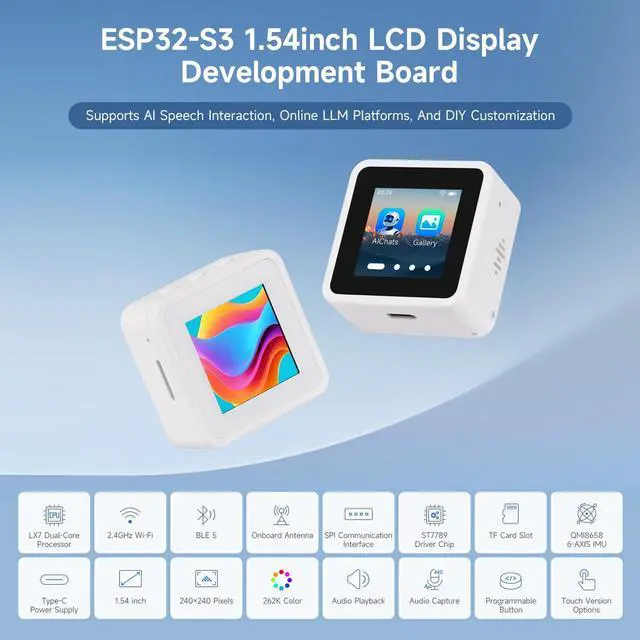

ESP32-S3 1.54inch LCD Display Development Board, 240 × 240 Resolution, 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi and BLE 5, with Touch Function, no BAT

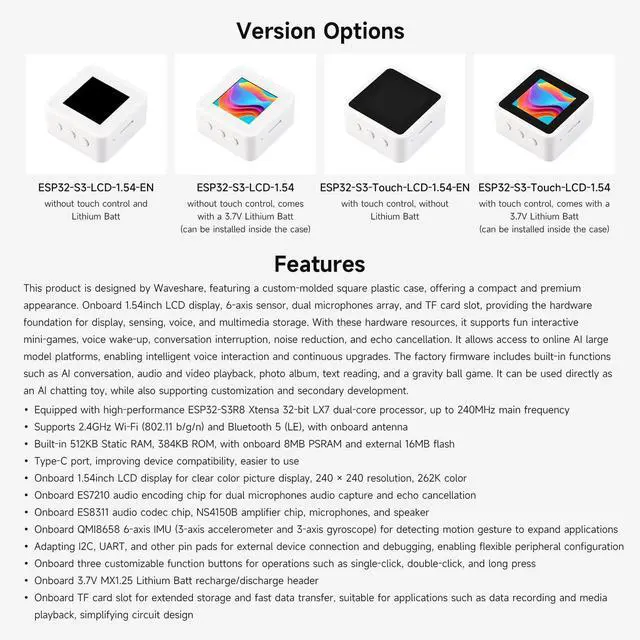

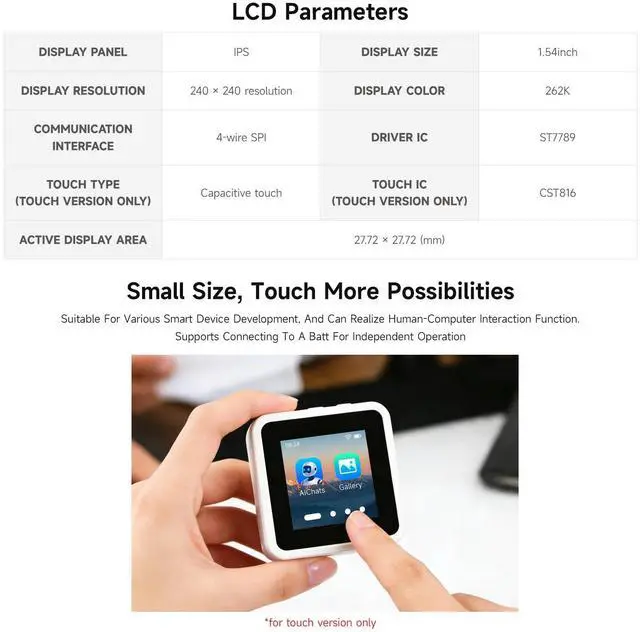

Equipped with high-performance ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built-in 512KB Static RAM, 384KB ROM, with onboard 8MB PSRAM and external 16MB flash; Type-C port, improving device compatibility, easier to use. Onboard 1.54inch LCD display for clear color picture display, 240 × 240 resolution, 262K color; Onboard ES7210 audio encoding chip for dual microphones audio capture and echo cancellation. Onboard ES8311 audio codec chip, NS4150B amplifier chip, microphones, and speaker; Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture to expand applications. Adapting I2C, UART, and other pin pads for external device connection and debugging, enabling flexible peripheral configuration; Onboard three customizable function buttons for operations such as single-click, double-click, and long press. Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Product description

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by EmpressTech Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIC6W1KZK4465
