MLX90640 IR Array Thermal Imaging Camera with 32×24 Pixels 55° Field of View Communicating via I2C Interface Supports Raspberry Pi/rduino(ESP32)/STM32, etc.
Limited time offer, ends 06/28 By EmpressTech
- Compact and Cost-Effective: The MLX90640-D55 is a small, non-contact thermal imaging camera with a 32×24 pixel array, designed for low-cost and efficient thermal imaging in various industrial and smart control applications.; Advanced IR Sensor Array: Utilizes the MLX90640 far-infrared thermal sensor array, offering high precision with a Noise Equivalent Temperature Difference (NETD) of 0.1K RMS at a 1Hz refresh rate for accurate temperature measurements.; Flexible Communication: Communicates via I2C interface, with configurable fast mode support for data rates up to 1MHz, ensuring seamless integration into systems with various processing speeds.; Programmable Frame Rate: Offers a programmable frame rate ranging from 0.5 to 64Hz (0.25 to 32FPS), providing flexible video stream options for dynamic thermal monitoring.; Comprehensive Development Resources: Comes with a range of development resources, including manuals and examples for Raspberry Pi, Arduino (ESP32), and STM32, ensuring easy integration and setup for developers.; Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

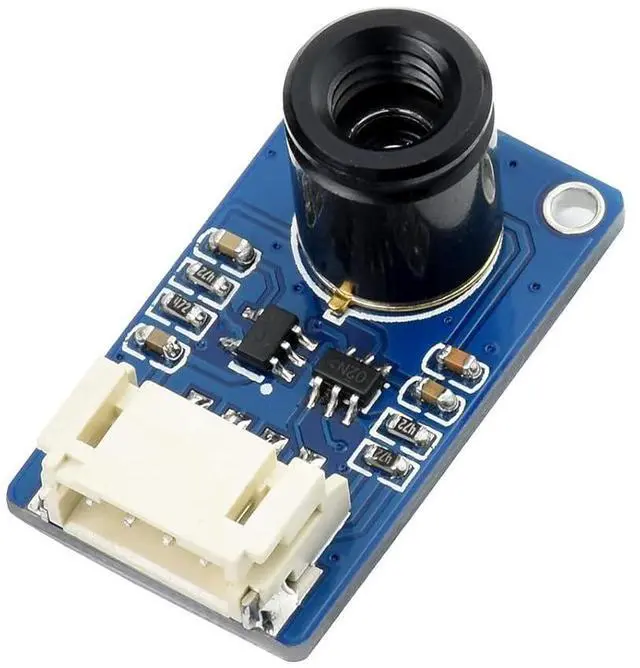

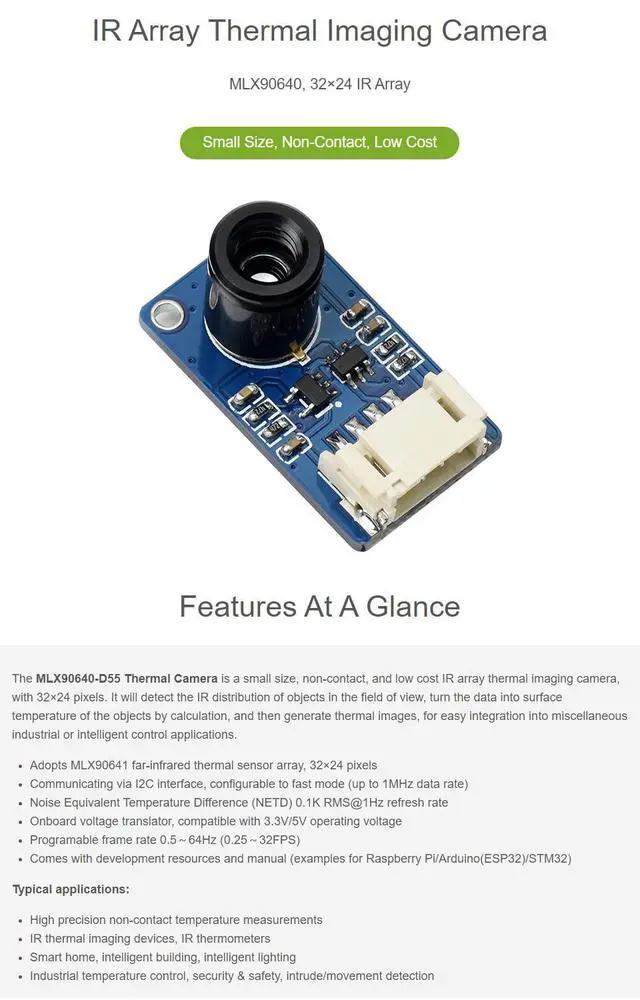

Product description MLX90640 IR Array Thermal Imaging Camera, 32×24 Pixels, 55° Field Of View, I2C Interface Features At A Glance The MLX90640-D55 Thermal Camera is a small size, non-contact, and low cost IR array thermal imaging camera, with 32×24 pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications. Adopts MLX90640 far-infrared thermal sensor array, 32×24 pixels Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate) Noise Equivalent Temperature Difference (NETD) 0.1K RMS@1Hz refresh rate Onboard voltage translator, compatible with 3.3V /5V operating voltage Programable frame rate 0.564H z ( 0.2532FPS )
Comes with development resources and manual (examples for Raspberry Pi/Arduino (ESP32) /STM32)
Typical applications: High precision non-contact temperature measurements IR thermal imaging devices, IR thermometers Smart home, intelligent building, intelligent lighting Industrial temperature control, security & safety, intrude/movement detection
0.5 ~64Hz ( 0.2532FPS ) 0.5 ~64Hz ( 0.2532FPS ) - no data Operating temperature -40 ~ 85 -40 ~ 85 -40 ~ 125 -40 ~ 85 Current < 23mA < 23mA 12mA < 2mA Market orientation medium pixels medium pixels low cost high precision
WIKI:. com/wiki/MLX90640-D55_Thermal_Camera? amazon
Comes with development resources and manual (examples for Raspberry Pi/Arduino (ESP32) /STM32)
Typical applications: High precision non-contact temperature measurements IR thermal imaging devices, IR thermometers Smart home, intelligent building, intelligent lighting Industrial temperature control, security & safety, intrude/movement detection

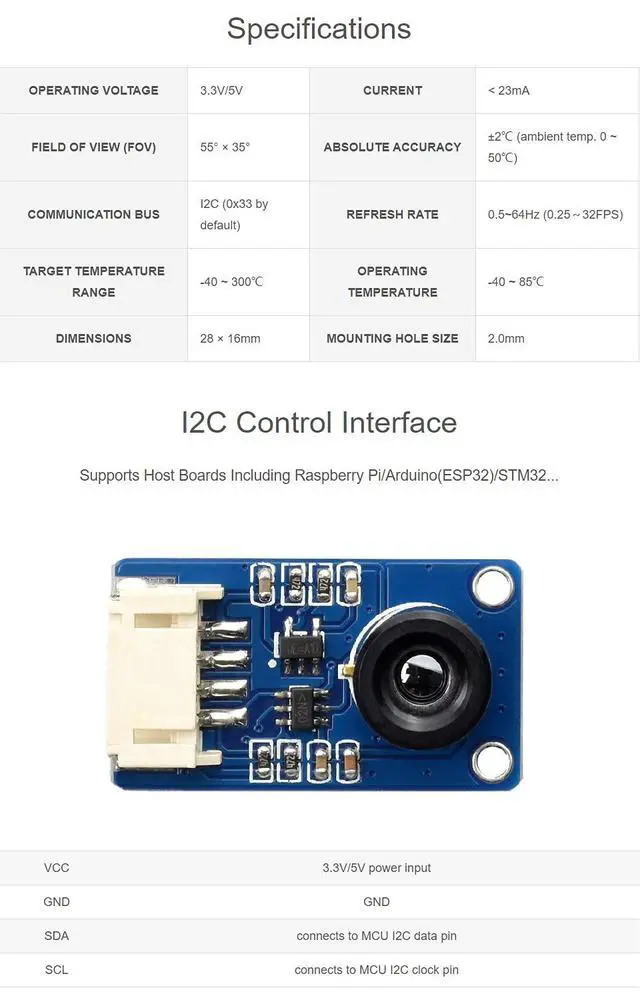

Specifications
OPERATING VOLTAGE 3.3V /5V OPERATING VOLTAGE 55° × 35° COMMUNICATION BUS I2C (0x33 by default) TARGET TEMPERATURE RANGE -40 ~ 300 DIMENSIONS 28 × 16mm CURRENT < 23mA ABSOLUTE ACCURACY ±2 (ambient temp. 0 ~ 50) REFRESH RATE 0.5 ~64Hz ( 0.2532FPS ) OPERATING TEMPERATURE -40 ~ 85 MOUNTING HOLE SIZE 2.0 mm MLX90640-D55 MLX90640-D110 MLX90641-D55 MLX90614ESF-BCC Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 9 3.9 out of 5 stars 19 5.0 out of 5 stars 2 Price $ 68.99 $68. 99 $ 68.99 $68. 99 $ 57.99 $57. 99 $ 21.99 $21. 99 Pixel array 32×24 32×24 16×12 1 Absolute accuracy ±2 (ambient temp. 0 ~ 50) ±2 (ambient temp. 0 ~ 50) ±2 (ambient temp. 0 ~ 50) ± 0.5 (ambient temp. 0 ~ 50) Target temp. range -40 ~ 300 -40 ~ 300 -40 ~ 300 -70 ~ 380 Field of view (FOV) 55° × 35° 110° × 75° 55° × 35° 35° Refresh rate 0.5 ~64Hz ( 0.2532FPS )0.5 ~64Hz ( 0.2532FPS ) 0.5 ~64Hz ( 0.2532FPS ) - no data Operating temperature -40 ~ 85 -40 ~ 85 -40 ~ 125 -40 ~ 85 Current < 23mA < 23mA 12mA < 2mA Market orientation medium pixels medium pixels low cost high precision
WIKI:. com/wiki/MLX90640-D55_Thermal_Camera? amazon
