UL Listed 8 Amp 12V Electromagnetic Relay with Test Switch 2NO 2NC 8Pin Socket Base with Surge Suppressor Light Module for PLC 12V DC Relay Din Rail 6Pcs
- 12V Din Rail Relay through UL Listed and CE Listed. Relay's point dynamic test switch can be used to manually change the contact state.

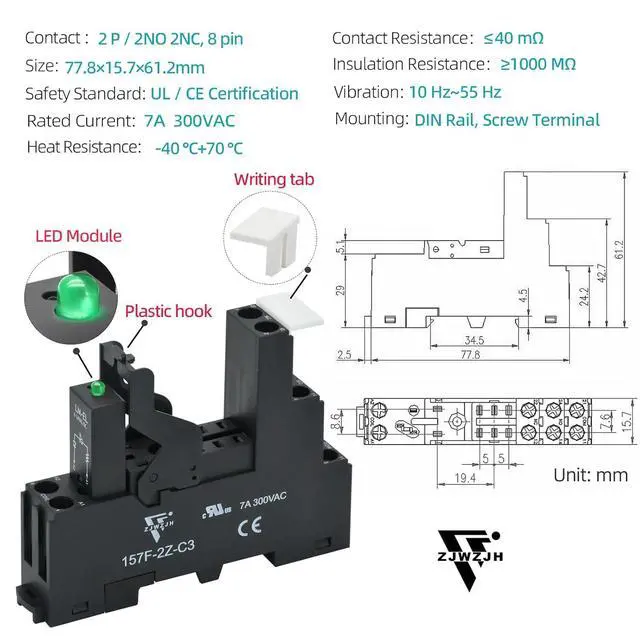

- 12V DC Relay;Contact :DPDT, 2Normally Closed + 2Normally Open 2 Poles.; rated carry current:8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.

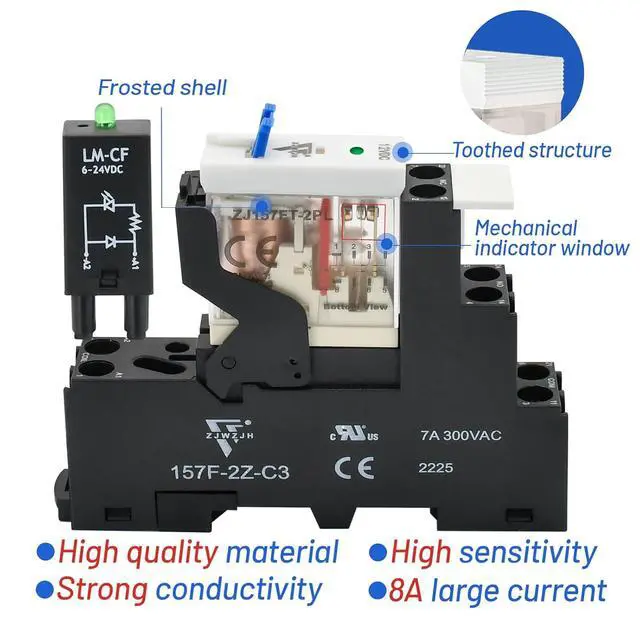

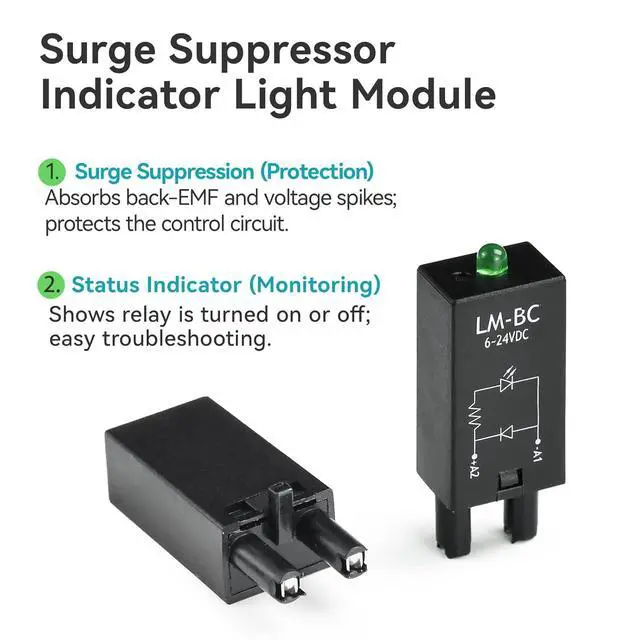

- The relay is equipped with a green LED light and a visual window to check the contact status. The shell is transparent frosted and non slip. Functions of the Surge Suppressor Indicator Light Module:1. Surge Protection: It protects the relay and the control circuit from damage caused by high voltage spikes. 2. Status Indication: The LED light shows whether the relay is turned on or off.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

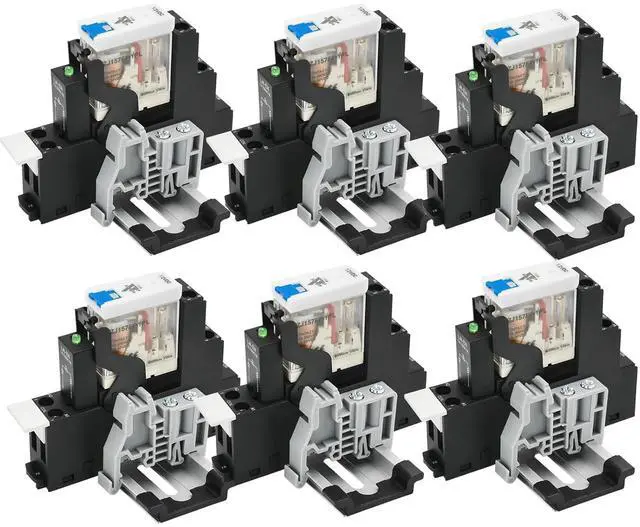

Package: 6 Pcs Power Relay, 6 Pcs Socket, 2 x Fixing clamp, 1 x DIN Rail, 2 x Screws.
Mechanical endurance: 10, 000, 000 Times;
Electrical endurance: 100, 000 Times

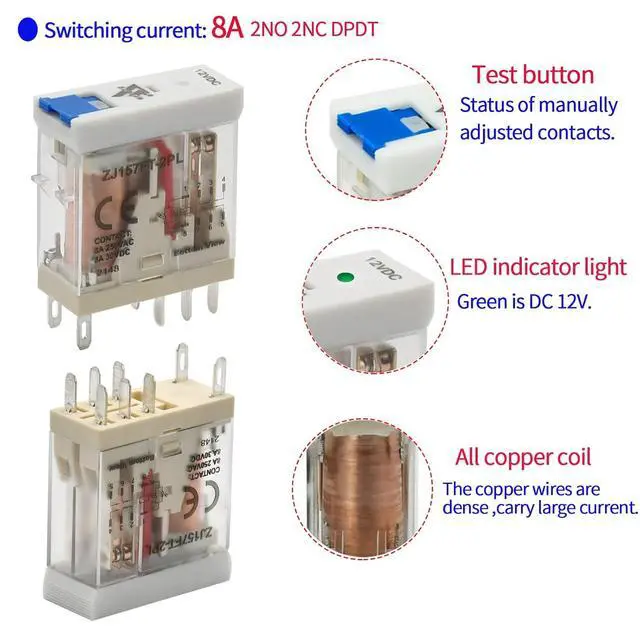

The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials, It is high sensitivity, strong conductivity and high current carrying capacity,
Package include:
Package Content: 6 Electromagnetic Relay, 6 Socket, 2 x Fixing clamp, 1 x DIN Rail, 4 x Screws.
Mechanical endurance: 10, 000, 000 Times;
Electrical endurance: 100, 000 Times
The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials, It is high sensitivity, strong conductivity and high current carrying capacity,
Package include:
Package Content: 6 Electromagnetic Relay, 6 Socket, 2 x Fixing clamp, 1 x DIN Rail, 4 x Screws.
