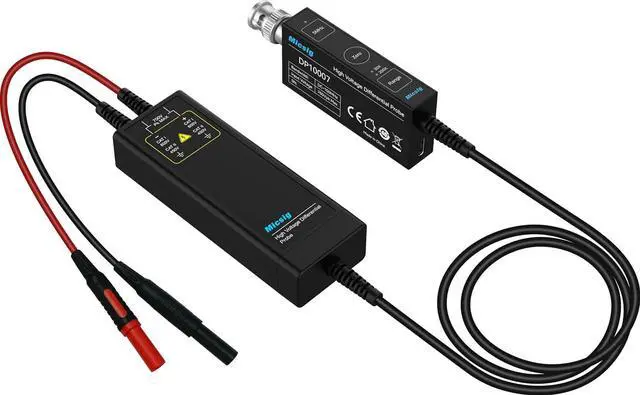

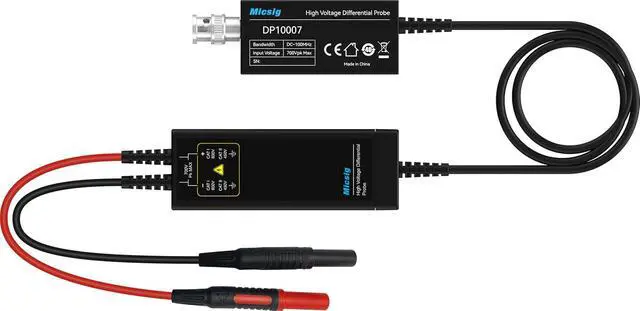

700V 100MHz High Voltage Differential Probe kit 3.5ns Rise Time 10X/100X Attenuation Rate Oscilloscope Probe Kit Accessory DP10007
- Widely Used: The attenuation rate is 10X/100X, widely used in any brand of oscilloscope.
- Maximum differential test voltage (DC+ACPK-PK): 70V (10X), 700V (100X). You can safely measure floating voltages up to 700V and have a bandwidth up to 100 MHz.
- Easier and Safer Use: High voltage differential probes sample high impedance isolation between input and output to protect person safety. Power supply USB DC 5V output, more portable while Oscilloscope has USB interface.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

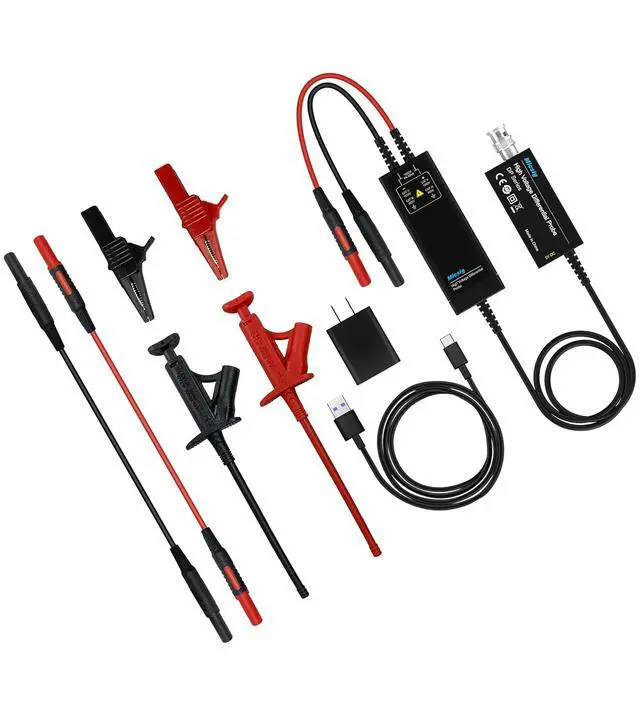

Versatile Kit: All 6 pieces with three different connectors help to test various on different occasions, including 2 alligator clips, 2 hook clips and 2 pincer clips.
Applications: Floating Measurements, Switch-Mode Power Supply (SMPS), Motor Drive Design, Power Device Testing & Evaluation, Power Converter Testing & Design.
Specification:
Bandwidth: 100MHz
Rise Time: 3.5 ns
Range Selection (Attenuation Rate): 10X/ 100X
Accuracy: ±2%
Maximum Differential Test Voltage(DC+ACPK): 70V (10X) / 700V (100X)
Maximum input common mode voltage(DC+ACPK): 70V (10X) / 700V (100X)
Maximum Input Voltage-to-Earth: 600V CAT / 1000V CAT

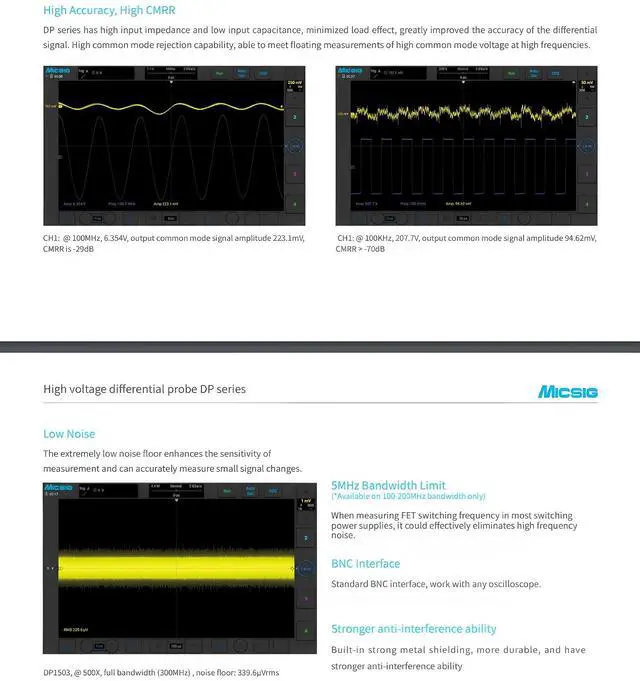

CMRR-80dB@50Hz, -60dB@20KHz, -50dB@1MHz, -40dB@10MHz
Input Impedance: 8M/ 1.25 pF (differential), 4M/ 2.5 pF(single-ended to ground)
Output Voltage: 7V
Overroad Alarm: Button light flashes
Power Supply: DC 5V, USB Supply
Power: 1.25W
Dimension: 1.45 cm*6cm* 2.7 cm
Input cable length: Approx 45cm
Output cable length: Approx 90cm
Operating Temperature: 0~40
Operating Humidity: 10%~85%RH
Storage Temperature: -30~70
Storage Humidity: 5%~90%RH

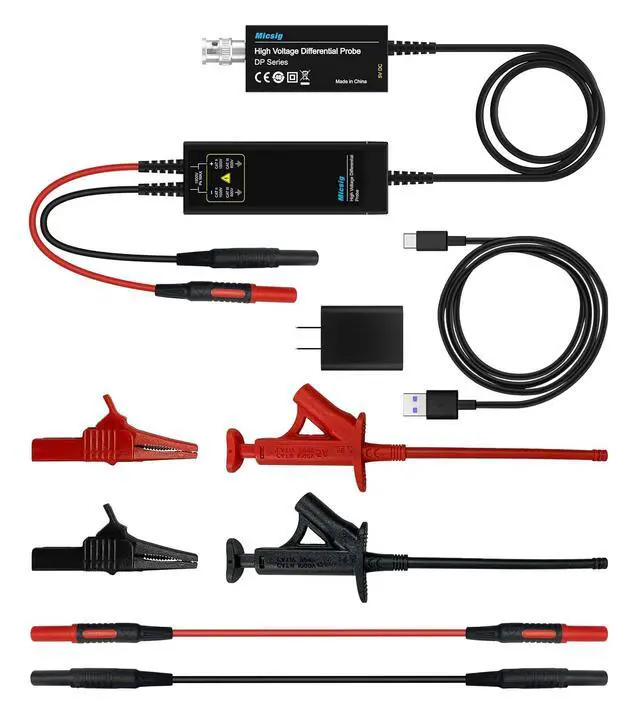

WHAT'S INCLUDED?
1x Power Supply
1x USB power cable
2x alligator clips, in red and black pairs
2x pincer clips, in red and black pairs
1x storage box
1x Chinese manual
Applications: Floating Measurements, Switch-Mode Power Supply (SMPS), Motor Drive Design, Power Device Testing & Evaluation, Power Converter Testing & Design.
Specification:
Bandwidth: 100MHz
Rise Time: 3.5 ns
Range Selection (Attenuation Rate): 10X/ 100X
Accuracy: ±2%
Maximum Differential Test Voltage(DC+ACPK): 70V (10X) / 700V (100X)
Maximum input common mode voltage(DC+ACPK): 70V (10X) / 700V (100X)
Maximum Input Voltage-to-Earth: 600V CAT / 1000V CAT
CMRR-80dB@50Hz, -60dB@20KHz, -50dB@1MHz, -40dB@10MHz
Input Impedance: 8M/ 1.25 pF (differential), 4M/ 2.5 pF(single-ended to ground)
Output Voltage: 7V
Overroad Alarm: Button light flashes
Power Supply: DC 5V, USB Supply
Power: 1.25W
Dimension: 1.45 cm*6cm* 2.7 cm
Input cable length: Approx 45cm
Output cable length: Approx 90cm
Operating Temperature: 0~40
Operating Humidity: 10%~85%RH
Storage Temperature: -30~70
Storage Humidity: 5%~90%RH
WHAT'S INCLUDED?
1x Power Supply
1x USB power cable
2x alligator clips, in red and black pairs
2x pincer clips, in red and black pairs
1x storage box
1x Chinese manual
