PEXM2150E PCI Express x1 Adapter Card with M.2 Key E Socket - Support M2 E Key or A-E Key WiFi or Bluetooth Module, TAA
- PCIe x1 lane card with M.2 E-Key socket that supports PCIe & USB 2.0 signal interface from main board to M.2 Key E socket.
- Support M.2 E Key and A-E Key WiFi, Bluetooth and Dual Band WiFi / Bluetooth Wireless Module. Note: PEXM2150E does not support CNVi (CNVIo/CNVIo2) interface.
- Multiple plated-holes support M.2 type 2230 / 3030 module
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
No driver installation is required. 100% OS-transparent hardware bridge converter to support Windows, MAC, and Linux.
Fully RoHS compliant. Made in Taiwan.
The PEXM2150E allows you to Install M. 2 Key E or key A-E module such as WiFi, Bluetooth and Dual Band WiFi+ Bluetooth Wireless Module on a PCIe slot of Industrial Computer.
Features

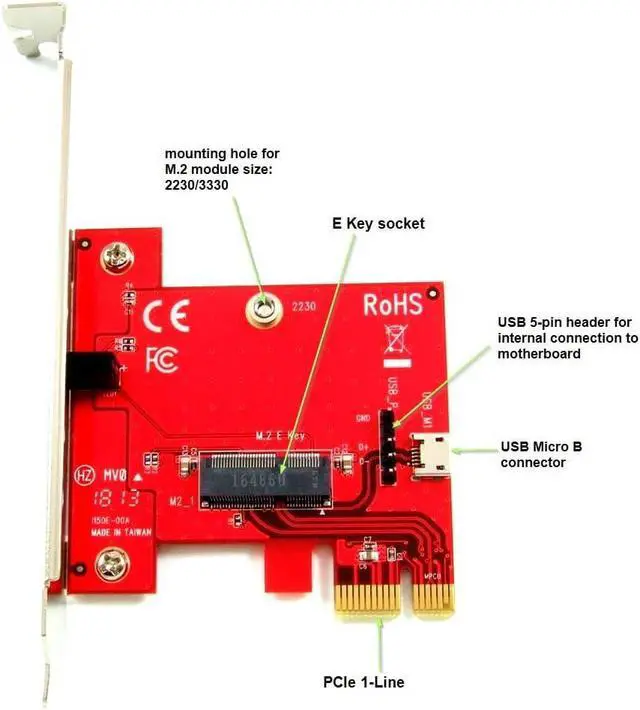

Connector: 1x E-key (type 2230-D3-E) M. 2 NGFF socket
PCI Express x1 Male
USB micro-B connector (optional)
Software: No driver installation is required
100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
System Requirement: An empty PCI Express socket
PCIe x1 lane adapter card
USB 2.0 signal interface from main board USB port to M. 2 E Key socket
USB micro-B connector or USB 5-Pin pin header for main board USB port connection
Support M. 2 E Key and A-E Key WiFi, Bluetooth and Dual Band WiFi / Bluetooth Wireless Module
Multiple plated-holes support M. 2 type 2230 / 3030 module
2x LEDs on board

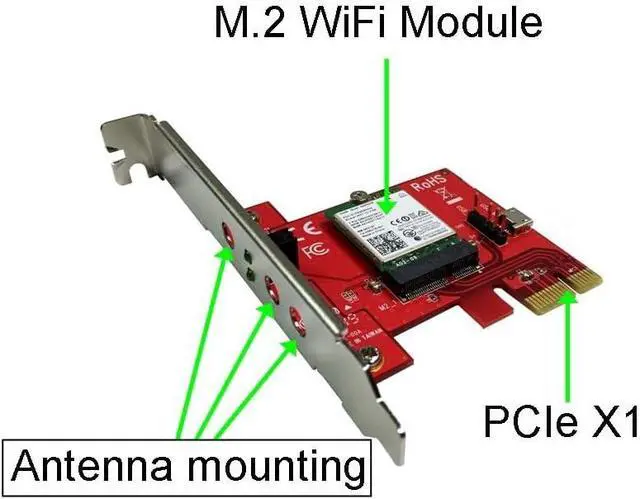

Max 3x Antenna mounting
Low Profile PCIe Form Factor board
Regular size PCIe bracket on board and Low Profile bracket included
Supports industrial operating temperature range: -40 - 80 ºC
Fully RoHS compliant
Made in Taiwan
No driver installation is required. 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
Support M. 2 E Key and A-E Key WiFi, Bluetooth and Dual Band WiFi / Bluetooth Wireless Module
USB micro-B connector or USB 5-Pin pin header for main board USB port connection (the USB connection is optional only when the installed M. 2 module is a USB based device such as Bluetooth wireless. )
Note: Most M. 2 WiFi modules use PCIe interface, Bluetooth modules use USB interface, and Dual Band Wireless Modules use both PCIe and USB interface.
Note: PEXM2150E does not support CNVi (CNV
Io/CNV
Io2) interface.
(M. 2 WiFi Module not included)

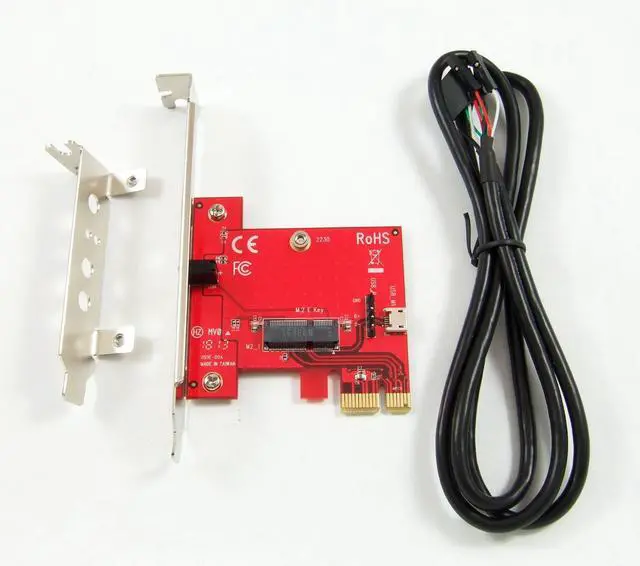

In The Box
PCIe adapter card with M. 2 Key E socket
1x low profile PCIe bracket
1x 4-pin USB header cable
1x mounting screw
Fully RoHS compliant. Made in Taiwan.
The PEXM2150E allows you to Install M. 2 Key E or key A-E module such as WiFi, Bluetooth and Dual Band WiFi+ Bluetooth Wireless Module on a PCIe slot of Industrial Computer.
Features
Connector: 1x E-key (type 2230-D3-E) M. 2 NGFF socket
PCI Express x1 Male
USB micro-B connector (optional)
Software: No driver installation is required
100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
System Requirement: An empty PCI Express socket
PCIe x1 lane adapter card
USB 2.0 signal interface from main board USB port to M. 2 E Key socket
USB micro-B connector or USB 5-Pin pin header for main board USB port connection
Support M. 2 E Key and A-E Key WiFi, Bluetooth and Dual Band WiFi / Bluetooth Wireless Module
Multiple plated-holes support M. 2 type 2230 / 3030 module
2x LEDs on board
Max 3x Antenna mounting
Low Profile PCIe Form Factor board
Regular size PCIe bracket on board and Low Profile bracket included
Supports industrial operating temperature range: -40 - 80 ºC
Fully RoHS compliant
Made in Taiwan
No driver installation is required. 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
Support M. 2 E Key and A-E Key WiFi, Bluetooth and Dual Band WiFi / Bluetooth Wireless Module
USB micro-B connector or USB 5-Pin pin header for main board USB port connection (the USB connection is optional only when the installed M. 2 module is a USB based device such as Bluetooth wireless. )
Note: Most M. 2 WiFi modules use PCIe interface, Bluetooth modules use USB interface, and Dual Band Wireless Modules use both PCIe and USB interface.
Note: PEXM2150E does not support CNVi (CNV
Io/CNV
Io2) interface.
(M. 2 WiFi Module not included)
In The Box
PCIe adapter card with M. 2 Key E socket
1x low profile PCIe bracket
1x 4-pin USB header cable
1x mounting screw
