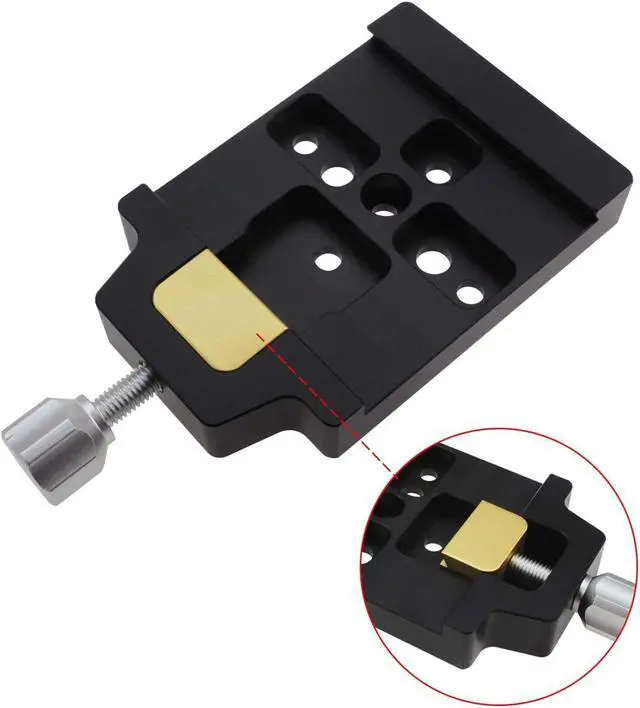

80mm Premium Losmandy Level Dovetail Clamp Saddle Style Plate
- It does well in clamping all Losmandy 3" level dovetail bars; especially large capacity
- There are 7 counter-sunk bores in the saddle plate; two M8 bores - distance 35 mm "middle to middle" and five M6 bores in different distances lengthwise and crosswise to the middle; so that it can attach to almost all surfaces
- Precision machined solid all-aluminum no warping prism rail in matte black with 1 aluminium locking screws
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

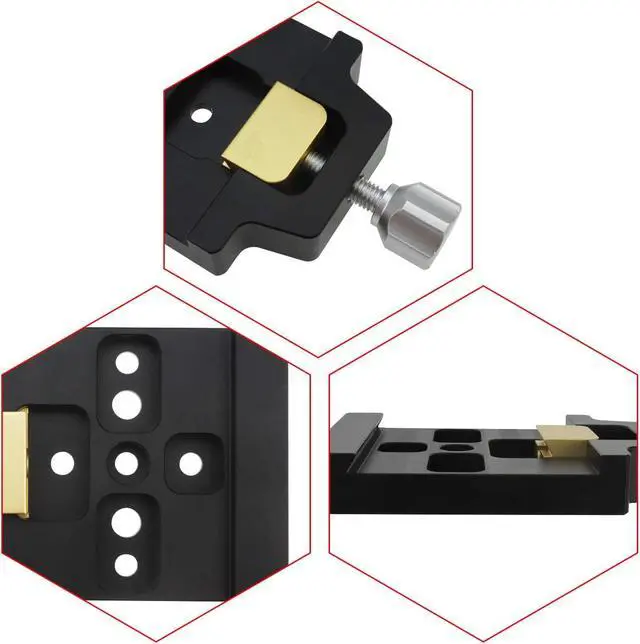

It is flat clamping mechanism designed in order to protect your accessories more safely and stably; and avoid unaesthetic pressure marks

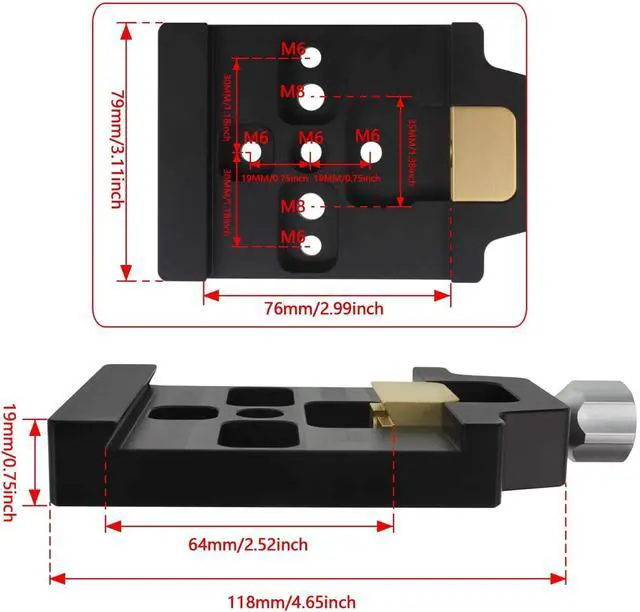

Dimensions: Length 79 mm - width 118 mm "without screws" - width with screws 153mm - high 19mm
With the 80 mm Deluxe Losmany Dovetail Clamp, you can safely attach your telescope or other heavy accessories to mounts. The saddle plate with 7 countersunk bores will be suitable for almost all surfaces. The design of flat support surface and the countersunk bores allow the clamp can be attached to dovetail bars without any problems.
Technical
Suitable for: Losmandy level 3" dovetail bars
Dimensions: length 80 mm - width 118 mm (without screws) - width with screws 153 mm
Weight: approx 320 grams
M8 bores: two M8 bores - distance 35 mm (middle to middle)
M6 and 1/4" bores: five M6 bores in different distances lengthwise and crosswise to the middle
Dimensions: Length 79 mm - width 118 mm "without screws" - width with screws 153mm - high 19mm
With the 80 mm Deluxe Losmany Dovetail Clamp, you can safely attach your telescope or other heavy accessories to mounts. The saddle plate with 7 countersunk bores will be suitable for almost all surfaces. The design of flat support surface and the countersunk bores allow the clamp can be attached to dovetail bars without any problems.
Technical
Details
:Suitable for: Losmandy level 3" dovetail bars
Dimensions: length 80 mm - width 118 mm (without screws) - width with screws 153 mm
Weight: approx 320 grams
M8 bores: two M8 bores - distance 35 mm (middle to middle)
M6 and 1/4" bores: five M6 bores in different distances lengthwise and crosswise to the middle
