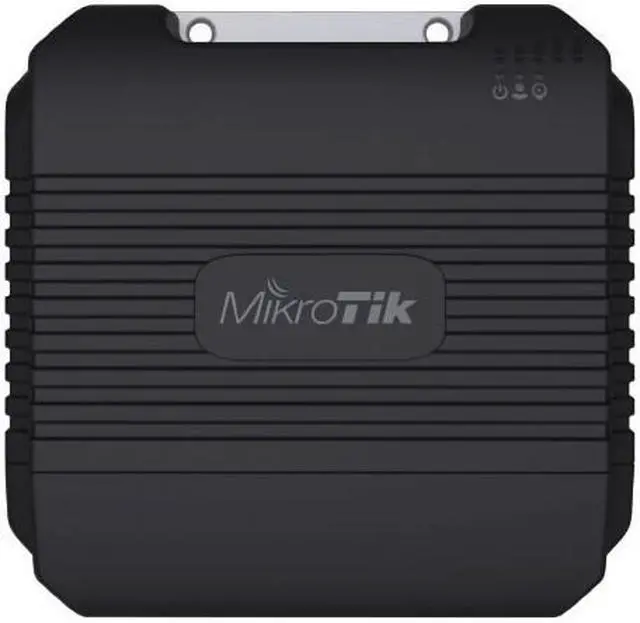

MikroTik - RBLTAP-2HND - MikroTik LtAP Weatherproof Wireless 2.4GHz Access Point w/Built in GPS (without LTE card)

Mikro Tik LtAP Weatherproof Wireless 2.4GH z Access Point w/Built in GPS (without LTE card) Mikro
Tik LtAP LTE kit is a compact weatherproof wireless access point with a built in cellular modem that supports 4G (LTE) connectivity. Connect to the LtAP’s built-in high power 2.4 GHz 802.11 b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP LTE kit also has one Gigabit Ethernet LAN port for wired devices. The RS232 serial port gives you console access for debugging. The unit comes with two mini
PCIe slots (one already populated with LTE modem), offering many expansion options. For example, you can install second LTE modem for redundancy, or 5 GHz interface to have dual concurrent 2.4 GHz / 5 Ghz AP + LTE. Unit is powered by Dual-Core 880 MHz CPU and 128 MB RAM to deal with heavy loads. Does not include LTE modem
Specifications • CPU: Dual-core Media
Tek MT7621 880 MHz •
Size of RAM: 128 •
Storage: 16 MB flash • 10/100/1000
Ethernet Ports: 1 •
Wireless: 2.4 GHz 802.11 b/g/n dual-chain •
Wireless Regulations: Specific frequency range will be limited by country regulations •
Wireless Antenna Max Gain: 2.5 dBi • LTE
Antenna Max Gain: 4 dBi (with u. FL connector) •
Antenna Beam Width: 360° •
LTE Category: - •
3G Category: - • 2G
Category: - • Supported
Input Voltage: DC jack or automotive connector 12 - 30 V •
PoE In: Passive PoE 12 - 30 V •
Dimensions: 170 x 162 x 40 mm •
Operating temperature: -40°C..
+70°C • Operating system: Router
OS, License level 4 •
Mini SIM slots: 3 • Mini
PCIe slot #1: Top slot supports PCIe and USB 2.0 cards, but is shared with the USB 2.0 type A port (can use either USB port or mini
PCIe slot at the same time) • Mini
PCIe slot #2: Bottom slot supports only USB ( 2.0 and 3.0 ) mini
PCIe modems (no PCIe support) •
USB port: 1 USB 2.0 port type A (can only be used if mini
PCIE slot #1 is not used) •
Built-in GPS: Yes (external antenna option via MMCX connector) •
Serial port: RS232 •
Max power consumption: 24W Product Includes (1) Mikro
Tik LtAP (1) Power Adapter (24V 1.2A ) (1) Screw Kits (1) Automotive Cable Product Documentation Mikro
Tik RBLtAP-2HnD Data Sheet Router
OS User Manuals and Technical Documentation Mikro
Tik Technical Support Information What is Router
OS? Router
OS Manual Router
OS Features Not all features may be available due to product hardware configuration. The device comes with Router
OS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager. Router
OS is a stand-alone operating system based on the Linux v 3.3. 5 kernel. You can try Router
OS today, go to Mikro
Tik Website for a free-trial demo. The free trial provides all of the features with no limitations.
Major features include:
Firewall: Statefull filtering Source and destination NAT NAT helpers (h323, pptp, quake3, sip, ftp, irc, tftp) Internal connection, routing and packet marks Filtering by IP address and address range, port and port range, IP protocol, DSCP and many more Address lists Custom Layer7 matcher IPv6 support PCC - per connection classifier, used in load balancing configurations
