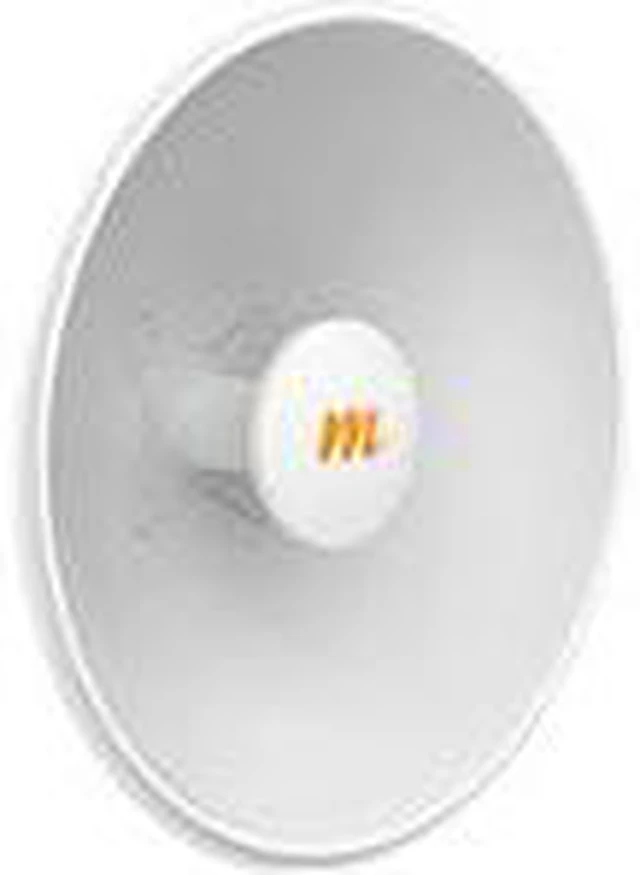

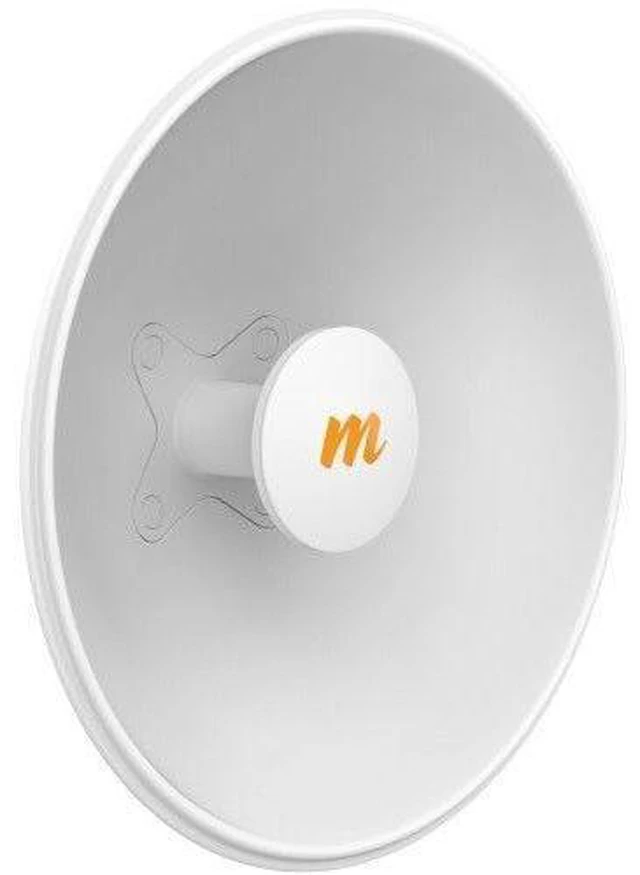

Mimosa Networks - 100-00091 - N5-X25-8PACK, 4.9-6.4GHz Modular Twist-on Dual-slant Antenna, 400mm Dish for C5x Only, 25

Mimosa N5-X25 (100-00091) is the industrys most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9GH z 6.4GH z, with best-in-class noise immunity. 8-Pack Mimosa N5-X25 (100-00091) is the industrys most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.96. 4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments.

Out of the box, the C5x can be used in PTMP mode, with Ethernet link speeds of up to 100 Mbps. With the purchase of a PTMP speed feature key, speeds of up to 500 Mbps will be unlocked in PTMP mode. In order to unlock and utilize PTP mode, with speeds of up to 700 Mbps, a PTP feature key must be purchased. 8-Pack Product Features Twist-On, Flexible Antenna PTP or PTMP Modes (feature key may be required) Extended Frequency 4.96. 4 GHz Best-in-Class Noise Immunity Ultra Rugged Low-Power Consumption Ultra Reliable Gigabit Ethernet: 10/100/1000-Base-T
Management Services: Mimosa cloud monitoring and management; SNM
Pv2 & Syslog monitoring; S; HTML5-based web UI
Product Specifcations Product: N5-X25
Gain: 25dBi
Polarization:
Dual-Slant: 45° Beamwidth, Symmetric
(3 dB): 8°
Front-to-Back Ratio (min): 40dB
Front-to-Side Ratio (min): >45dB
Weight: 0.98 kg ( 2.15 lbs)
Dimensions:
Diameter: 429 mm ( 16.89 )
Depth: 116 mm ( 4.57 )
Mount: Mimosa N5-X twist-on
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 36.26 kg @ 160 km/h ( 79.95 lbs @ 100 mph)
Operating Temperature: -40°C to +55°C (-40°F to 131°F) Product Includes (8) N5-X25 Dish (1) User Manual Datasheet
