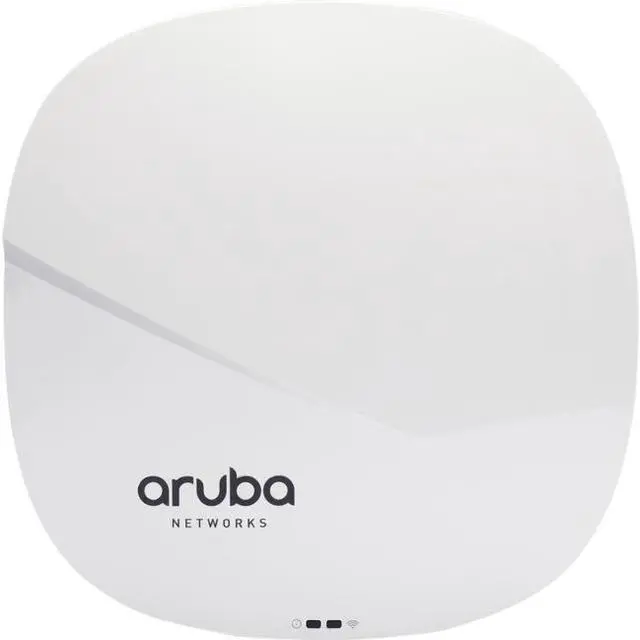

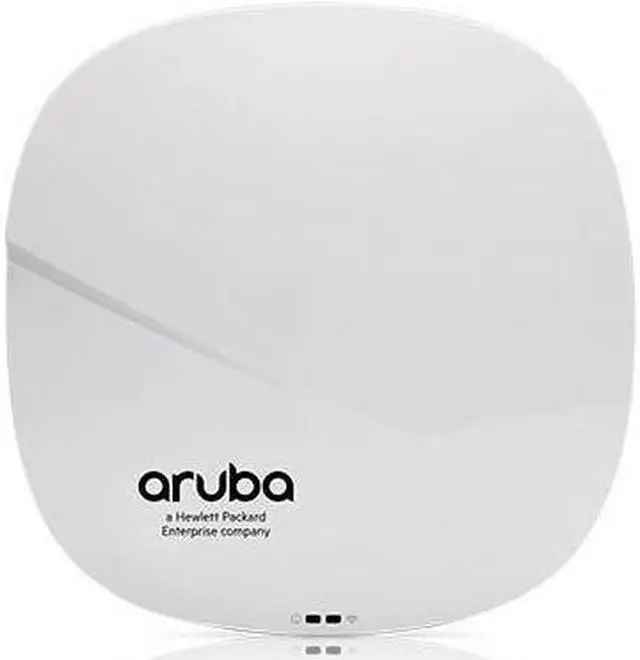

HP Aruba IAP-325 802.11n/ac PoE Wireless Access Point IAP-325-US JW327A

General InformationManufacturer: Hewlett Packard EnterpriseManufacturer
Part Number: JW327AManufacturer
Website Address:
http: //www. hpe.
comBrand Name: ArubaProduct
Line: InstantProduct
Series: 320Product
Model: IAP-325Product
Name: Instant IAP-325 Wireless Access PointMarketing Information: Multifunctional 320 series wireless APs provide the best 802.11 ac Wi-Fi connectivity and user experience. Featuring Aruba enhanced ClientMatch and Aruba Beacon technologies, the 320 series enables the highest capacity, performance, and efficiency in extremely highdensity environments. With a maximum concurrent data rate of 1, 733 Mbps in the 5 GHz band and 800 Mbps in the 2.4 GHz band (aggregated date rate of 2.5 Gbps), 320 Series Access Points deliver bestin-class next-generation. 11ac Wi-Fi infrastructure for the highest density environments. The high performance and high density 802.11 ac 320 series supports multi-user MIMO (MU-MIMO) and 4 spatial Access Point streams (4SS). It provides simultaneous data transmission to multiple devices, maximizing data throughput and improving network efficiency. The 320 series includes the patent-pending enhanced ClientMatch technology that extends the client steering technology with MU-MIMO client awareness. It automatically identifies MU-MIMO capable mobile devices and steers those devices to the closest MU-MIMO capable Aruba access point. By grouping MU-MIMO capable mobile devices together, the network starts taking advantage of the simultaneous transmission to these devices, increasing its overall capacity. These dynamic roaming policies that are based on device types, help customers achieve the best WLAN performance in a mixed device environment during the technology transition period.

The 320 series has an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of largescale battery-powered Aruba beacons while also providing advanced location and indoor way finding, and proximitybased push notification capabilities. It enables businesses to leverage mobility context to develop applications that will deliver an enhanced user experience and increase the value of the wireless network for organizations.
Product Type: Wireless Access PointTechnical InformationWireless
LAN Standard: IEEE 802.11 acFrequency
Band: 5 GHz 2.40 GHzTotal Number of
Antennas: 8Number of
Internal Antennas: 8Wireless
Transmission Speed: 2.50
Gbit/sMIMO Technology: YesBeamforming
Technology: YesInterfaces/PortsEthernet
Technology: Gigabit EthernetNumber of
Network (RJ-45) Ports: 2PoE (RJ-45)
Port: NoPoE
PD Port:
YesVGA:
NoHDMI:
NoUSB:
YesPowerline: NoManagement
Port: YesPhysical
CharacteristicsForm Factor: Wall
MountableCeiling MountableHeight: 2.2"W
idth:
8"Depth: 8"Weight
(Approximate): 2.09 lbMiscellaneousEnvironmentally
Friendly: YesCountry of
Origin: China
