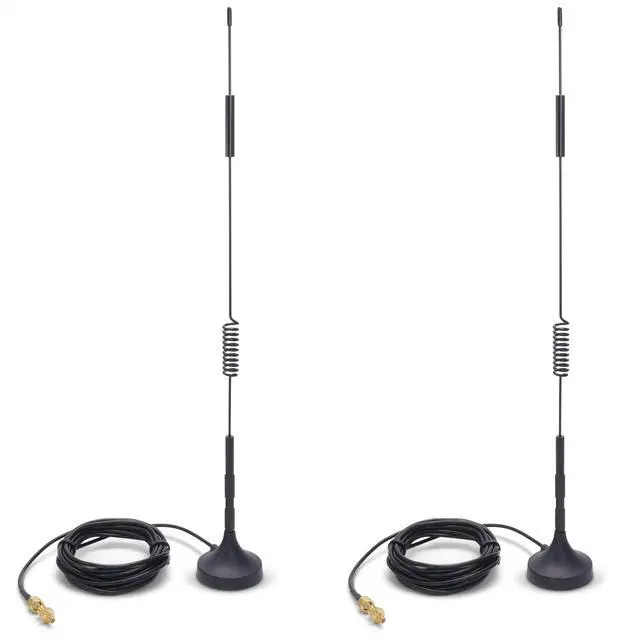

Proxicast 4G/5G Loaded Dipole Antenna
for Modems | Routers | Hotspots

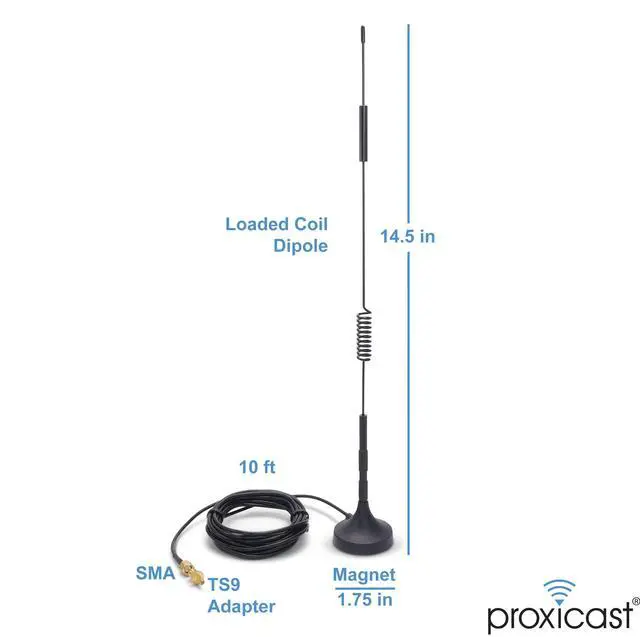

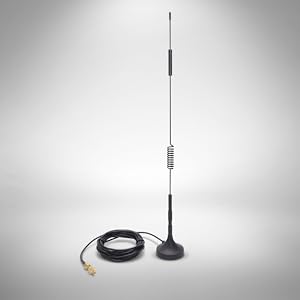

This wire whip 4G/5G/FirstNet/CBRS omnidirectional antenna provides up to 7 dBi of gain and supports all LTE and 5G sub-6 GHz frequency bands used by cellular carriers worldwide.
The 10 ft coax leads and magnetic base let you position the antenna for optimal signal reception.

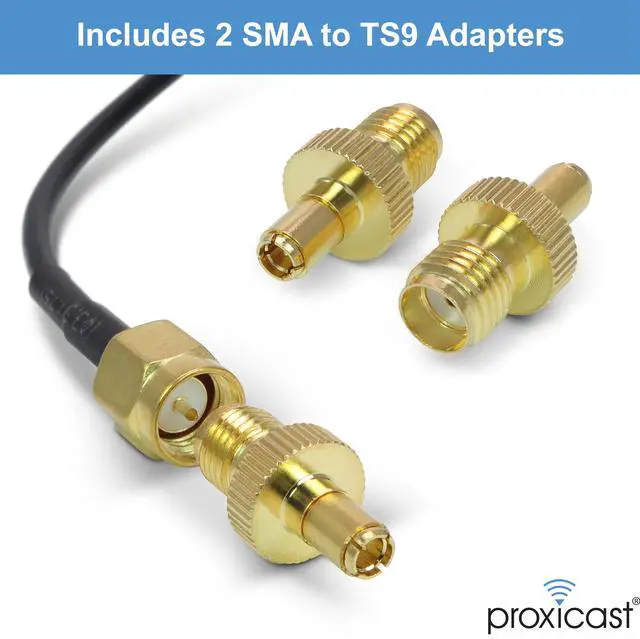

The SMA male screw-on plug and included TS9 push-on adapter make this antenna compatible with any brand/model of 4G/5G modem, hotspot or router.
Key Features
- Universal Compatibility
- 7 dBi Peak Gain
- 600 - 6000 MHz Frequency Coverage
- Omni Directional Radiation Pattern
- SMA Male Connector + TS9 Adapter
- 10 ft Coax Lead
- Magnetic Base

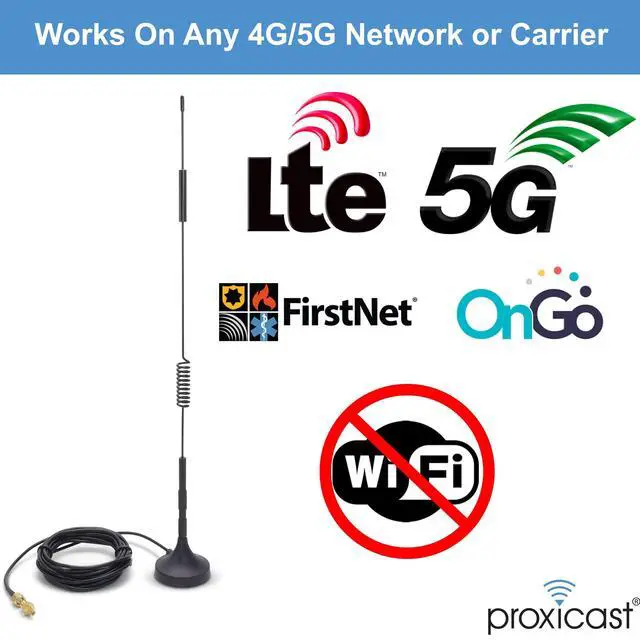

4G LTE, 5G, FirstNet & CBRS
Supports all 4G/LTE, 5G, FirstNet and OnGo (CBRS) radio bands between 600 and 6000 MHz. Compatible with all brands of modems and routers with SMA or TS9 antenna jacks.

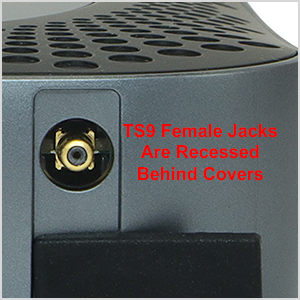

TS9 Connectors Are Delicate
TS9 connectors are compression fit - they are not intended for repeated insertions and removals. When inserting/removing the male connector, hold by the ridged ring and push/pull straight in/out. Pulling at an angle will loosen the male connector.

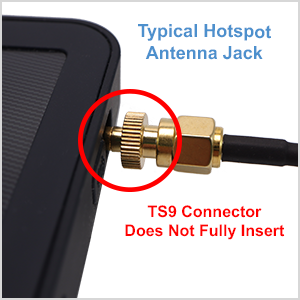

Don't Push Too Hard
TS9 connectors are *NOT* designed to fit all the way into the modem's external antenna port. Pressing the connector into the modem too firmly can damage the device.

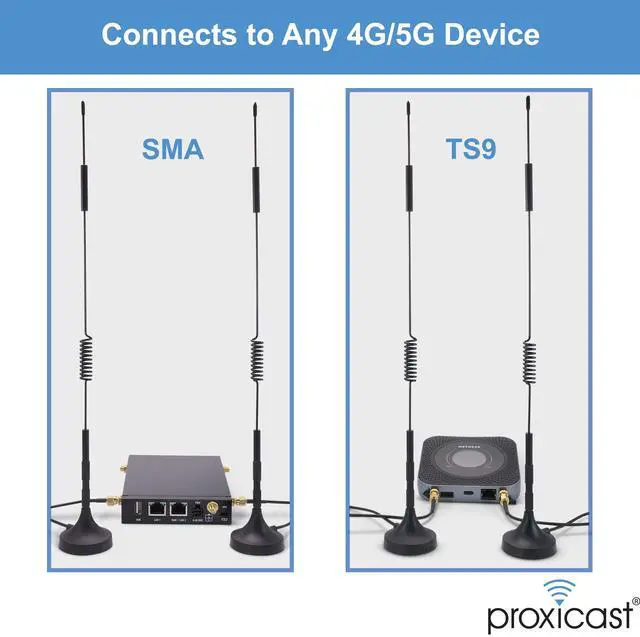

Compatible with any Modem, Hotspot or Router with External Antenna Connectors
• AT&T Nighthawk / Netgear MR1100 / M1, MR5100 / MR5200 / M5, MR6110 / MR6150 / MR6500 / MR6550 / M6, M6 Pro, MR7400 / M7 Pro, USB800, Velocity 2 (MF861 / MF985), MF923, Unite AC797, AC815S, 781S, 340U Beam, 313U Momentum, Elevate / Sierra 754S
• T-Mobile / Huawei E587 Sonic, Huawei UMG366 Jet 2.0, ZTE MF61, Netgear 341U, Netgear Zing 771S, Sierra 803S
• Verizon / InSeeGo (Novatel) USB730L, USB8L, MiFi 8800L, 7730L, USB730L, AC791L, MHS815L, U620L, 6620L, 551L, 4620L, MHS291L
• Sierra 312U, 320U, 330U
• Cradlepoint COR IBR, AER, ARC, MBR series
• Pepwave Balance, MAX series
• CalAmp CDM, LMU, Fusion, Vanguard series
• MoFi 4500, 5500
• KuWFi
• Sierra AirLink GX / ES / LS, oMG, Raven series
• Digi TransPort, ConnectPort, ConnectWAN
• Verizon Novatel T1114
Use high gain antennas when signal strength is below 60% (3 bars).
Specifications
For Best Results
- Orient antennas vertically
- Place on flat horizontal metal surface (min 8" diameter)
- Separate antennas by at least 2 feet
- Place away from motors, vertical metal objects, low-E coated windows
- Stand 3+ feet away from antenna when testing
- Maximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)
- This antenna does NOT mate with Wi-Fi or Helium (RP-SMA) antennas jacks
 ANT-120-008 |  ANT-120-006 |  ANT-122-M19 |  ANT-110-003 |  ANT-124-WAV | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — no data |
| 4G/LTE & FirstNet | ? | ? | ? | ? | ? |
| 5G & CBRS | ? | ? | ? | ? | ? |
| Mounting | Screw On | Screw On | Magnetic/Adhesive | Adhesive | Screw On |
| Peak Gain | 6 dBi | 8 dBi | 2.5 dBi | 3.5 dBi | 8 dBi |
Pittsburgh-based Proxicast designs and builds innovative wireless products.
Our 4G/5G, Wi-Fi and GPS antennas, cables and related accessories are deployed by major organizations for their mission critical projects all over the world.
Now you can get the same high quality, high performance professional-grade products for your application.
High Gain Outdoor Antennas
Vandal Resistant & Low-Profile
Magnetic Antennas
Combination Vehicle Antennas
Low Loss Coaxial Cables
Mounting Solutions
Accessories
Power Management Devices
What Our Customers Say
Proxicast 4G/5G Loaded Dipole Antenna
for Modems | Routers | Hotspots
This wire whip 4G/5G/FirstNet/CBRS omnidirectional antenna provides up to 7 dBi of gain and supports all LTE and 5G sub-6 GHz frequency bands used by cellular carriers worldwide.
The 10 ft coax leads and magnetic base let you position the antenna for optimal signal reception.
The SMA male screw-on plug and included TS9 push-on adapter make this antenna compatible with any brand/model of 4G/5G modem, hotspot or router.
Key Features
- Universal Compatibility
- 7 dBi Peak Gain
- 600 - 6000 MHz Frequency Coverage
- Omni Directional Radiation Pattern
- SMA Male Connector + TS9 Adapter
- 10 ft Coax Lead
- Magnetic Base
4G LTE, 5G, FirstNet & CBRS
Supports all 4G/LTE, 5G, FirstNet and OnGo (CBRS) radio bands between 600 and 6000 MHz. Compatible with all brands of modems and routers with SMA or TS9 antenna jacks.
TS9 Connectors Are Delicate
TS9 connectors are compression fit - they are not intended for repeated insertions and removals. When inserting/removing the male connector, hold by the ridged ring and push/pull straight in/out. Pulling at an angle will loosen the male connector.
Don't Push Too Hard
TS9 connectors are *NOT* designed to fit all the way into the modem's external antenna port. Pressing the connector into the modem too firmly can damage the device.
Compatible with any Modem, Hotspot or Router with External Antenna Connectors
• AT&T Nighthawk / Netgear MR1100 / M1, MR5100 / MR5200 / M5, MR6110 / MR6150 / MR6500 / MR6550 / M6, M6 Pro, MR7400 / M7 Pro, USB800, Velocity 2 (MF861 / MF985), MF923, Unite AC797, AC815S, 781S, 340U Beam, 313U Momentum, Elevate / Sierra 754S
• T-Mobile / Huawei E587 Sonic, Huawei UMG366 Jet 2.0, ZTE MF61, Netgear 341U, Netgear Zing 771S, Sierra 803S
• Verizon / InSeeGo (Novatel) USB730L, USB8L, MiFi 8800L, 7730L, USB730L, AC791L, MHS815L, U620L, 6620L, 551L, 4620L, MHS291L
• Sierra 312U, 320U, 330U
• Cradlepoint COR IBR, AER, ARC, MBR series
• Pepwave Balance, MAX series
• CalAmp CDM, LMU, Fusion, Vanguard series
• MoFi 4500, 5500
• KuWFi
• Sierra AirLink GX / ES / LS, oMG, Raven series
• Digi TransPort, ConnectPort, ConnectWAN
• Verizon Novatel T1114
Use high gain antennas when signal strength is below 60% (3 bars).
Specifications
| Frequency Range: | 600-6000 MHz |
| Impedance: | 50 Ohms |
| Peak Gain: | 7 dBi |
| Radiation Pattern: | Omni-directional |
| Polarization: | Vertical |
| VSWR: | < 2.0:1 in band |
| Ground Plane: | 8" Min Recommended |
| Connector: | SMA Male + TS9 Male |
| Coax Length | 10 ft (3 m) of Low-Loss LMR100 |
| Material: | Polycarbonate / Copper / Steel - RoHS compliant |
| Operating Temp: | -40C to +60C |
| Height: | 14.6 inches / 370 mm |
| Diameter: | 1.75 inches / 45 mm |
For Best Results
- Orient antennas vertically
- Place on flat horizontal metal surface (min 8" diameter)
- Separate antennas by at least 2 feet
- Place away from motors, vertical metal objects, low-E coated windows
- Stand 3+ feet away from antenna when testing
- Maximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)
- This antenna does NOT mate with Wi-Fi or Helium (RP-SMA) antennas jacks

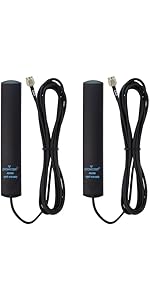

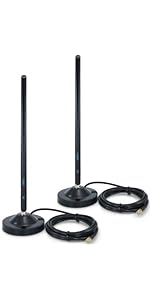

ANT-120-008 | ANT-120-006 | ANT-122-M19 | ANT-110-003 | ANT-124-WAV | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — no data |
| 4G/LTE & FirstNet | ? | ? | ? | ? | ? |
| 5G & CBRS | ? | ? | ? | ? | ? |
| Mounting | Screw On | Screw On | Magnetic/Adhesive | Adhesive | Screw On |
| Peak Gain | 6 dBi | 8 dBi | 2.5 dBi | 3.5 dBi | 8 dBi |
