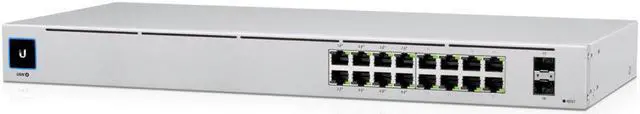

Ubiquiti USW-16-POE UniFi 16-Port PoE Switch

General Information

Manufacturer: Ubiquiti Networks Inc
Manufacturer Part Number: USW-16-POE
Manufacturer Website Address: www. ubnt. com
Brand Name: Ubiquiti
Product Line: Uni
Fi
Product Model: USW-16-POE
Product Name: Uni
Fi 16-Port PoE Switch
Marketing Information:

The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3 at PoE+ ports and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9" the compact fanless design can be easily installed in a SOHO rack cabinet.

Managed and configured by the Uni
Fi Network Controller with Uni
Fi mobile app support the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features including operation mode (switching mirroring or aggregate) per port. The Uni
Fi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Product Type: Ethernet Switch

Interfaces/Ports

Total Number of
Network Ports: 16
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details: 8 x Gigabit Ethernet PoE+
Port/Expansion Slot Details: 2 x Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details: 8 x Gigabit Ethernet Network

Media & Performance

Media Type Supported: Optical Fiber
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-X
Network Technology: 10/100/1000Base-T

I/O Expansions

Number of
Total Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP
Slots: 2

Network & Communication

Layer Supported: 2

Management & Protocols

Manageable: Yes

Power Description

Power Source: Power Supply

Physical Characteristics

Compatible Rack Unit: 1U
Form Factor: Desktop
Form Factor: Rack-mountable
Height: 1.7"
Width: 17.4"
Depth: 7.9"
Weight (Approximate): 6.17 lb

Miscellaneous

Package Contents:

• Uni
  Fi 16-Port PoE Switch
• Rackmount Hardware

Environmentally Friendly: Yes
Environmental Certification: WEEE

Warranty

Limited Warranty: 1 Year
