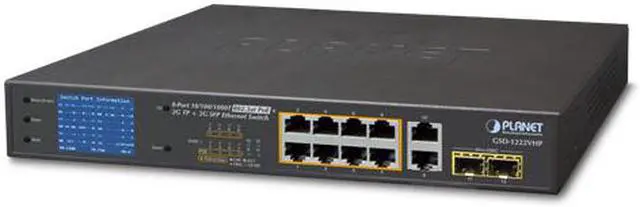

Planet GSD-1222VHP 8-Port 802.3at PoE + 2-Port 10/100/1000T 2-Port SFP Ethernet Switch with PoE LCD Monitor

Just “Plug and Watch” for a Quick Solution PLANET GSD-1222VHP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required. PLANET GSD-1022VHP is equipped with 8 10/100/1000BASE-T ports with each port taking up 30 watts of PoE+ power, and 2 Gigabit TP and 2 Gigabit SFPinterfaces with inner power system. With a total PoE+ power budget of 120 watts and non-blocking data switching performance, the GSD-1222VHP can fulfill the demand of sufficient PoE power for HD IP surveillance.

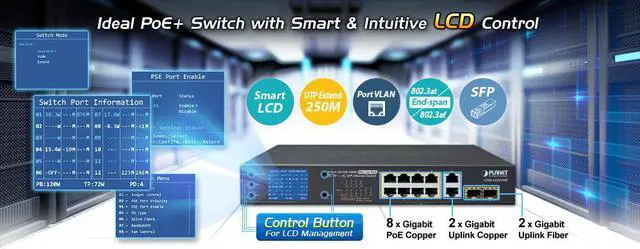

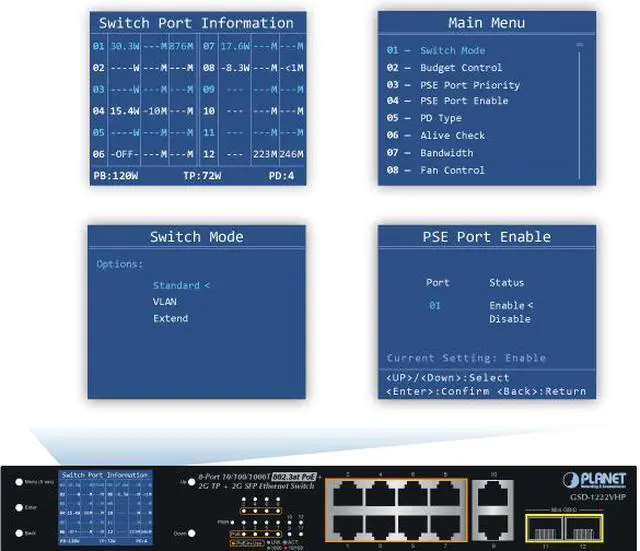

It offers a desktop-sized, reliable and visible power solution for small businesses and system integrators deploying Power over Ethernet networks. Smart and Intuitive LCD Control PLANET GSD-1222VHP provides an intuitive color panel on its front panel that facilitates the Ethernet management and PoE PD management. They greatly promote management efficiency in large-scale networks for enterprises, hotels, shopping malls, government buildings and other public areas, and feature the following special management and status functions: Physical Port - 8-port 10/100/1000BASE-T Gigabit RJ45 copper - 2 1000BASE-X mini-GBIC SFP interfaces - 2 10/100/1000BASE-T TP interfaces - Power over Ethernet - Complies with IEEE 802.3 af/at Power over Ethernet end-span PSE - Up to 8 ports of IEEE 802.3 af/ 802.3 at devices powered - Supports PoE power up to 32 watts for each PoE port - Each port supports 54V DC power to PoE powered device - 120-watt PoE budget - Auto detects powered device (PD) - Circuit protection prevents power interference between ports - Remote power feeding up to 100m in standard mode and 250m in extend mode - Smart LCD - The LCD switch features “Standard”, “VLAN” and “Extend” mode selection; the “Extend” mode features 30- - watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation - The LCD switch is able to isolate ports to prevent broadcast storm and defend DHCP spoofing - Power low-voltage, power over-voltage and PSE over-temperature protection - Screen saver, fan control, factory default and save configuration - PoE management - Total PoE power budget control - Per port PoE function enable/disable - PoE port power feeding priority - Per PoE port power limitation - PD alive check - Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X - Flow control for full duplex operation and back pressure for half duplex operation - 9216bytes packet size - Integrates address look-up engine, supporting 8K absolute MAC addresses - IEEE 802.1Q VLAN transparency - Automatic address learning and address aging - 12-inch desktop size, 1U height, rack mountable - 2-inch color LCD with smart management functions - LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act - 1 silent fan to provide stable and efficient power performance - Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3 az) - Supports contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection - Supports ±6KV surge immunity
