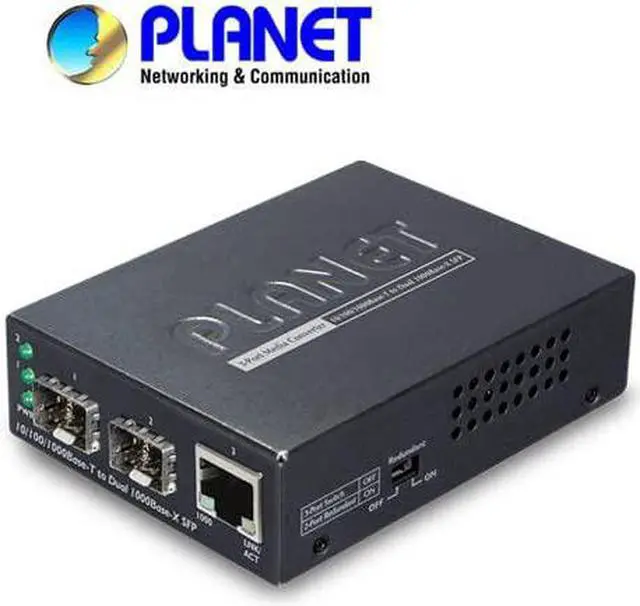

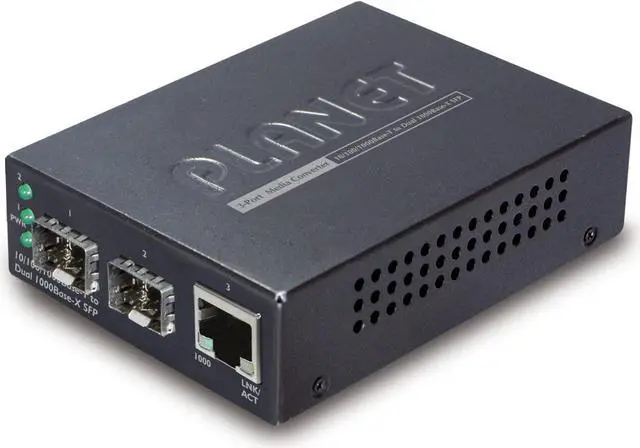

Planet GT-1205A 1-Port 10/100/1000Base-T to 2-Port 1000FX (SFP) DIP Switch Black Switch Media Converter
- PLUG & PLAY INSTALLATION: As the GT-1205A Gigabit Media Converter fully complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T and IEEE 802.3z 1000BASE-LX/SX, the Gigabit media conversion installation is quite quick and easy simply by using the plug and play feature.
- EASY DEPLOYMENT: The GT-1205A Gigabit Media Converter can be used as a standalone unit or as a slide-in module to the PLANET Media Converter Chassis, MC-700 and MC-1500 chassis series. These media chassis can assist in providing DC power to the GT-1205A Gigabit Media Converter and the fiber-optic network can be maintained at one central location.
- ADJUSTABLE 3-PORT SWITCH MODE or 2 FIBER PORT REDUNDANT MODE: Via the built-in DIP switch, the GT-1205A can be configured as 3-port Ethernet switch or 2-port Redundant Media converter. With the 3-port switch mode, the GT-1205A can operate in Store-and-Forward mechanism with high performance. When in the 2-port redundant mode, it provides rapid fi
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The PLANET GT-1205A Gigabit SFP Media Converter has a list of features and functions. DIP Switch for 3-port Operation in Gigabit Switch Mode or Redundant Mode
Hardware Fiber Port Redundant
Standard
Complies with IEEE 802.3 10BASE-T
Complies with IEEE 802.3u 100BASE-TX
Complies with IEEE 802.3ab 1000BASE-T
Complies with IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3x Full-duplex Flow-Control, Back-Pressure in Half-duplex eliminate packets loss
Interface

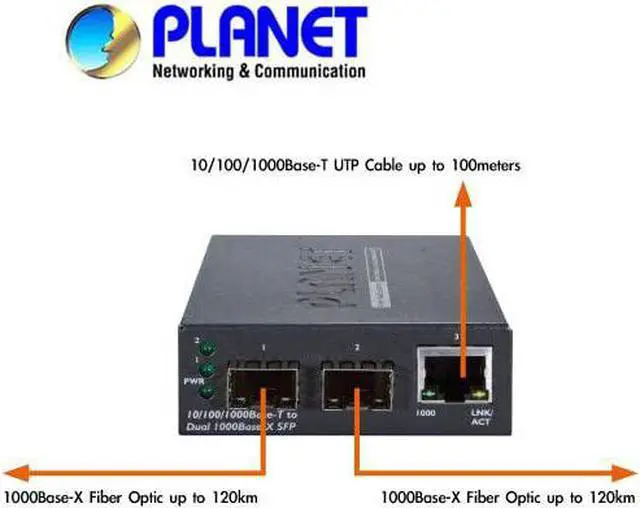

Dual 1000BASE-SX/LX SFP fiber-optic slots
One 10/100/1000BASE-T Copper, auto MDI/MDIX function
Auto-Negotiation for 10/100/1000BASE-T; Half-duplex or Full-duplex for 10Mbps and 100Mbps, Full-duplex for 1000Mbps
Supports maximum frame size up to 10K jumbo packet size
IEEE 802.1Q Tag VLAN Transparent, Multicast pass-through
Redundancy
Link status auto-detecting and redundant on Dual ports with the same connector type
Allows only the Primary-Port or the Backup-Port active at a time When the Primary-Port link fail occurs, the traffic swaps to Backup-Port automatically
Once the Primary-Port link regains, the traffic swaps from the Backup-Port to the Primary-Port
Hardware fiber port redundant
Mechanical
External 5V/2.5A DC power supply
LED indicators for easy network diagnose

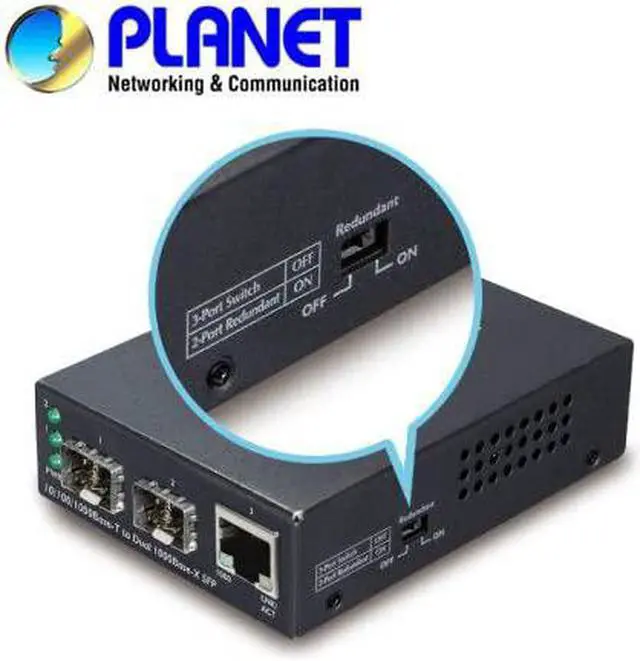

DIP switch for 3-port operation with Gigabit switch mode or redundant mode
Compact in size, easy installation
Co-works with PLANET 10/19 Media Converter Chassis (MC-700/MC-1500/MC-1500R/MC-1500R48)
Wall mounting and DIN-Rail installation supported
