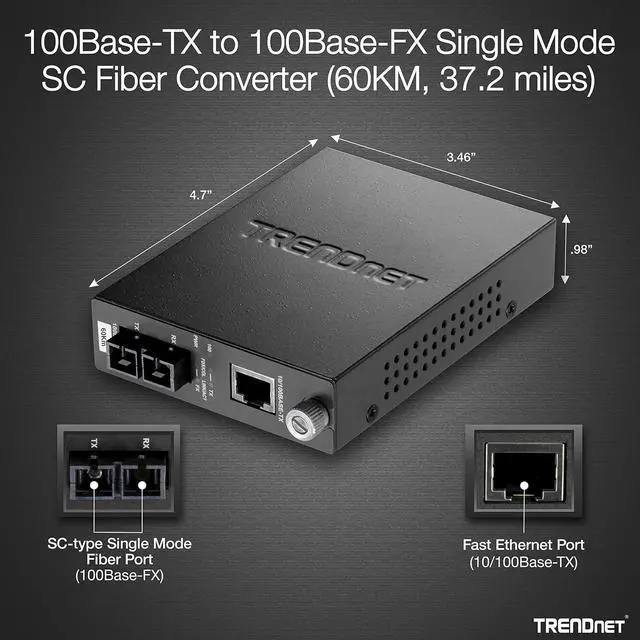

TRENDnet 100Base-TX to 100Base-FX Single Mode SC Fiber Media Converter (60 Km, 37.3 Miles), Auto-Negotiation, Full Duplex, RJ-45 Port, Fiber to Ethernet Converter, Lifetime Protection, TFC-110S60

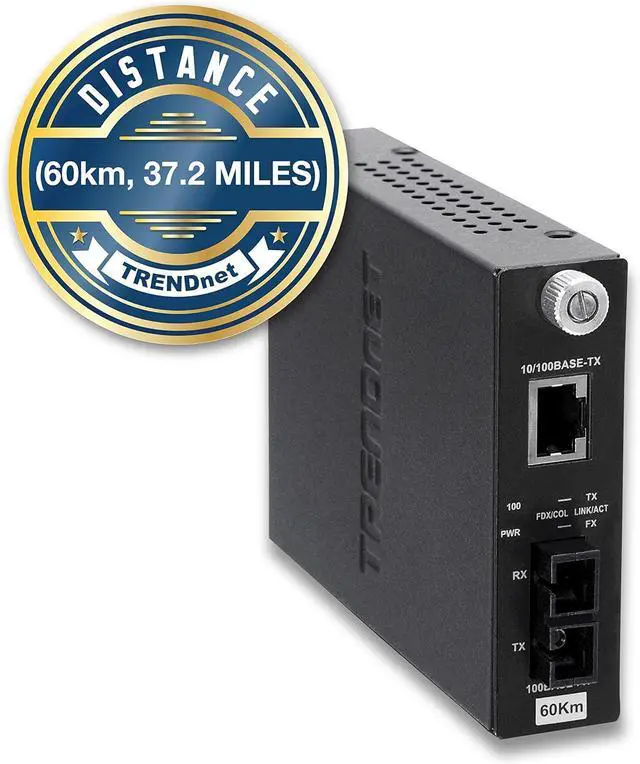

- SC type single-mode fiber port connects over distances of up to 60km (37.2miles)
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
- Lifetime TRENDnet Manufacturers Warranty
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Previous page
Next page TFC-110S60 Multi-Language Quick Installation Guide Power Adapter (5V, 1A)
The TFC-110S60 Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Single Mode SC-Type fiber converter spanning distances up to 60km (37.2 Miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).
Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
1 x 10/100Base-TX auto-negotiation RJ-45 port
Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
Auto MDIX for 10/100Base-TX port
1 x 100Mbps fiber port with single-mode SC-type connector
Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
Provides dip-switch for full and half duplex selection on fiber port
Wall mountable
Optional 19 system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Standard IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FXSupported Frame Size Standard Ethernet up to 1518bytesNetwork Media 100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m 100Base-FX: Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 60kmProtocol CSMA/CDPorts 1 x 10/100Base-TX 1 x 100Base-FX (SC-type)Dip Switch FX: duplex mode (half/full)Transfer Rate 100Mbps (half-duplex) 200Mbps (full-duplex)Diagnostic LED Per Unit: power Per Port: link/activity, full-duplex/collision, speed (on fiber port)Power Adapter 5V DC, 1A external power adapterPower Consumption 1.8 Watts (max)Temperature Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -25° ~ 70° C (-13° ~ 158° F)Humidity Max. 90% (non-condensing)Certification FCC,CEMedia SMFWavelength 1310nmPower 30 NETWORK SWITCHES POE SWITCHES INDUSTRIAL SWITCHESPATCH PANELS & KEYSTONE JACKS FIBER KVM SWITCHES WIRELESS POWERLINE MOCA ETHERNET ADAPTERS USB,FIREWIRE & ACCESSORIES CABLE TOOLS & TESTERS HARDWARE
Next page TFC-110S60 Multi-Language Quick Installation Guide Power Adapter (5V, 1A)
The TFC-110S60 Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Single Mode SC-Type fiber converter spanning distances up to 60km (37.2 Miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).
Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
1 x 10/100Base-TX auto-negotiation RJ-45 port
Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
Auto MDIX for 10/100Base-TX port
1 x 100Mbps fiber port with single-mode SC-type connector
Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
Provides dip-switch for full and half duplex selection on fiber port
Wall mountable
Optional 19 system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Standard IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FXSupported Frame Size Standard Ethernet up to 1518bytesNetwork Media 100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m 100Base-FX: Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 60kmProtocol CSMA/CDPorts 1 x 10/100Base-TX 1 x 100Base-FX (SC-type)Dip Switch FX: duplex mode (half/full)Transfer Rate 100Mbps (half-duplex) 200Mbps (full-duplex)Diagnostic LED Per Unit: power Per Port: link/activity, full-duplex/collision, speed (on fiber port)Power Adapter 5V DC, 1A external power adapterPower Consumption 1.8 Watts (max)Temperature Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -25° ~ 70° C (-13° ~ 158° F)Humidity Max. 90% (non-condensing)Certification FCC,CEMedia SMFWavelength 1310nmPower 30 NETWORK SWITCHES POE SWITCHES INDUSTRIAL SWITCHESPATCH PANELS & KEYSTONE JACKS FIBER KVM SWITCHES WIRELESS POWERLINE MOCA ETHERNET ADAPTERS USB,FIREWIRE & ACCESSORIES CABLE TOOLS & TESTERS HARDWARE
