NETGEAR
BUSINESS
8 Port 1G/10G/Multi-Gig Unmanaged Switch
[GS108MX]
Unlock the Potential of your Gigabit devices

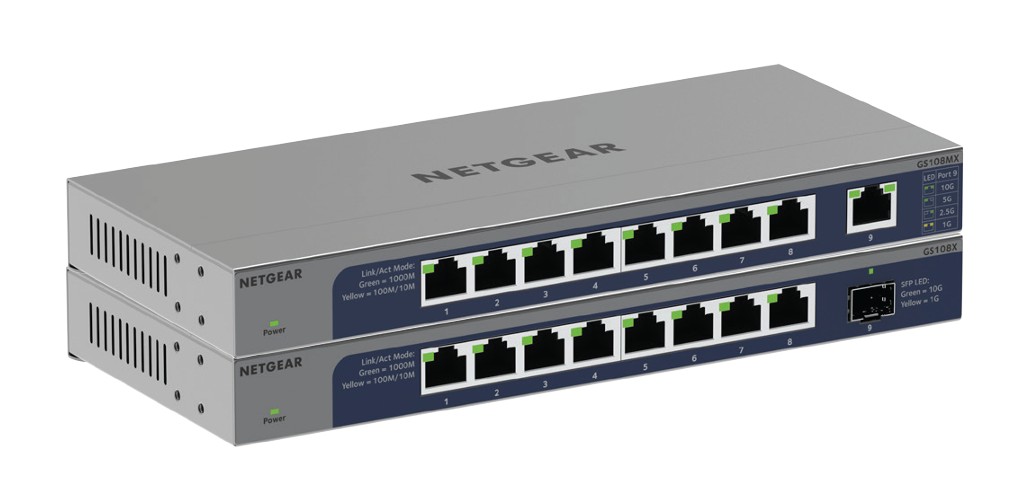

The NETGEAR 8-port Gigabit Unmanaged Switches, GS108X and GS108MX, help businesses cost-effectively connect their network with powerful gigabit speeds.
The GS108MX features one 10G/Multi-Gig Ethernet port for non-blocking uplink while the GS108X features a 10G SFP+ port for non-blocking uplink over longer distances.
Both switches come with eight 1G Ethernet ports housed in a fanless metal case that can be placed on a desk or mounted on a wall. These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need.
Highlights
Plug and Play
- Simple set up with no software to install or configuration needed and zero maintenance
10 Gigabit Uplink
- For the GS108X, the SFP+ fiber uplink offers an expanded, long-distance connection for more than 100m. Requires fiber transceiver.
- With the GS108MX the 10G/Multi-Gig uplink reduces network bottlenecks.
Flexible Mounting
- Wall-mount or desktop
Small Form Factor
- Compact design to fit in any small cabinet or wiring panel
High Quality and Reliable Performance
- Durable metal case and long product life (shown by MTBF numbers)
LED to indicate activity on each port
- Check port activity directly on the switch for network activity status.
Silent Switches
- Fanless quiet operation
Industry Leading Warranty
- Limited Lifetime* Hardware Warranty
Hardware at a Glance
| Model Name | Form-Factor | 10M / 100M / 1G Copper Ports | 10 Gig SFP+ Ports | 10G / Multi-Gig Ports | LED’s | Case Material | Fans | Power Supply |
| GS108MX | Desktop/wall-mount | 8 | 0 | 1 | Power, Port Link / Speed / Activity | Metal | Fanless | External |

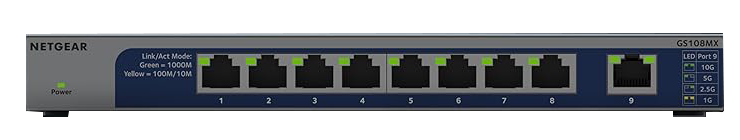

GS108MX – Front
- 8 × Gigabit Copper Ports
- 1 × 10G/Multi-Gig Port

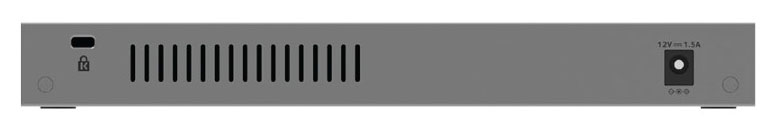

GS108MX – Back
- External power adapter (varies by region)
Software at a Glance
| Model Name | Management | VLANs | EEE (802.3az) Auto-EEE | Jumbo Frame Support |
| GS108MX | Unmanaged | No | Yes | Yes |
Performance at a Glance
| Model Name | Fabric | Packet Buffer | Latency (Max Connection Speed) | MAC Address Table | Priority Queues | Packet Forwarding Rate (64 byte) | Jumbo Frames (bytes) |
| GS108MX | 36 Gbps line-rate | 768KB | 100Mbps: <5µs 1Gbps: <2µs 2.5Gbps: <4µs 5Gbps: <3µs 10Gbps: <2µs |
16K Entries (dynamic) | 8 (WRR) | 41.664 Mfps | up to 9728 byte |
