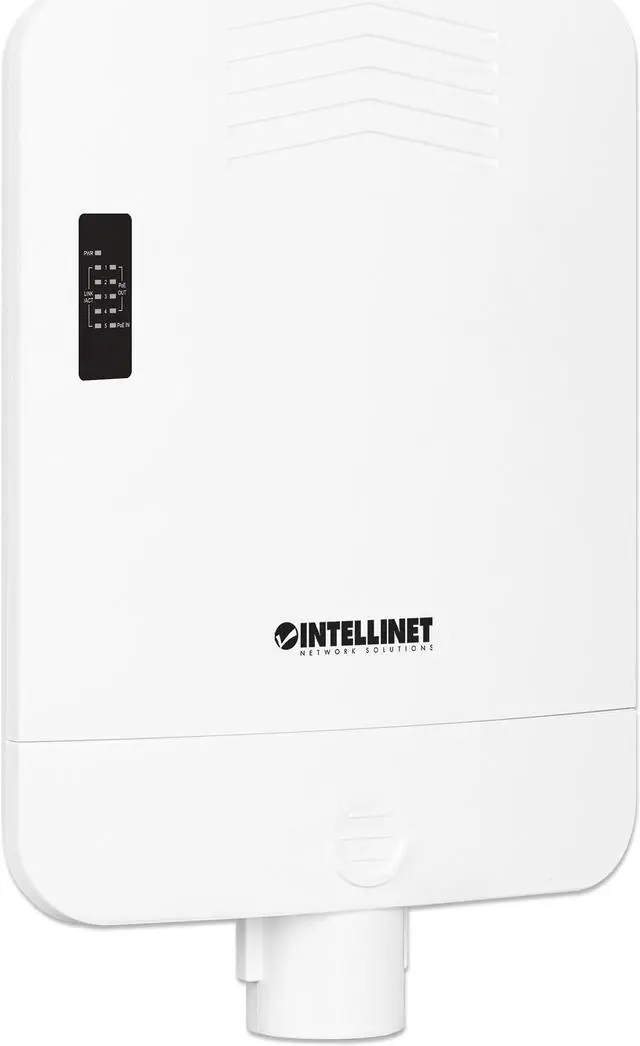

Intellinet Outdoor PoE-Powered 5-Port Gigabit Switch with PoE Passthrough / 4-Port PoE+ Extender |Rainproof IP65, NEMA 4, for Wall- and Pole-Mounting, Adds up to 328 ft. to PoE Range

Introducing the Intellinet Network Solutions Waterproof Outdoor PoE Switch, a state-of-the-art solution engineered for robust outdoor network connectivity. Designed to draw power from a PoE switch or injector, this 5-Port Gigabit Switch seamlessly transmits data and electrical power to multiple PoE-compatible devices using standard Ethernet cables. With its capability to power up to four IP video cameras or wireless access points, and deliver network speeds up to 1,000 Mbps, this switch is ideal for expanding your outdoor surveillance infrastructure. Its IP65-rated weatherproof housing ensures reliable performance in harsh conditions, from extreme temperatures to rain and dust. The switchs PoE passthrough technology effectively extends the range between PoE sources and devices, doubling the connection distance to 200 meters. With compliance to the IEEE 802.3bt protocol, it supports a significant power input of up to 90 W. Offering installation flexibility, this switch can be mounted on walls or poles, ensuring adaptability to various environments. Its fanless, plug-and-play design facilitates hassle-free setup, while built-in protections guard against electrical surges. This switch, backed by a three-year warranty, combines reliability and innovation, making it an indispensable asset for outdoor PoE applications, enhancing both convenience and performance.

Features:

• PoE-powered switch in a weatherproof housing, ideal for IP camera installations and other outdoor PoE applications
• Supports up to 90 W power input from a IEEE 802.3bt PoE++ injector or switch for a PoE power budget up to 85 W
• Provides up to four PoE network devices with power and data

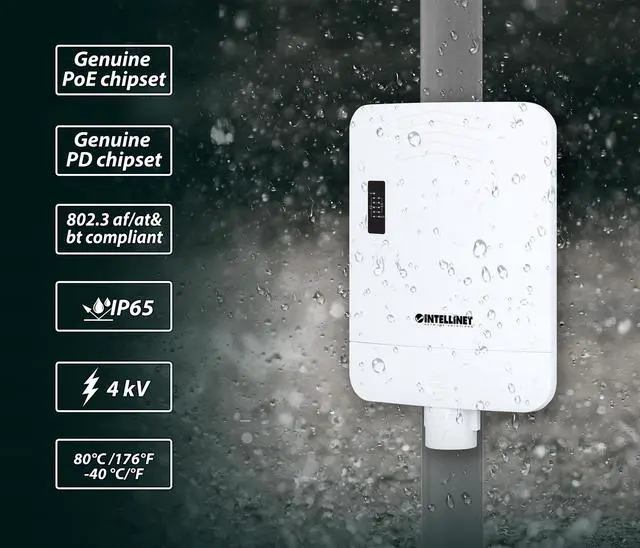

• IP65-rated, dustproof and waterproof, NEMA 4

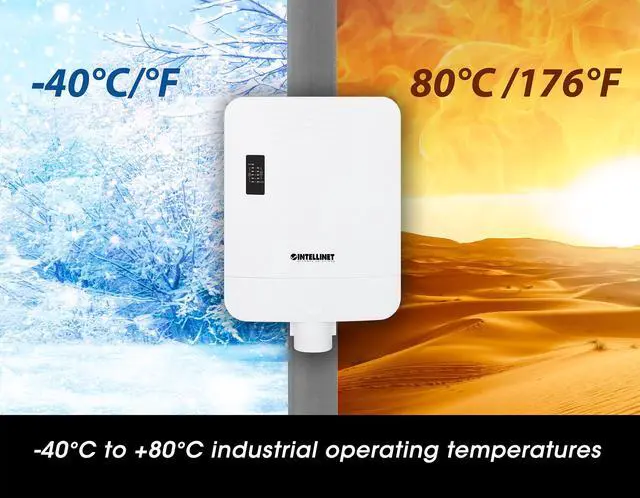

• Suitable for extreme operating temperatures of -40 to 80ºC (-40 to 176ºF)
• Doubles the connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
• Power output up to 30 watts per port
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• PoE power budget of 25 W through IEEE 802.3at connection and 10.4 W through IEEE 802.3af connection
• 10 Gbps switch fabric / switching capacity
• 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
• Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
• Supports jumbo frames up to 9216 Bytes
• Store and forward switching architecture
• Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
• Supports 2k MAC address entries with Auto-learning and Auto-aging
• Buffer memory of 2 Mbits
• Grounding point to protect equipment from external electrical surges
• PoE surge protection up to 4 kV in common mode and 2 kV in differential mode for all RJ45 ports
• Bracket with installation holes on the back, suitable for wall and pole mounting
• Fanless design
• Plug-and-play installation; no configuration required
• Fully NDAA-compliant
• Three-year warranty

Specifications:

Standards

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)

• IEEE 802.3af (Power over Ethernet 802.3at Type 1)

• IEEE 802.3at (Power over Ethernet 802.3at Type 2)

• IEEE 802.3bt (PoE++/4PPoE Power over Ethernet)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3x (flow control, for full duplex mode)

  General

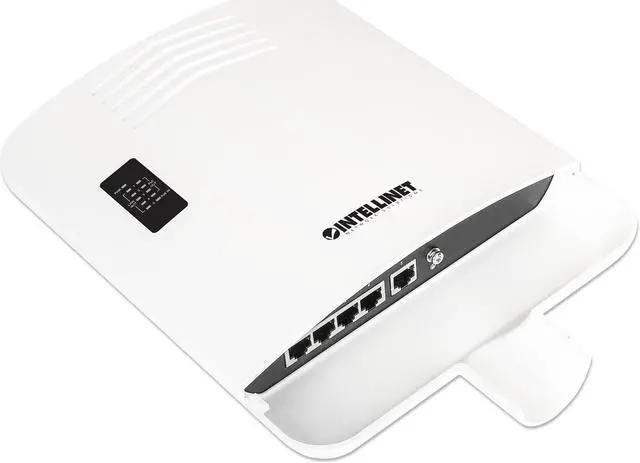

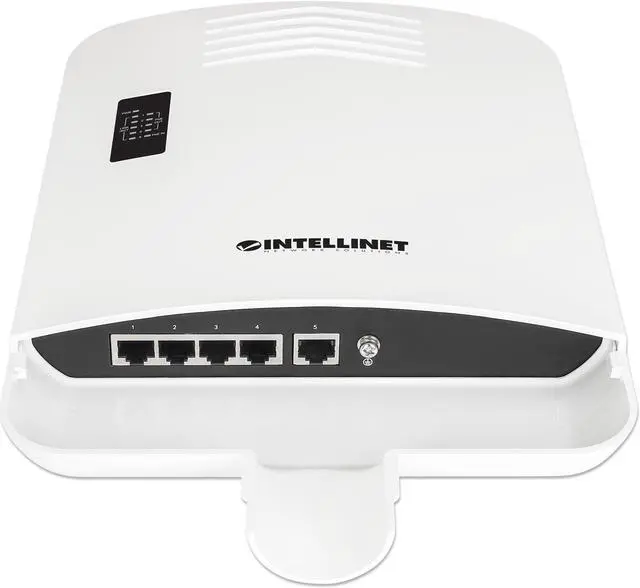

• Ports
  - Four 10/100/1000 Mbps RJ45 PoE+ PSE output ports
  - One 10/100/1000 Mbps RJ45 uplink port that can also serve as a PoE+ PD input port
  - One 10/100/1000 Mbps RJ45 uplink port

• Media support
  - 10Base-T Cat5e/6/6a/8.1 UTP/STP RJ45, 8 pin
  - 100Base-TX Cat5e/6/6a/8.1 UTP/STP RJ45, 8 pin
  - 1000Base-T Cat5e/6/6a/8.1 UTP/STP RJ45, 8 pin

• MAC address table: 2k

• Buffer memory: 2 Mbits

• Forwarding rate: 7.44 Mpps

• MTBF: >50k hours

• Backplane speed/switch fabric: 10 Gbps

• Switch architecture: store and forward

• Certifications: FCC, CE, RoHS, UKCA, NDAA

  LEDs

• POE IN

• POE OUT

• LINK

• PWR

  Pinout RJ45 input port
  - Pin 1: DC (-)
  - Pin 2: DC (-)
  - Pin 3: DC (+)
  - Pin 4: DC (+)
  - Pin 5: DC (+)
  - Pin 6: DC (+)
  - Pin 7: DC (-)
  - Pin 8: DC (-)

  Pinout RJ45 output ports
  - Pin 1: DC (-)
  - Pin 2: DC (-)
  - Pin 3: DC (+)
  - Pin 6: DC (+)

  Power

• PoE input voltage: 50.0 - 57.0 V DC

• PD input and PoE power budget
  - 90.0 W (IEEE 802.3bt) input: 85 W total output
  - 30.0 W (IEEE 802.3at) input: 25.0 W total output
  - 15.4 W (IEEE 802.3af) input: 10.4 W total output

  Physical

• IP65-rated plastic housing (weatherproof)

• Dimensions (L x W x H): 299 x 206 x 65 mm (11.77 x 8.11 x 2.66 in.)

• Net weight: 1 kg (2.2 lbs.)

• Gross weight: 1.3 kg (2.87 lbs.)

• Operating temperature: -40 - 80°C (-40 - 176°F)

• Storage temperature: -40 - 80°C (-40 - 176°F)

• Operating humidity: up to 90% RH, non-condensing

• Storage humidity: up to 95% RH, non-condensing

  Package Contents

• Outdoor PoE-Powered 5-Port Gigabit Switch with PoE Passthrough / 4-Port PoE+ Extender

• Instructions
