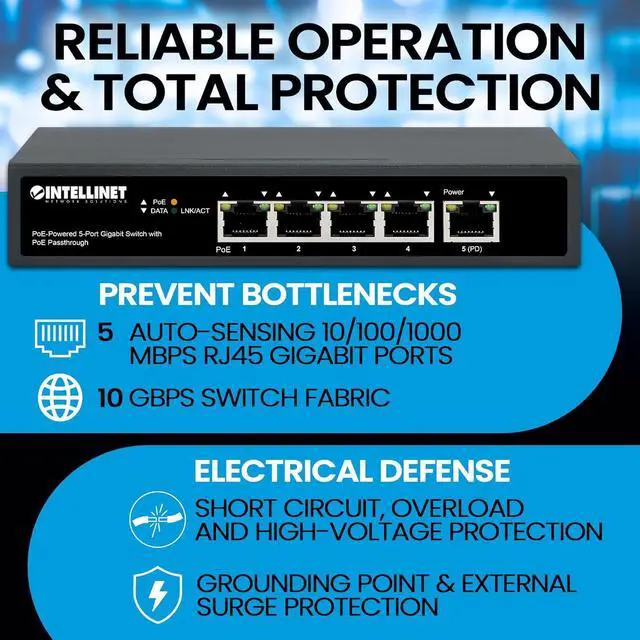

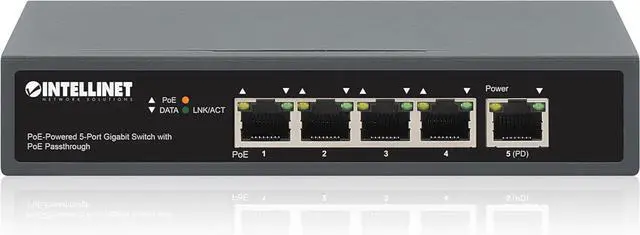

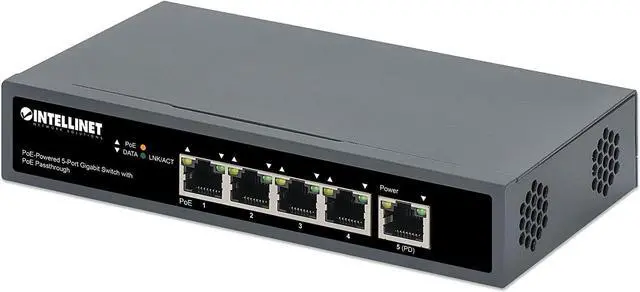

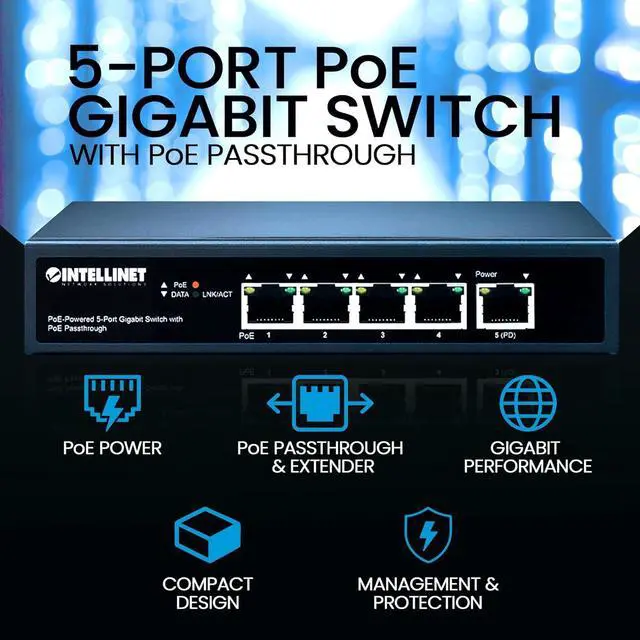

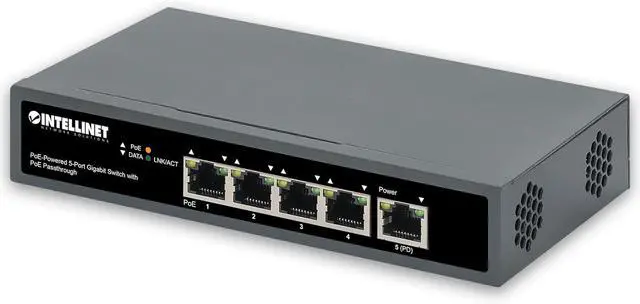

Intellinet PoE-Powered 5 Port Gigabit Switch with PoE Passthrough One IEEE 802.3bt PoE++ PD Port, Five PoE+ Ports - 65W Power Budget - Fanless Silent - 3 Yr Mfg Warranty - 561808
- Power Over Ethernet (PoE) Flexibility: This switch supports both PoE and traditional power sources, offering versatility for your network setup. You can power it using a PoE injector, switch, or the included power adapter, making installation straightforward regardless of your environment.
- Extended Range: Unlike standard PoE devices that have a 100 m limit, this switch doubles the distance to 200 m. This allows for more flexible device placement without compromising connectivity, which can be particularly useful in larger spaces or complex layouts.
- Multiple Device Support: With the ability to power up to four PoE devices simultaneously, this switch is well suited for setups that include IP cameras, VoIP phones, and wireless access points. It simplifies your network by delivering both power and data through a single cable.
- Reliable Performance: Features like auto-sensing ports and support for jumbo frames ensure optimal network speeds and efficient data handling. With a 10 Gbps swit
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This compact switch lets you bring data and power wherever you need it without extra outlets or messy cables. Simply connect the PD port to an IEEE 802.3bt-compliant PoE injector or switch to draw up to 95 watts of power, or use the included adapter for up to 65 watts. It then passes both power and gigabit-speed data to four deviceslike wireless access points, IP cameras or VoIP phoneswhile quietly extending PoE reach from 328 to 656 feet. The all-metal, fanless design tucks neatly onto a desktop or mounts on the wall, complete with surge-protection grounding, jumbo-frame support and a 10 Gbps fabric for smooth, reliable performance.
Delivers data and power over one cableExtends PoE reach from 328 ft. to 656 ft.Up to 30 W per port

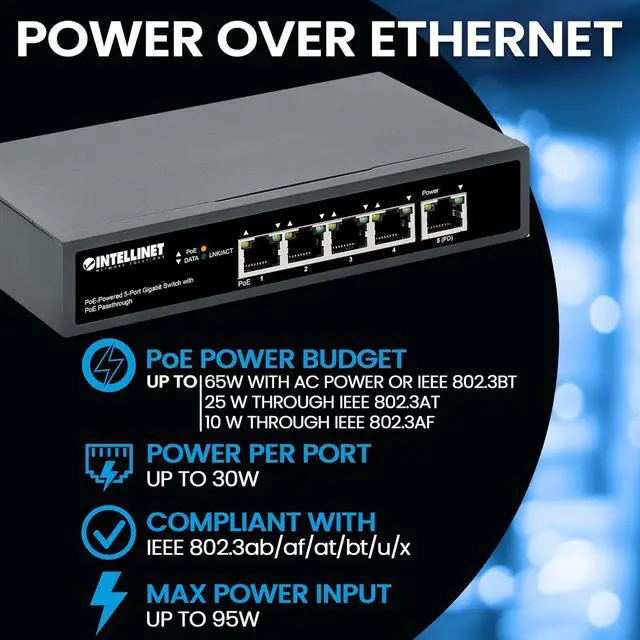

Draws up to 95 W from an IEEE 802.3bt-compliant PoE injector or switch, or 65 W via the included adapter. Automatically allocates powerup to 30 W per portwith legacy support for 25 W (802.3at) and 10 W (802.3af).
IEEE 802.3bt/at/af compliance95 W max input (from IEEE 802.3bt-compliant PoE device into PD port)Up to 65 W PoE Power Budget30 W max per port
Five auto-sensing 10/100/1000 Mbps ports feed a 10 Gbps switch fabric. Auto-MDIX negates crossover cables; jumbo frames up to 9 KB maximize throughput.
10 Gbps backplaneStore-and-forward switchingIEEE 802.3x full-duplex flow control
Intellinet Model Number561808IEEE Standards802.3, 802.3u, 802.3ab, 802.3af/at/bt, 802.3xPorts Five RJ45 auto-sensing Gigabit (PoE on four)Backplane10 Gbps switch fabricMAC Table2,048 entriesBuffer Memory1,024 kBPoE Budget65 W via adapter or 802.3bt; 25 W (at), 10 W (af)Adapter Input100240 VAC, 5060 Hz, 2 AAdapter Output 54.5 V DC, 1.32 ADimensions3.66 × 6.61 × 1.26 in.Weight0.88 lbs net; 1.98 lbs grossTemp (Op.)32 °F to 104 °FTemp (Storage)32 °F to 158 °FHumidity1090 % non-condensingCertificationsFCC Class A, CE, RoHS, UKCA, NDAAPackage ContentsPoE-Powered 5-Port Gigabit Switch, power adapter, power cable, four rubber feet, and quick-start guide. Compact PoE Passthrough Switch Flexible PoE Power Input True Gigabit Performance
Delivers data and power over one cableExtends PoE reach from 328 ft. to 656 ft.Up to 30 W per port
Draws up to 95 W from an IEEE 802.3bt-compliant PoE injector or switch, or 65 W via the included adapter. Automatically allocates powerup to 30 W per portwith legacy support for 25 W (802.3at) and 10 W (802.3af).
IEEE 802.3bt/at/af compliance95 W max input (from IEEE 802.3bt-compliant PoE device into PD port)Up to 65 W PoE Power Budget30 W max per port
Five auto-sensing 10/100/1000 Mbps ports feed a 10 Gbps switch fabric. Auto-MDIX negates crossover cables; jumbo frames up to 9 KB maximize throughput.
10 Gbps backplaneStore-and-forward switchingIEEE 802.3x full-duplex flow control
Intellinet Model Number561808IEEE Standards802.3, 802.3u, 802.3ab, 802.3af/at/bt, 802.3xPorts Five RJ45 auto-sensing Gigabit (PoE on four)Backplane10 Gbps switch fabricMAC Table2,048 entriesBuffer Memory1,024 kBPoE Budget65 W via adapter or 802.3bt; 25 W (at), 10 W (af)Adapter Input100240 VAC, 5060 Hz, 2 AAdapter Output 54.5 V DC, 1.32 ADimensions3.66 × 6.61 × 1.26 in.Weight0.88 lbs net; 1.98 lbs grossTemp (Op.)32 °F to 104 °FTemp (Storage)32 °F to 158 °FHumidity1090 % non-condensingCertificationsFCC Class A, CE, RoHS, UKCA, NDAAPackage ContentsPoE-Powered 5-Port Gigabit Switch, power adapter, power cable, four rubber feet, and quick-start guide. Compact PoE Passthrough Switch Flexible PoE Power Input True Gigabit Performance
