PoE++ to power + data for nonPoE devices: Takes an IEEE 802.3bt PoE++ input and separates it into 12 V DC power and a Gigabit Ethernet data connection for equipment that lacks PoE support.
60 W PoE input / 51 W usable DC output: Accepts up to 60 W from a compatible PoE injector or PoE switch (3657 V DC). Provides up to 12 V, 4.25 A (51 W) to the device.

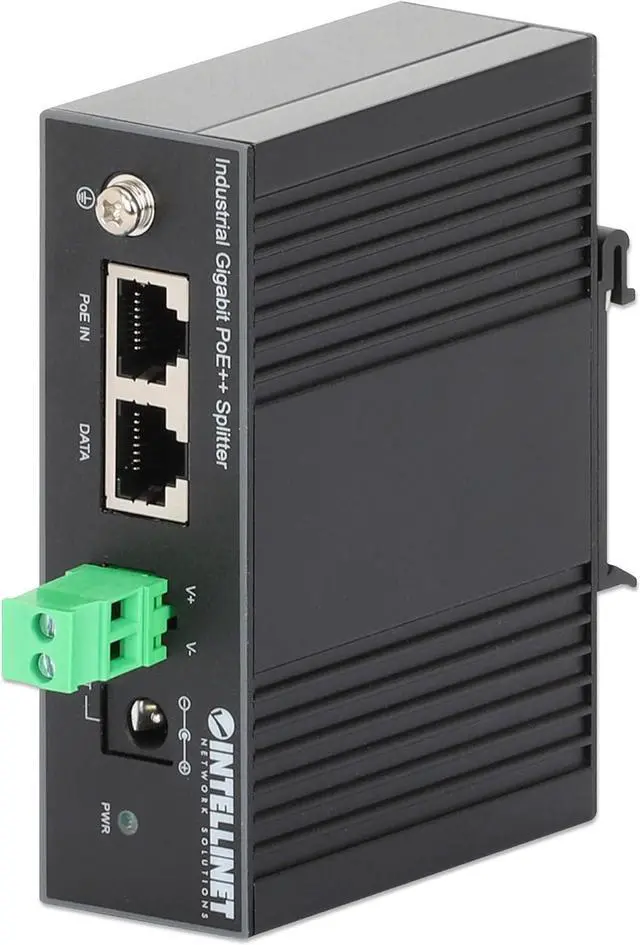

Two DC output options: Delivers 12 V power through either a DC barrel jack or a 2pin terminal block, supporting different field wiring needs (recommended 1224 AWG for terminal block).
Gigabit passthrough networking: One RJ45 PoE input and one RJ45 data output with 10/100/1000 Mbps rates; supports up to 100 m (328 ft.) over Cat5e/Cat6/Cat6a UTP/STP cabling.

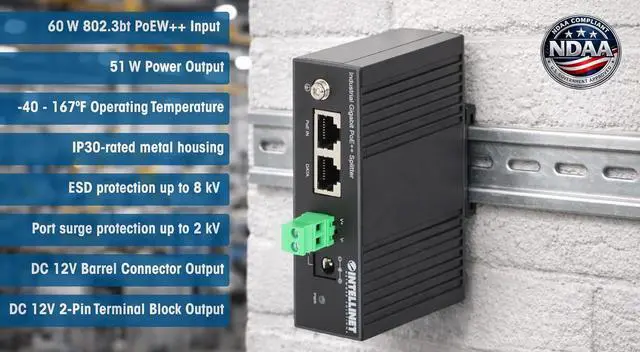

Industrial protection and mounting: IP30 metal housing, -40 to 75°C operating range, DINrail mount option, grounding point, and builtin protections (shortcircuit, overload, highvoltage, ESD up to 8 kV air/6 kV contact, and 2 kV port surge).
