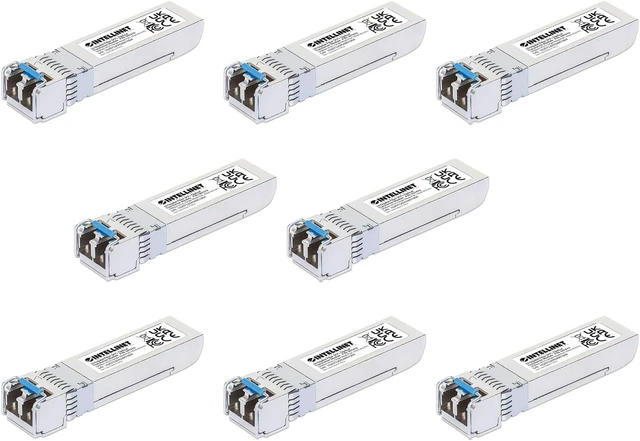

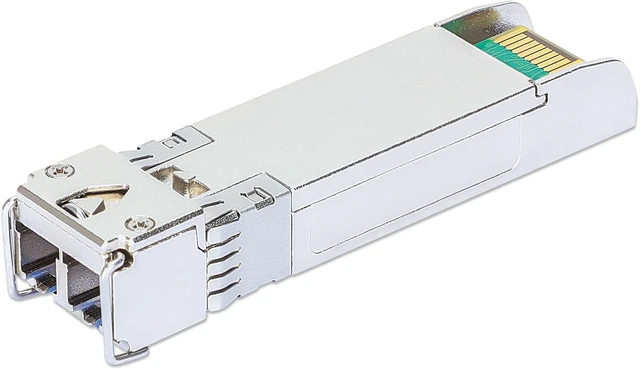

Intellinet 10GBase-LR SFP+ Fiber Transceiver, LC Single-Mode, 8 Pack
- 10G SFP+ transceiver for single-mode fiber, duplex LC, 1310 nm, hot-swappable, DDM support, 6.2 mi. reach | 507479
- 10GBase-LR SFP+ transceiver with duplex LC single-mode fiber port supports 10 Gbps network links for uplinks, switch connections, and other 10 GbE applications.
- Designed for single-mode fiber runs up to 6.2 miles using 9/125 µm cable, with 1310 nm wavelength for long-reach 10 Gigabit Ethernet connections.
- Mini-GBIC SFP+ form factor helps save rack and cabinet space, making it a practical choice for high-density fiber deployments in network rooms and data environments.
- MSA-compliant module works with Intellinet SFP+ equipped switches and other MSA compliant SFP+ ports; vendor ID is set to SFP-10G-LR for Cisco compatibility.
- Hot-pluggable design lets you install or replace the transceiver without rebooting the switch, helping maintain network traffic during module changes.
- Supports digital diagnostics monitoring, also called DDM or DOM, to track optical output and inp
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Intellinet 10GBase-LR SFP+ LC Single-Mode Fiber Transceiver, 8 Pack Designed for 10 Gigabit Ethernet links over single-mode fiber, this SFP+ transceiver supports 10GBase-LR connections at up to 10 km, or 6.2 miles, using 9/125 µm cable. It features a duplex LC port, 1310 nm wavelength, and a standard SFP+ form factor for high-density fiber deployments in switches and other MSA-compliant SFP+ equipment. Hot-pluggable support allows installation or replacement without shutting down the network. A fully metallic housing helps reduce electromagnetic interference, while SFF-8472 digital diagnostics monitoring provides access to operating data including optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. The module supports IEEE 802.3ae and IEEE 802.3z standards, operates on 3.3 V with maximum power consumption of 1.0 W, and is rated for 32 to 158 degrees Fahrenheit in non-condensing humidity from 10 to 85% RH. This listing is for the 8-pack variation.
