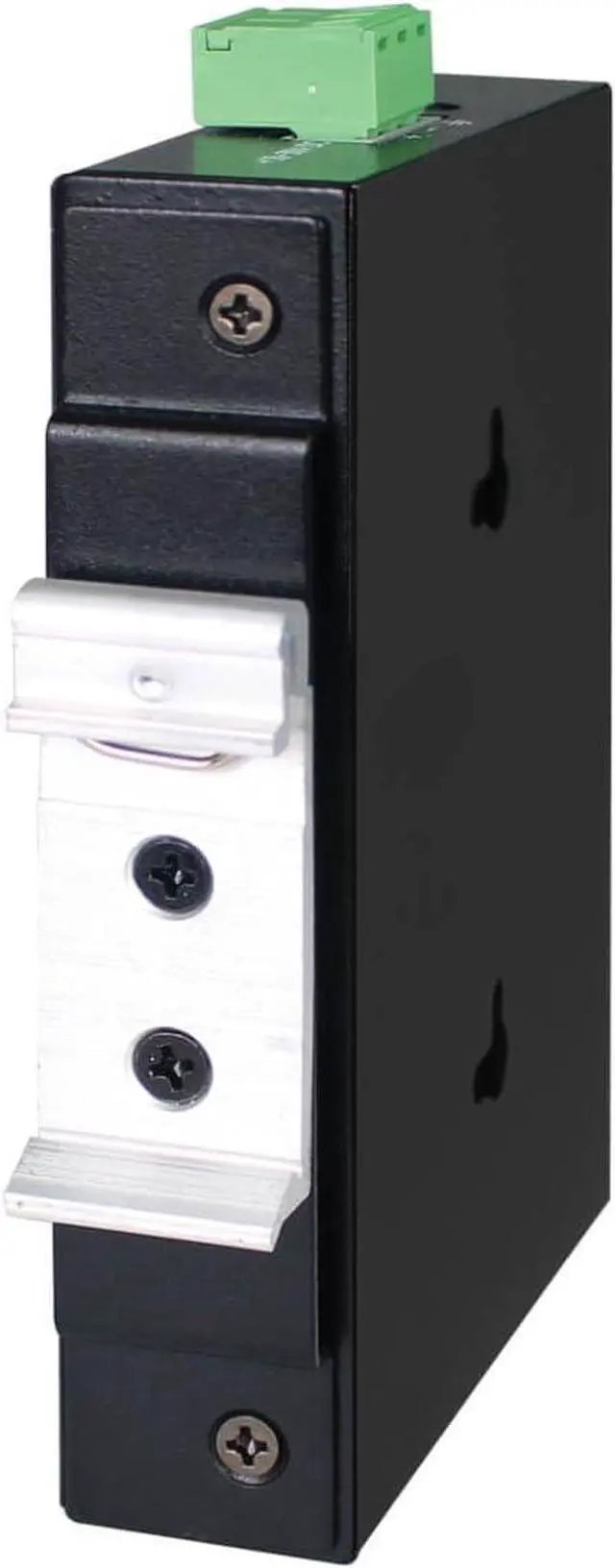

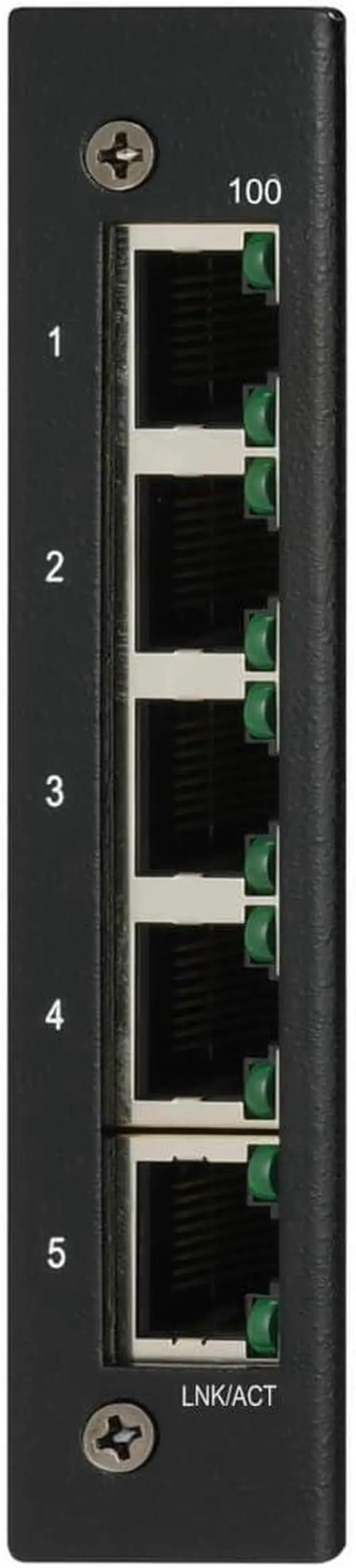

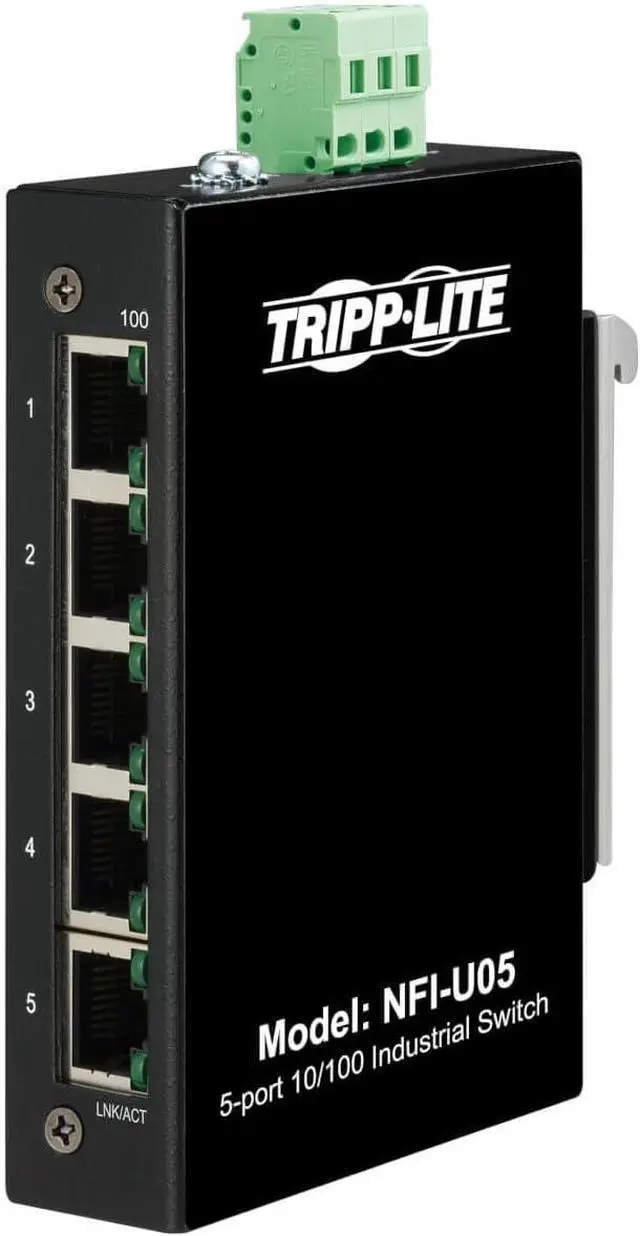

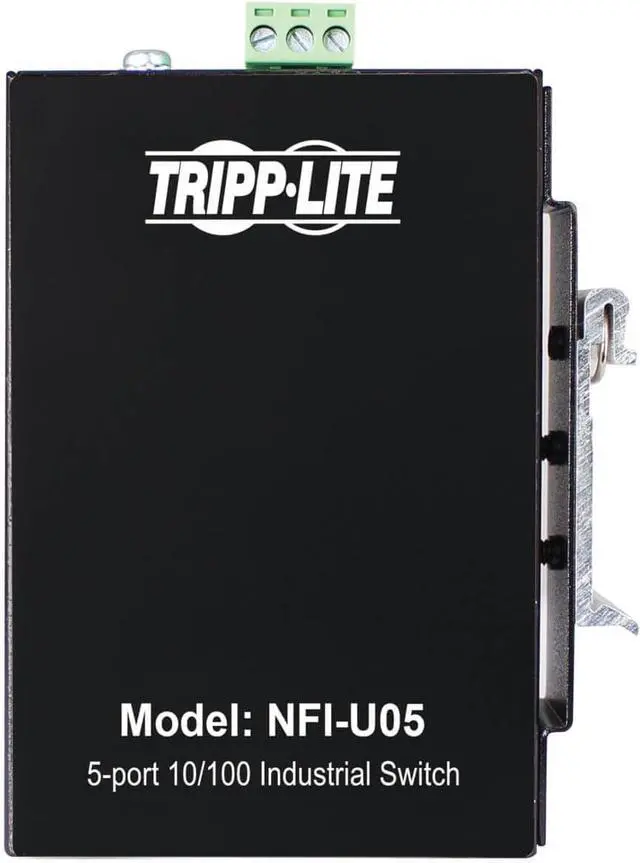

Tripp Lite Industrial 5 Port Ethernet Network Switch 10/100 Mbps -40° to 167°F Temperature Range Unmanaged Splitter TAA Compliant DIN Mount (NFI-U05)

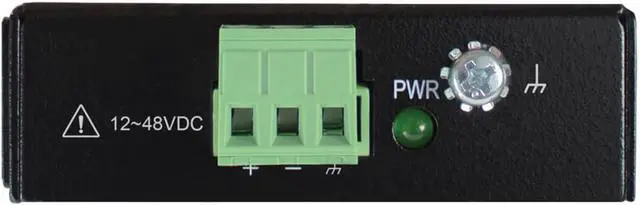

5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN This Tripp Lite network switch connects devices, such as computers, printers and servers, to a local area network (LAN) and allows them to communicate over the network. Five auto-negotiating 10/100 Mbps Ethernet ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. Ruggedized Metal Housing Built to Last in Harsh Environments The NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. You can share large bandwidth-intensive files, such as CAD drawings and videos, improving efficiency and cutting costly downtime. The industrial-grade switch with its rugged high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit. Unmanaged Switch for Plug-and-Play Use Because it is an unmanaged switch, the NFI-U05 does not require configuration before use. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. Flexible Mounting Options The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12-48VDC terminal block supplies power input. Device power must be supplied by SELV circuit. TAA-Compliant for GSA Schedule Purchases The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
