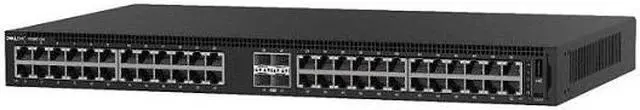

Dell HR40N EMC Networking N1148T Managed Switch

DELL HR40N Emc Networking N1148t-on Switch 48 Ports Managed Rack-mountable.

Key Features:


Device Type: Switch - 48 Ports - Managed - Stackable

Enclosure Type: Rack-mountable 1u

Subtype: Gigabit Ethernet

Ports: 48 X 10/100/1000 + 4 X 10 Gigabit Sfp+

Performance: Switching
Fabric Bandwidth: 176 Gbps, Forwarding Performance: 132 Mpps

Capacity: Mac
Addresses: 16000, Aggregated
Links (dynamic): 144, Lag
Groups: 64, Queues
Per Port: 8, Vlans
Supported: 512, Arp
Entries: 2048, Ndp
Entries: 400, Max
Acl Rules System-wide: 4000, Acl: 100, Maximum Acl Rules Per Interface (ipv4)
Ingress Rules: 1023, Maximum Acl Rules Per Interface (ipv4)
Egress Rules: 1023, Maximum Acl Rules Per Interface (ipv6)
Ingress Rules: 1021, Maximum Acl Rules Per Interface (ipv6)
Egress Rules: 253

Mac Address Table Size: 16000 Entries

Routing Protocol: Igmpv2, Igmp, Igmpv3

Remote Management Protocol: Snmp 2, Snmp, Rmon, Telnet, Http, Tftp, Ssh-2

Encryption Algorithm: Aes, Ssl, Tls 1.0

Authentication Method: Radius, Tacacs+, Ldap

Features: Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support

Compliant Standards: Ieee 802.2, Ieee 802.3, Ieee 802.3 u, Ieee 802.3 z, Ieee 802.1 d, Ieee 802.1 q, Ieee 802.3 ab, Ieee 802.1 p, Ieee 802.3 x, Ieee 802.3 ad (lacp), Ieee 802.1 w, Ieee 802.1 x, Ieee 802.3 ae, Ieee 802.3 ac, Ieee 802.1 s, Ieee 802.1 v, Ansi/tia-1057, Ieee 802.1 ab (lldp), Ieee 802.3 az, Ieee 802.3 ax

Ram: 1 Gb

Flash Memory: 1 Gb

Expansion / Connectivity:

Interfaces: 48 X Gigabit Lan - Rj-45, 4 X 10gbit Lan - Sfp+, 1 X Usb - Type A, 1 X Micro-usb

Power:

Power Device: Internal Power Supply

Installed Quantity: 1

Power Provided: 60 Watt

Power Consumption Operational: 30.18 Watt
