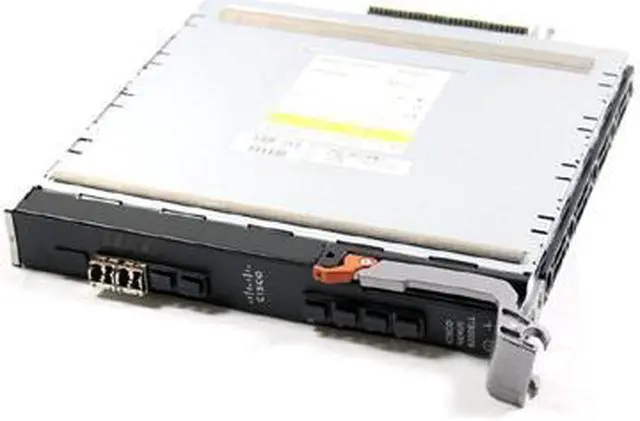

Dell 9MJ9H Cisco B22 Blade Fabric Extender 8X10G M1000E

DELL 9MJ9H Cisco Nexus B22DELL 10gbe 8 Port Sfp+ Fabric Extender

Specification:
The Cisco Nexus® B22 Blade Fabric Extender Is Designed To Simplify Data Center Server Access Architecture And Operations In Environments In Which Third-party Blade Servers Are Used. The Cisco Nexus B22, Together With The Cisco Nexus 2000 Series Fabric Extenders, Cisco® Adapter Fabric Extender (adapter Fex), And Cisco Data Center Virtual Machine Fabric Extender (vm-fex), Is Part Of The Cisco Fabric Extender (fex) Portfolio, Which Provides A Highly Scalable Unified Server Access Platform Supporting 100 Megabit To 10 Gigabit Ethernet Over Fiber And Copper, Rack And Blade Form Factors, And Ieee Data Center Bridging (dcb) Protocol. The Platform Offers Excellent Support For The Integration Of Third-party Blade Chassis Into A Cisco Unified Fabric.

The Cisco Nexus B22 Blade Fabric Extender Behaves Like A Remote Line Card For A Parent Cisco Nexus Switch, Together Forming A Distributed Modular System. This Architecture Simplifies Data Center Access Operations And Architecture By Combining The Management Simplicity Of A Single High-density Access Switch With The Cabling Simplicity Of Integrated Blade Switches And Top-of-rack (tor) Access Switches.

Supported Blade Chassis
DELL Poweredge M1000e Blade Enclosure

Host Interfaces: 16
Interface Type: 1/10gbase-kr Internal Midplane Connections

Fabric Interfaces: 8
Fabric Interface Type: Fiber, Copper

Fabric Speed:
80 Gbps In Each Direction (160-gbps Full Duplex)

Performance:
Hardware Forwarding At 400 Gbps Or 297 Mpps

Supported Cisco Nexus Parent Switch And Version
-cisco Nexus 5500 Platforms Running Cisco Nx-os Software Release 5.2 (1) n1 (3) And Later
-cisco Nexus 6000 Series Switches Running Cisco Nx-os Software Release 6.0 And Later

Dimensions
(l X W X D): 10.73 X 10.04 X 1.16 In.

Weight
4.4 Lb ( 1.9 Kg)
