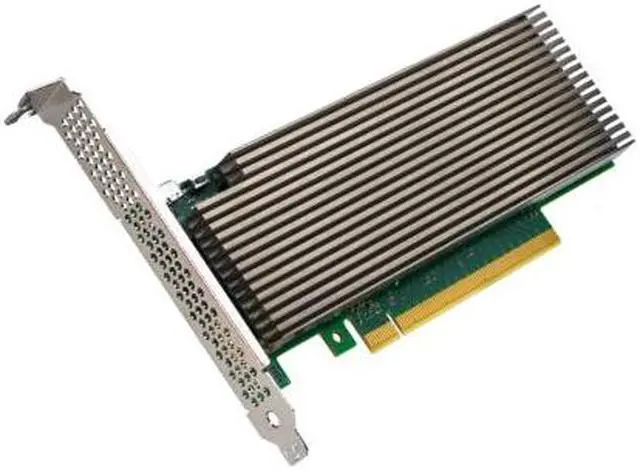

DELL D3X73 Intel vRAN Accelerator ACC100 PCIe Adapter

DELL D3X73 Intel Vran Accelerator Acc100 Pcie Adapter

Total

Specifications

:

Adapter Features:

Bus Type/bus Width: Pcie 3.0 X16

Accelerator: Intel Vran Dedicated Accelerator Acc100

Bracket: Low Profile And Full Height

Dimension: 6.67 In X 2.70 In (169 Mm X 69 Mm)

Fec Acceleration Features:

Ldpc Fec Processing For 3gpp 5g:

⢠Ldpc Encoder/decoder
⢠Code Block Crc Generation/checking
⢠Rate Matching/de-matching
⢠Harq Buffer Management

Turbo Fec Processing For 3gpp 4g:

⢠Turbo Encoder/decoder
⢠Code Block Crc Generation/checking
⢠Rate Matching/de-matching

Load Balancing Supported By The Hardware Queue Manager (qmgr): Arbitrates Uplink And Downlink Block Requests Based On Bandwidth Allocation
and Priority.

Manageability:

Smbus: Operates At Up To 1mbps

pldm Over Mctp Over Smbus: Supports Pldm 2.1

⢠Voltage Sensors - All Primary And Secondary Adapter Voltages

⢠Temperature Sensors - Adapter, Ddr, And Bracket Ambient

⢠Power Sensor - Overall Board Power

⢠Warning/fatal Thresholds - Can Be Programmed

Hardware-based Emergency Shutdown: Shuts Down Controller When Card Is Over Temperature Or Over Voltage.

Power Consumption:

power 53w

Thermals And Airflow:

55 °c - 550 Lfm

61 °c - 650 Lfm

Supported Operating Systems And Software:

⢠Interface Through The Dpdk Bbdev Library And Apis
⢠Support In Flexran Software Reference Architecture
⢠Linux Os Supported
